clips retaining wires to fuel pump and flow sensor

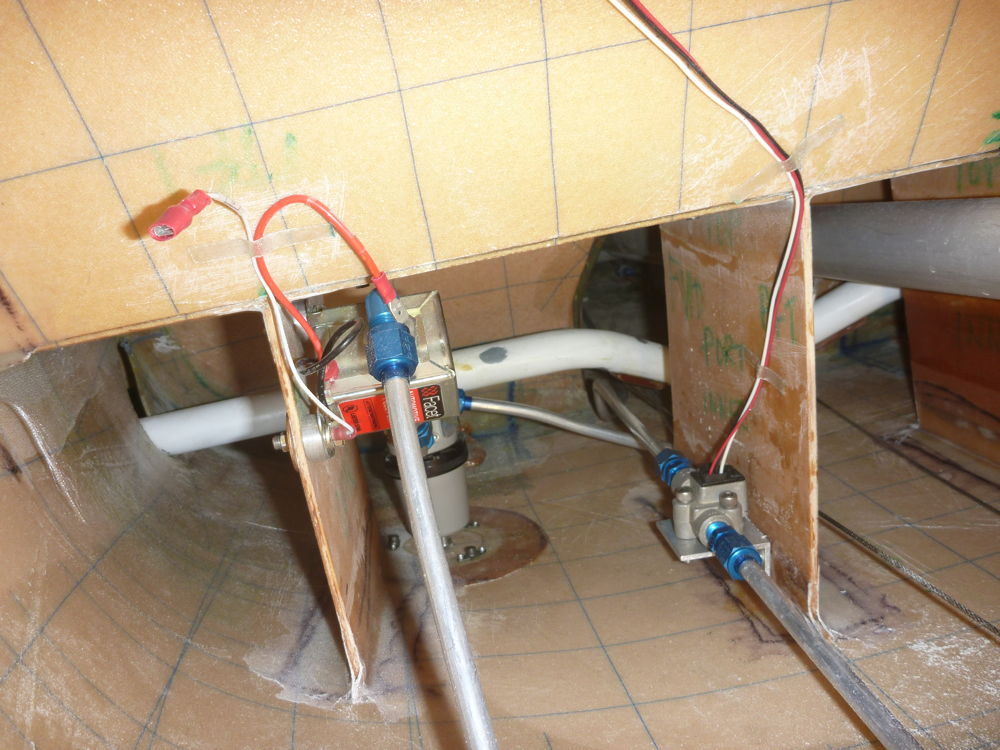

wire clips behind baggage bay

wire clips behind baggage bay: 2016-02-22 Panasonic DMC-FT1

The wires from the fuel pump and the fuel flow sensor have been restrained by small clips epoxied onto the back of the baggage bay bulkhead and one of the supporting ribs. I made the clips by draping a layup over a small rod and weighing it down each side, thus making a U-section with flat flanges. Once cured the layup was cut into short lengths.
