fuel hose with clip in tunnel

fuel hose clip under tunnel

fuel hose clip under tunnel: 2016-02-26 Panasonic DMC-FT1

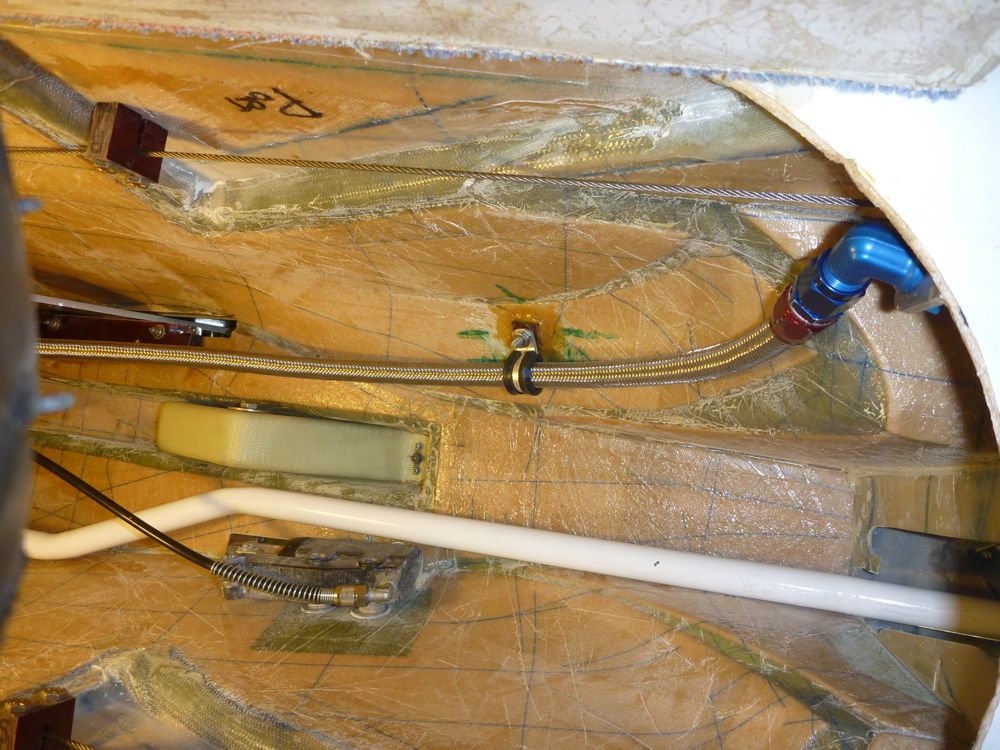

The stainless steel braided flexible fuel hose in the tunnel, showing (at right) the elbow connecting it to the rigid aluminium pipe from the fuel flow sensor and (centre) the first securing clip mounted on a stud bonded to the underside of the tunnel.
