bonding studs to underside of tunnel
|
|
bonding studs to underside of tunnel |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
bonding studs under tunnel: 2016-02-26 Panasonic DMC-FT1

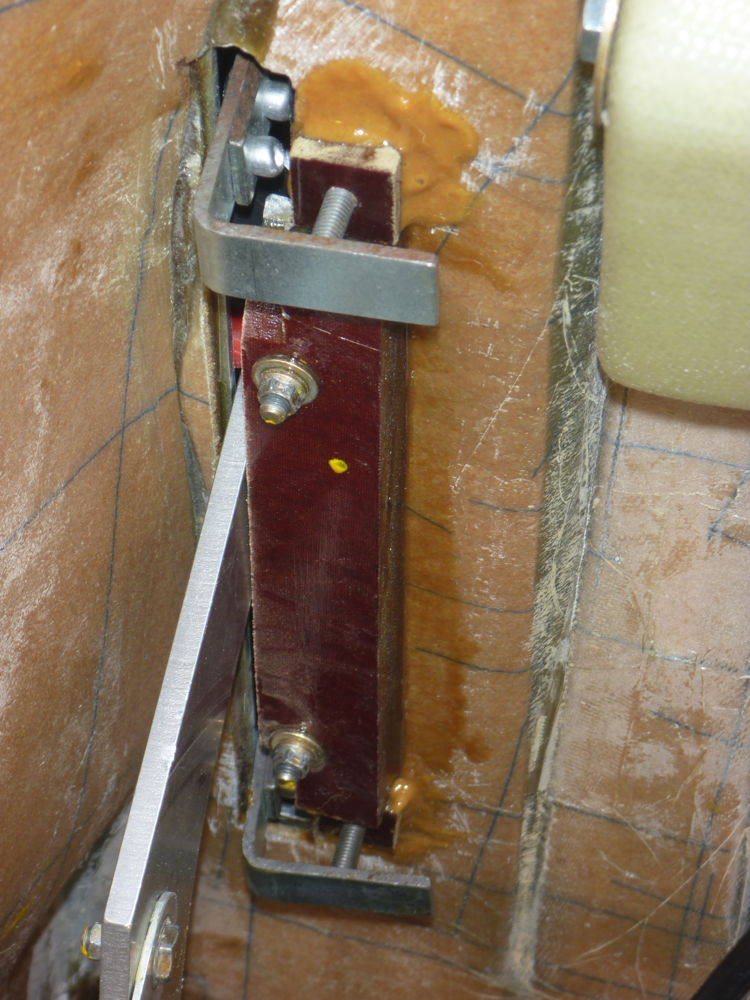

Bonding studs to the underside of the tunnel for mounting hose clips. Each stud is made from a stainless-steel countersunk screw embedded in a small plate of SRBF (Tufnol). Small G-cramps slipped through the retract lever slot are holding them in place while the Redux (Araldite 420) cures.
bonding studs under tunnel: 2016-02-26 Panasonic DMC-FT1

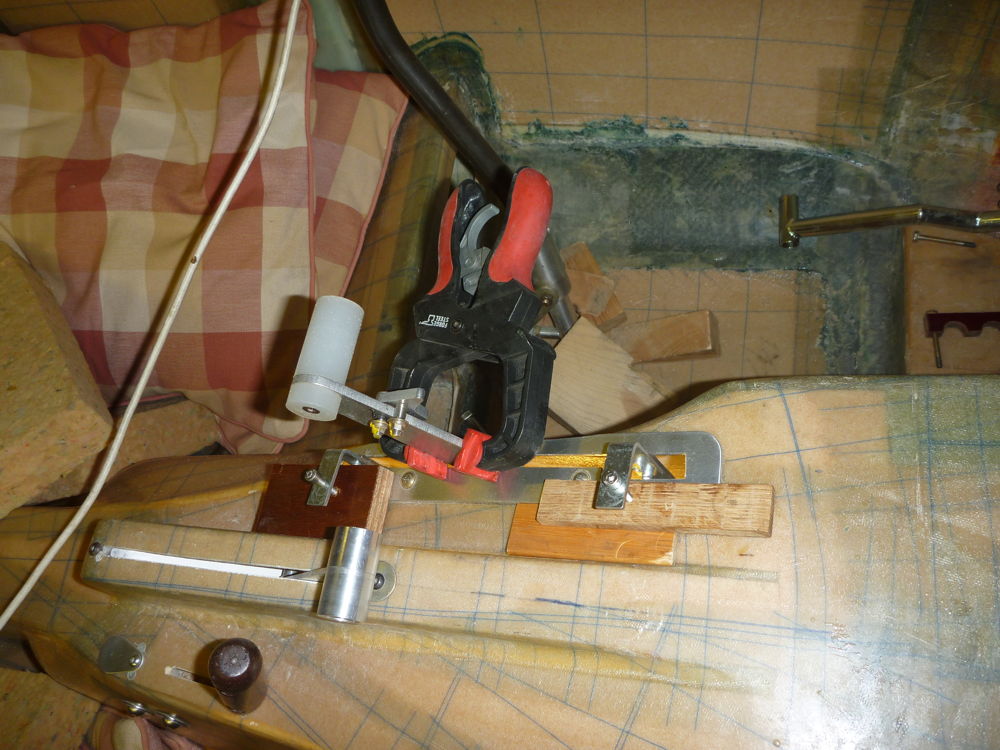

The clamping arrangements for bonding studs to the underside of the tunnel. A small home-made G-cramp is slipped through each end of the retract lever slot and pieces of wood protect the lever guide and tunnel from damage by the clamping screw. The retract lever is clamped in the middle of the slot to discourage it from getting near the bonding areas.
