layup on aft face of baggage bay bulkhead with peel-ply
|
|
layup on aft face of baggage bay bulkhead with peel-ply |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
baggage bay aft face layup: 2016-02-04 Panasonic DMC-FT1

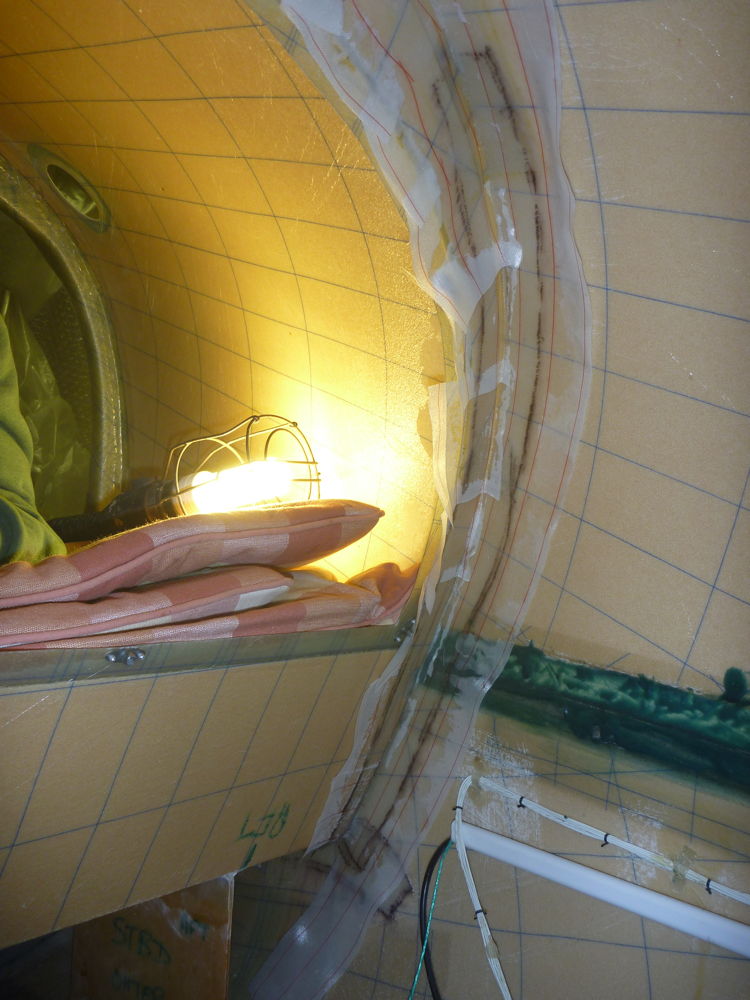

The starboard section of layup on the aft face of the baggage bay bulkhead, with peel-ply applied. The transponder wire bundle and the comms antenna coax cable are folded aftwards out of the way. Visible at left is part of the pile of cushions on the baggage shelf on which I lay to make this layup.
baggage bay aft face layup: 2016-02-04 Panasonic DMC-FT1

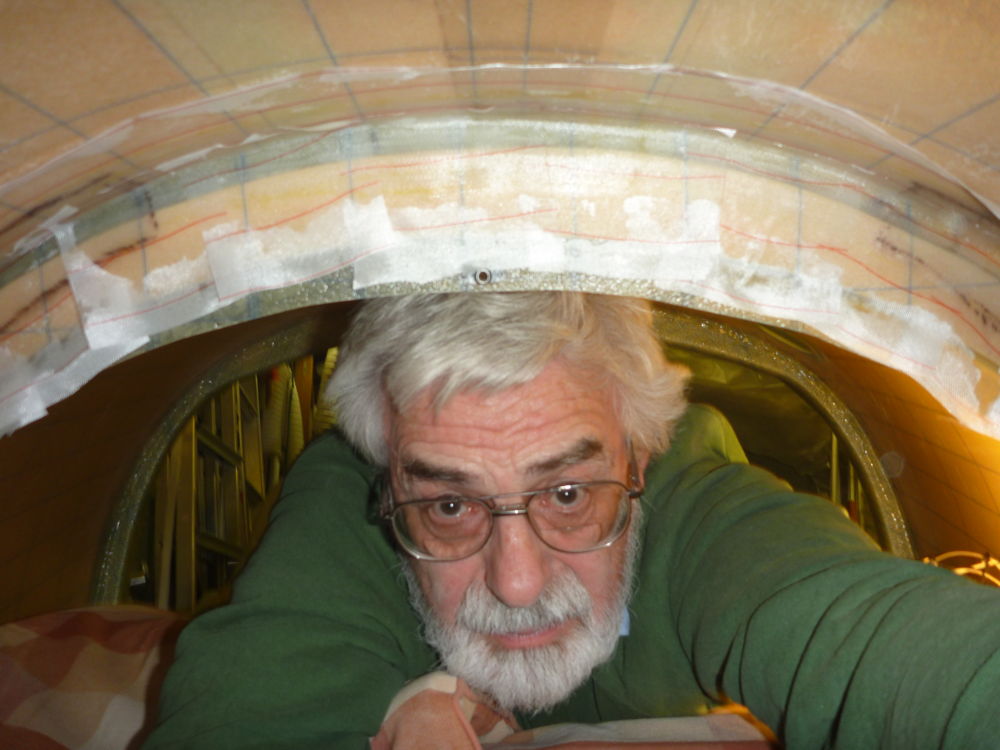

A slightly unusual selfie! The top section of layup on the aft face of the baggage bay bulkhead, with peel-ply applied. The peel-ply on the fuselage inner skin is all one long piece, whereas that on the aft face of the bulkhead is applied in many small pieces to accommodate the compound curve at the junction.
