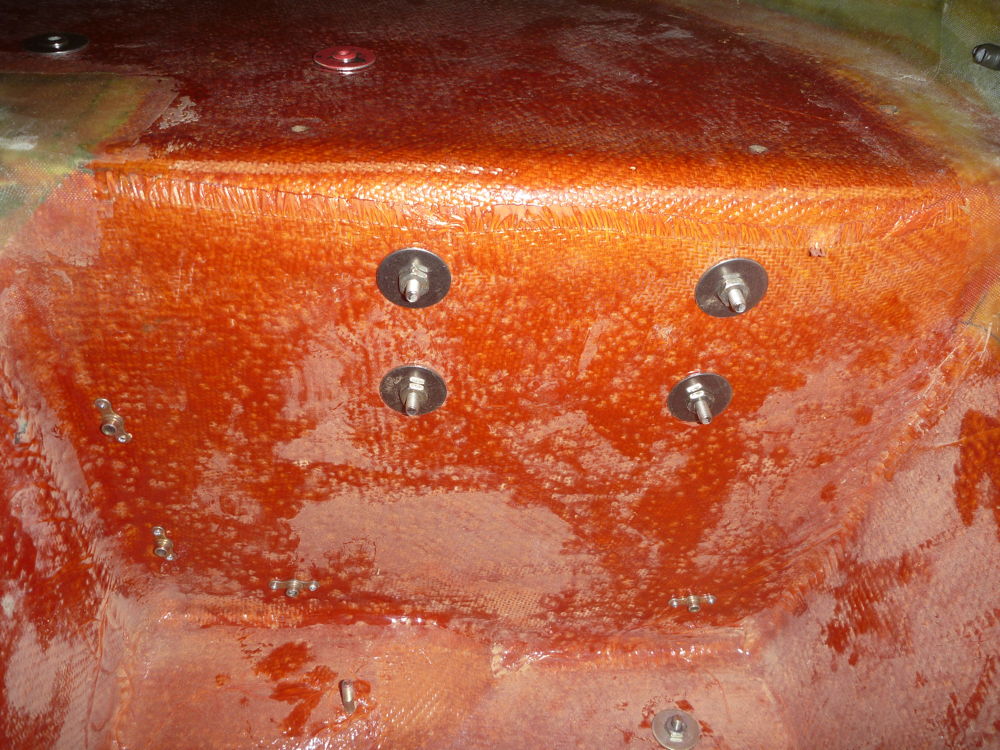

anchor nuts for starboard baffle: 2018-11-17 Panasonic DMC-FT1
Looking up inside the starboard footwell. The 4 large screws and nuts secure the battery box. Lower in the picture, around the forward and inboard edges of the footwell, are 4 anchor nuts for fixing the starboard rear baffle, and the starboard side of the aft baffle. Near the bottom of the picture, on the forward face of the footwell, are 2 of the screws holding the oil tank bracket.

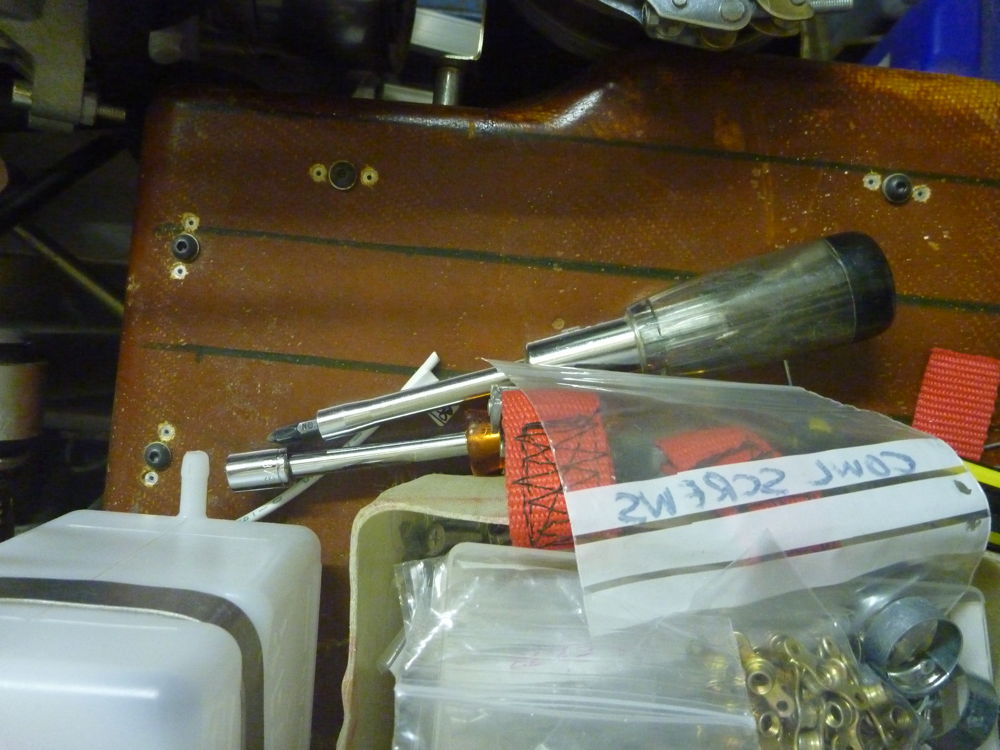

anchor nuts for starboard baffle: 2018-11-17 Panasonic DMC-FT1
The top of the starboard footwell, showing the 4 temporary screws holding anchor nuts in place while riveting. Along the forward edge of the footwell, at the top of the picture, are the 2 for the starboard rear baffle. At the left side of the picture, along the inboard edge of the footwell, are those for the starboard side of the aft baffle. At the bottom of the picture are the water expansion bottle and the battery box (full of odds and ends).
