joining baffle parts

3 pictures on this page - scroll down to see the rest

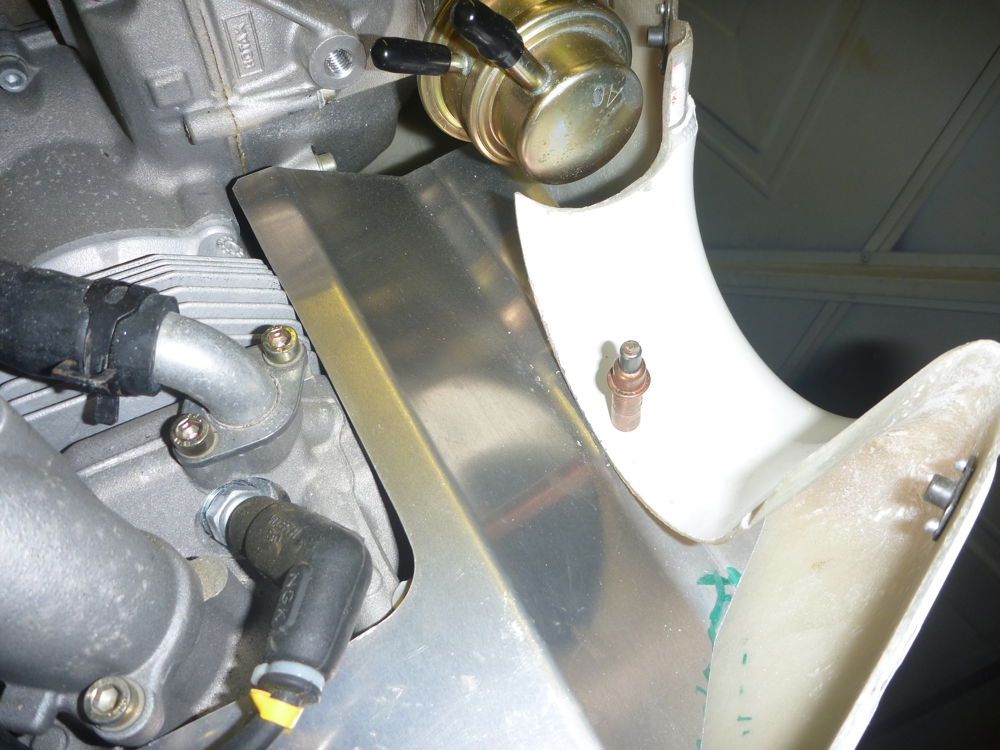

fitting baffle to cowl

fitting baffle to cowl: 2018-11-26 Panasonic DMC-FT1

The starboard front baffle temporarily secured to the cowl lip with a cleco.

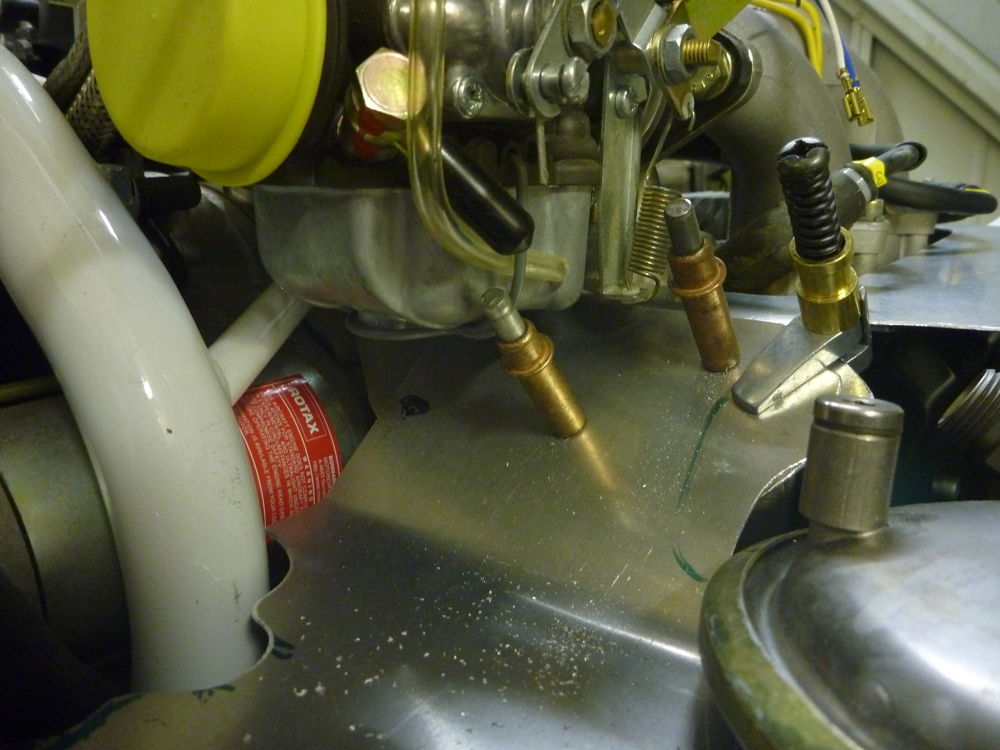

joining starboard baffle parts

joining starboard baffle parts: 2018-11-26 Panasonic DMC-FT1

The starboard rear baffle is fixed to the footwell with temporary short screws, and the forward end of the starboard front baffle is cleco'd to the cowl lip. The overlap joint between the 2 parts is held in position with a cleco clamp while fixing holes are drilled and clecos inserted. A 3rd possible hole position is marked at the inboard edge of the overlap, but I couldn't get a drill to it in-situ.

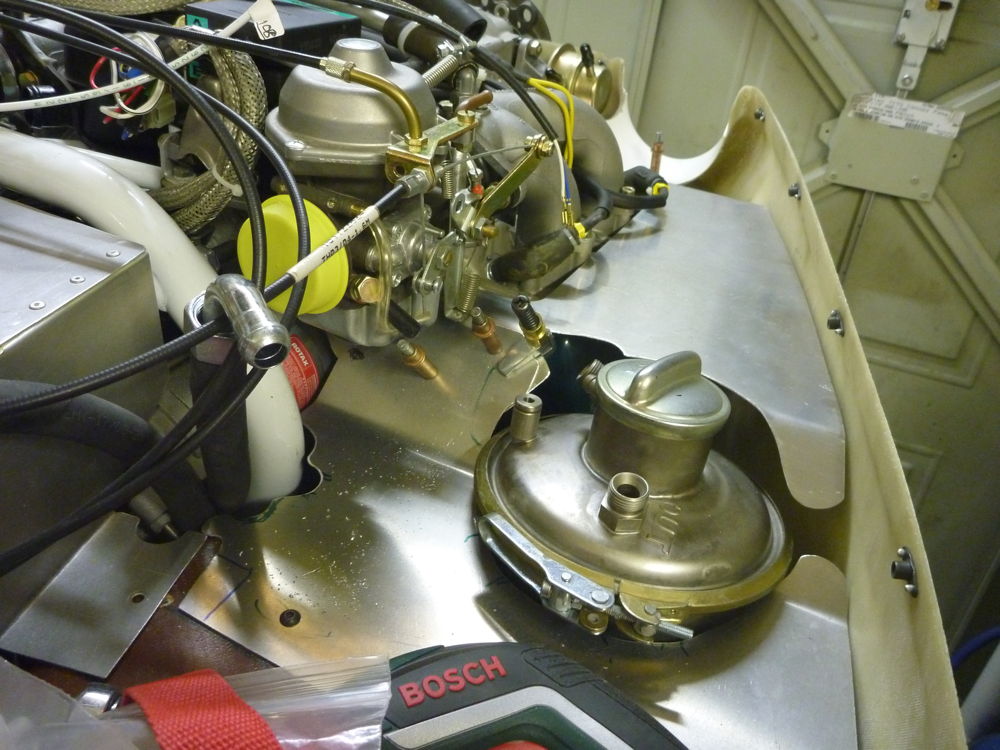

joining starboard baffle parts

joining starboard baffle parts: 2018-11-26 Panasonic DMC-FT1

The starboard rear baffle is fixed to the footwell with temporary short screws, and the forward end of the starboard front baffle is cleco'd to the cowl lip. The overlap joint between the 2 parts is held in position with a cleco clamp while fixing holes are drilled and clecos inserted. A 3rd possible hole position is marked at the inboard edge of the overlap, but I couldn't get a drill to it in-situ.
