Wooden block for rudder hinge vee: 2007-08-18.
Nikon Coolpix 8400.
A piece of mahogany bandsawn and sanded to the profile of the vee between the rudder hinge flange and the leading edge.

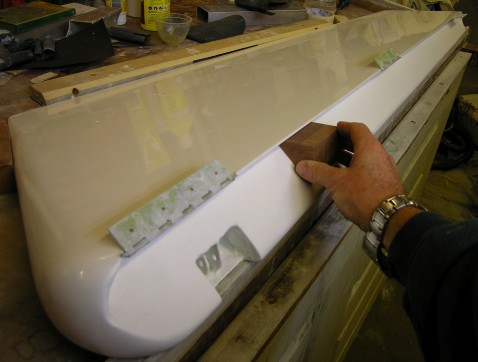

Wooden block for rudder hinge vee: 2007-08-20.
Nikon Coolpix 8400.
This shows the fit of the wooden block for rubbing-down the vee between the rudder hinge flange and the leading edge.
