Wing repair completed

2 pictures on this page - scroll down to see the rest


wing repair

wing repair: 2009-10-27

Nikon Coolpix 8400

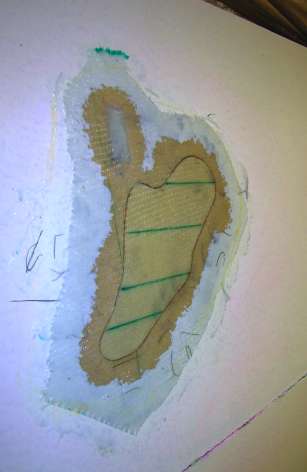

The outside of the wing repair with the brown foam in place and the BID laid up over it. The foam was applied in sections cut spanwise so that it would better conform to the airfoil shape. The small area at top left did not need foam, it was just filled with flox as the damage there did not reach to the inner skin.


wing repair peel-plied

wing repair peel-plied: 2009-10-27

Nikon Coolpix 8400

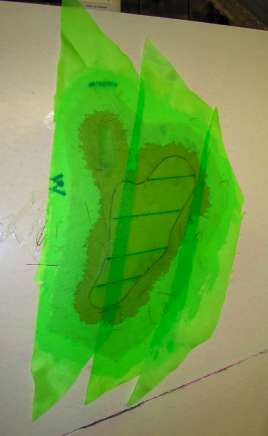

Peel-ply applied onto the wing repair.
