test fitting panel to instrument module: 2010-01-11 NIKON E8400

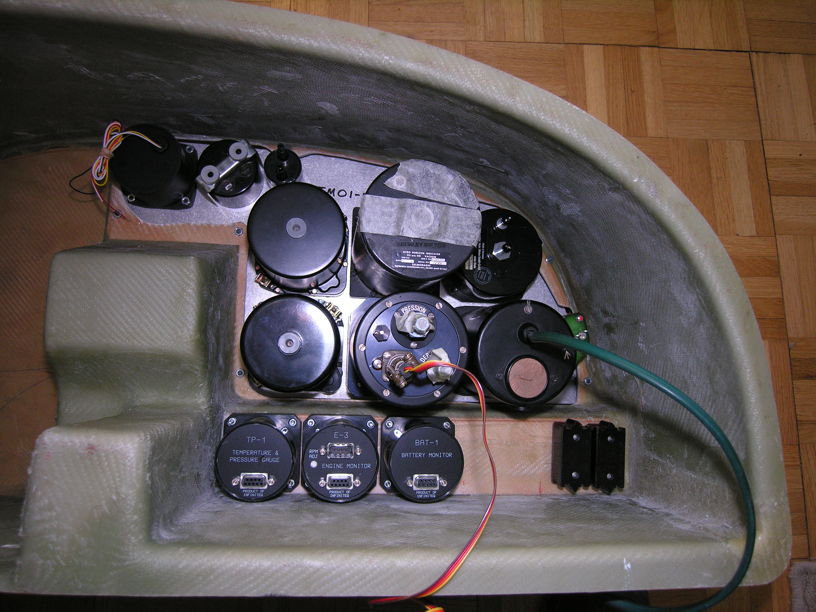

The F14 instrument module prepared for a trial fitting of the pre-cut aluminium instrument panel (factory mod 63).
test fitting panel to instrument module: 2010-01-12 NIKON E8400

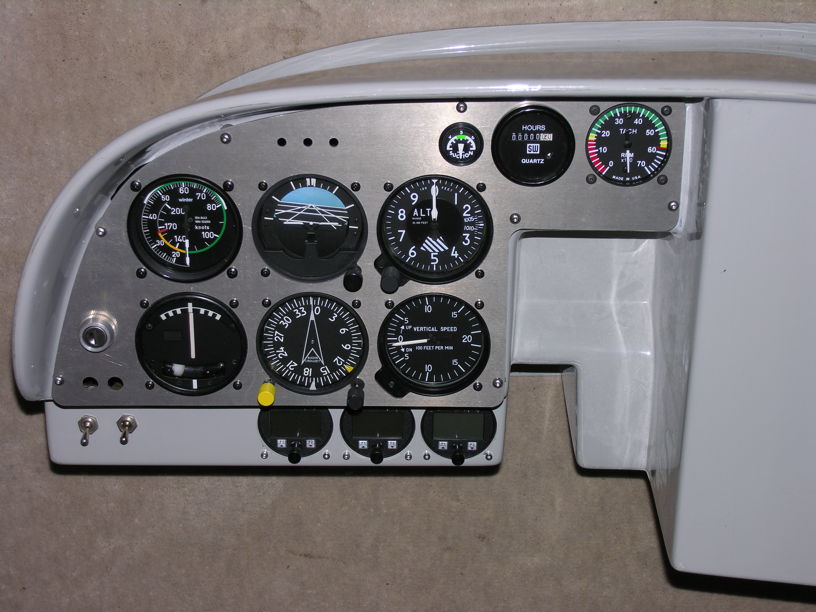

The factory mod 63 pre-cut aluminium instrument panel populated with instruments and trial fitted to the F14 instrument module. The master switches and MGL instruments have also been fitted to the sub-panel.
test fitting panel to instrument module: 2010-01-12 NIKON E8400
The factory mod 63 pre-cut aluminium instrument panel populated with instruments and trial fitted to the F14 instrument module - rear view. The master switches and MGL instruments have also been fitted to the sub-panel.
test fitting panel to instrument module: 2010-01-12 NIKON E8400

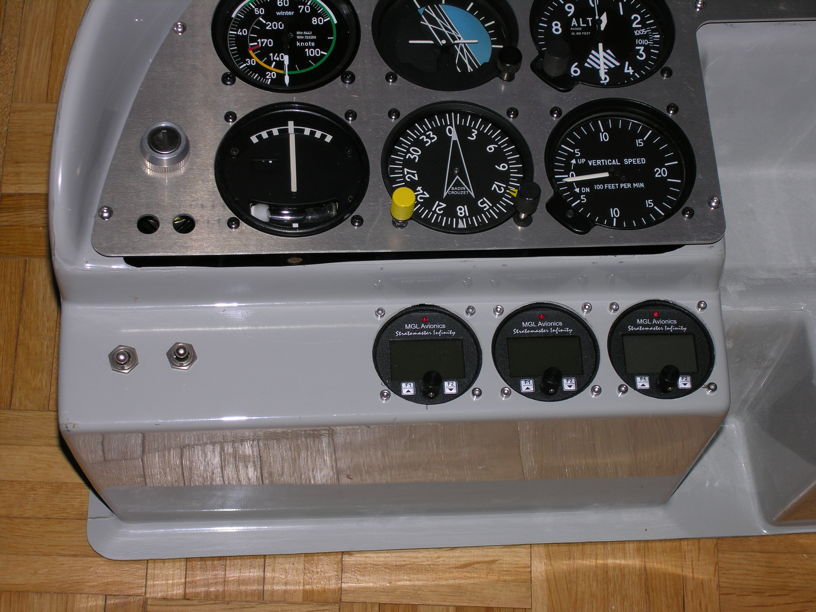

The master switches and MGL instruments trial fitted to the F14 instrument module sub-panel.
