Fuel level sensor tee-piece

Tee-piece for fuel level sensor

Tee-piece for fuel level sensor: 2010-05-20

Nikon Coolpix 8400

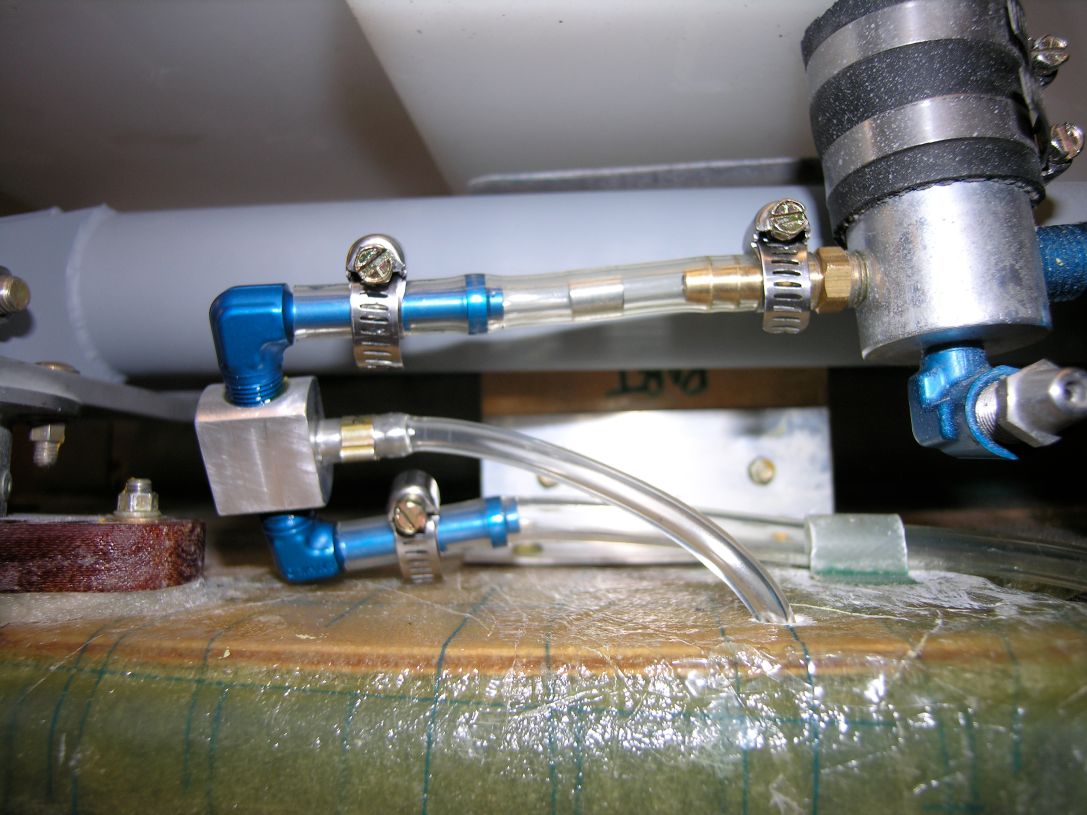

This is the tee-piece which provides a tap off the sight-gauge tubing for the fuel level sensor. I machined the tee-piece out of a length of aluminium bar. The larger-bore polyurethane tubing is the TU23RM supplied in the kit by Europa for the sight gauge, and each end is secured with CLIP000 from the kit. Note the restrictor inserted in the section of tube immediately adjacent to the fuel tank connexion. The smaller tubing going off to the sensor is from LAS Aerospace and is secured with an Eliza Tinsley clip from B&Q.
