Wing pin fitting

2 pictures on this page - scroll down to see the rest

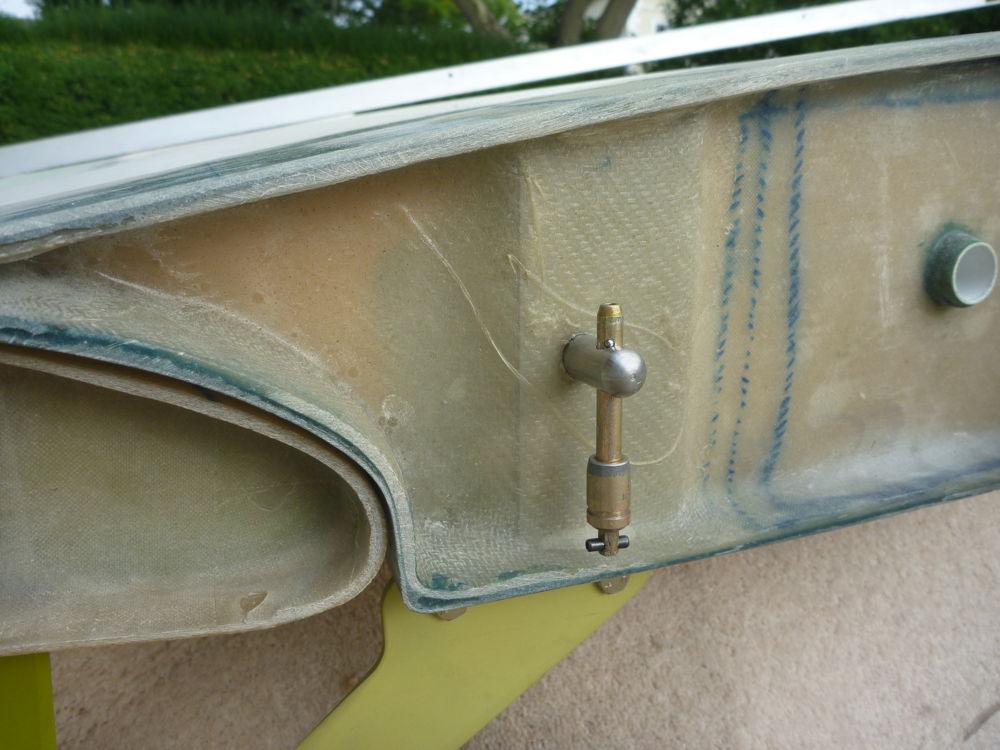

port flap pin

port flap pin: 2014-09-11

Lumix DMC-FT1

The pin in the port flap root that is driven by the retract mechanism.

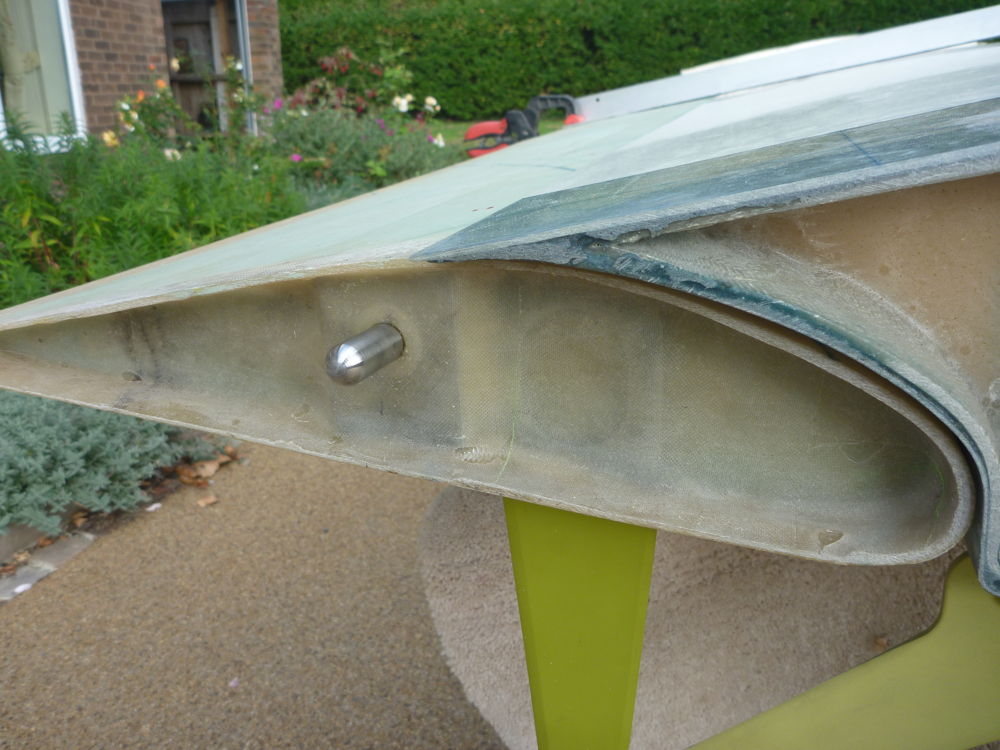

port wing aft pin

port wing aft pin: 2014-09-11

Lumix DMC-FT1

The aft wing pin, with pip-pin inserted to confirm correct orientation.
