FL22 starboard alignment

2 pictures on this page - scroll down to see the rest


starboard flap pin

starboard flap pin: 2014-09-15

Lumix DMC-FT1

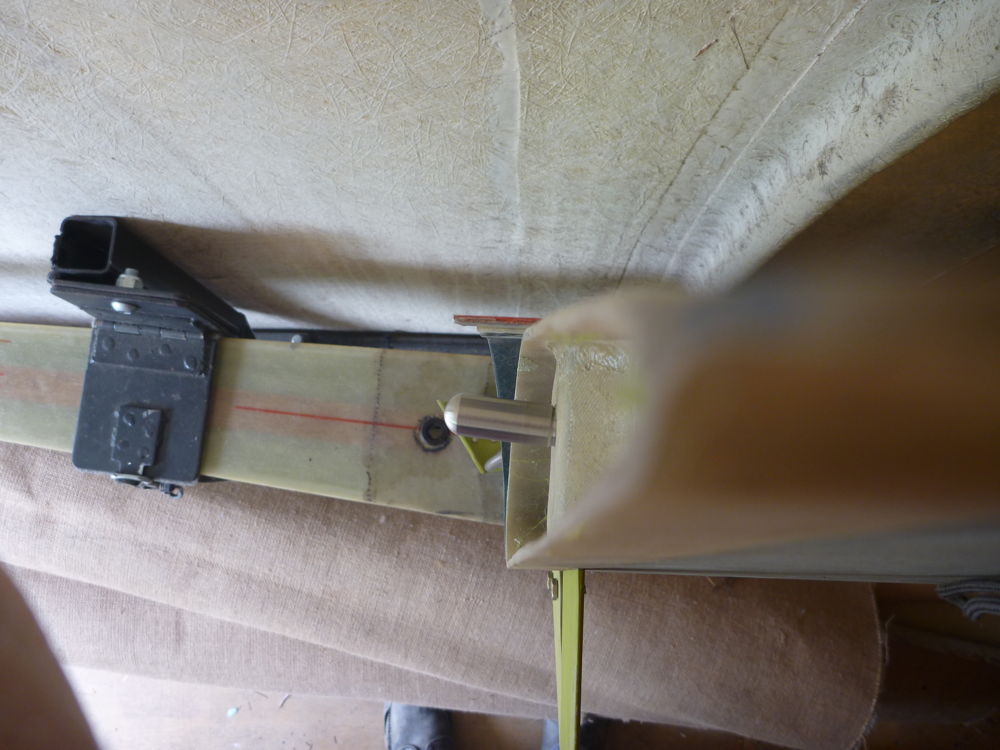

The starboard flap pin viewed from underneath after re-tapping the hole, showing now correct alignment with the straightedge on top of the flap.


starboard flap pin

starboard flap pin: 2014-09-15

Lumix DMC-FT1

The starboard flap pin viewed from aft after re-tapping the hole, showing now correct alignment with the line between the spar pin holes.
