port wing on table: 2014-09-11
Lumix DMC-FT1

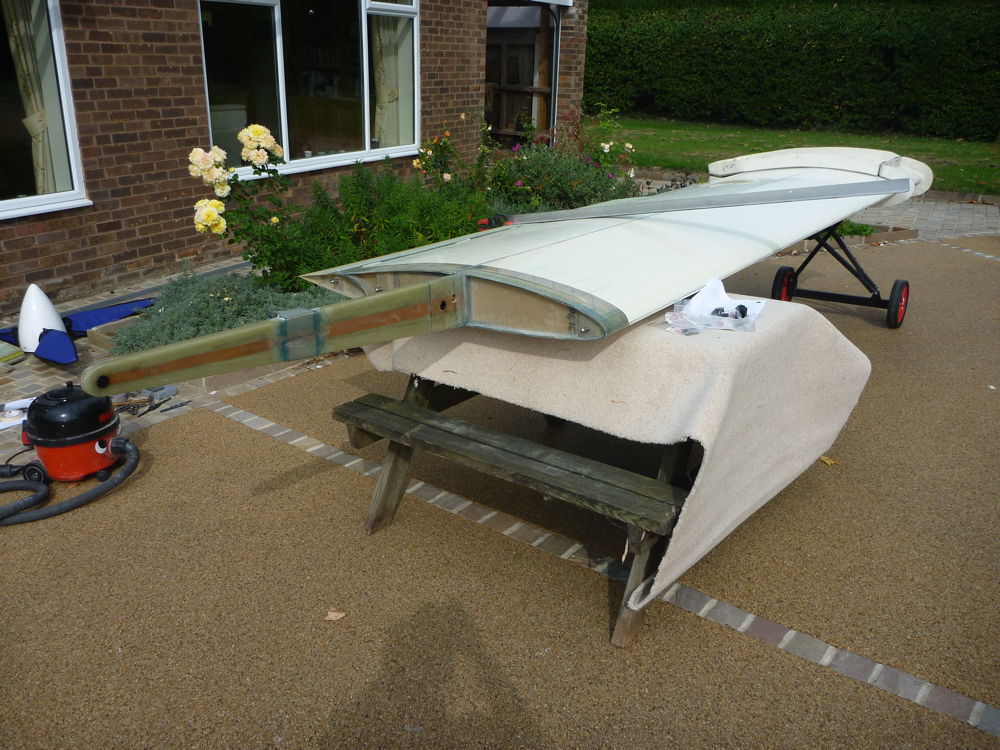

Port wing root supported on a trestle table, with the tip in the rigging dolly. A piece of aluminium angle is clamped to the flap to keep it in the retracted position. The 3 pins (1 in the flap, 2 in the wing) have just been inserted, and the aft wing pin has the pip-pin in it to check correct orientation.
port wing on table: 2014-09-11
Lumix DMC-FT1

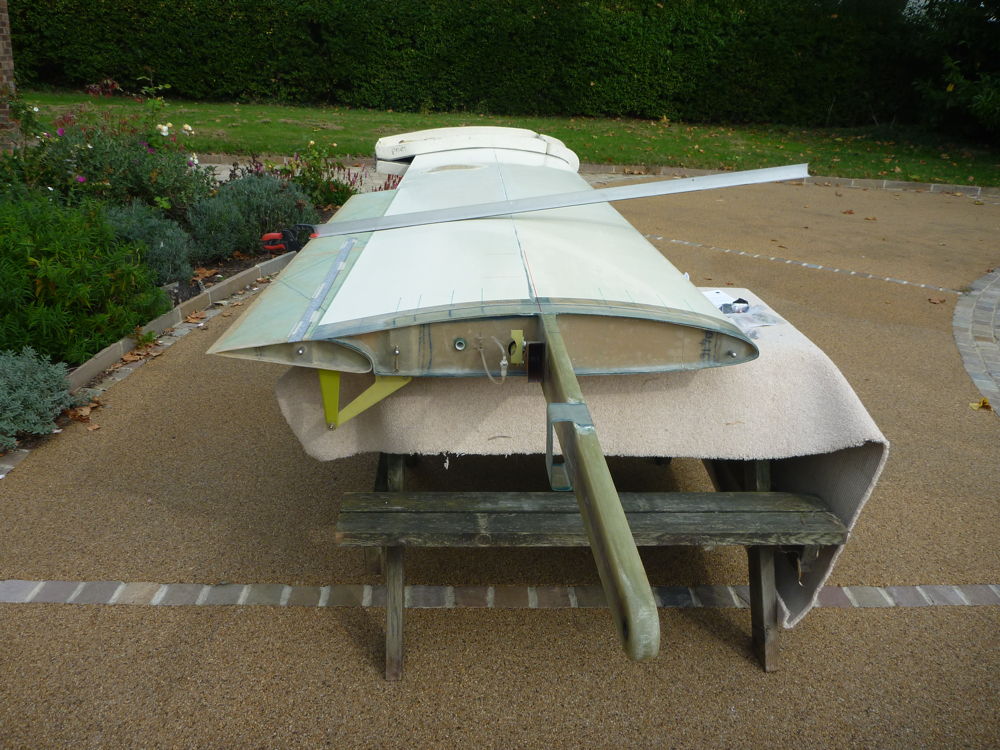

Port wing root supported on a trestle table, with the tip in the rigging dolly. These wing dollies are part of the one-man rigging kit supplied by Roger Huttlestone with the trailer. They allow the wing to pivot about the spar into the vertical plane for storage in the trailer.
