Instrument module brackets.

instrument module brackets

instrument module brackets: 2014-09-09

Lumix DMC-FT1

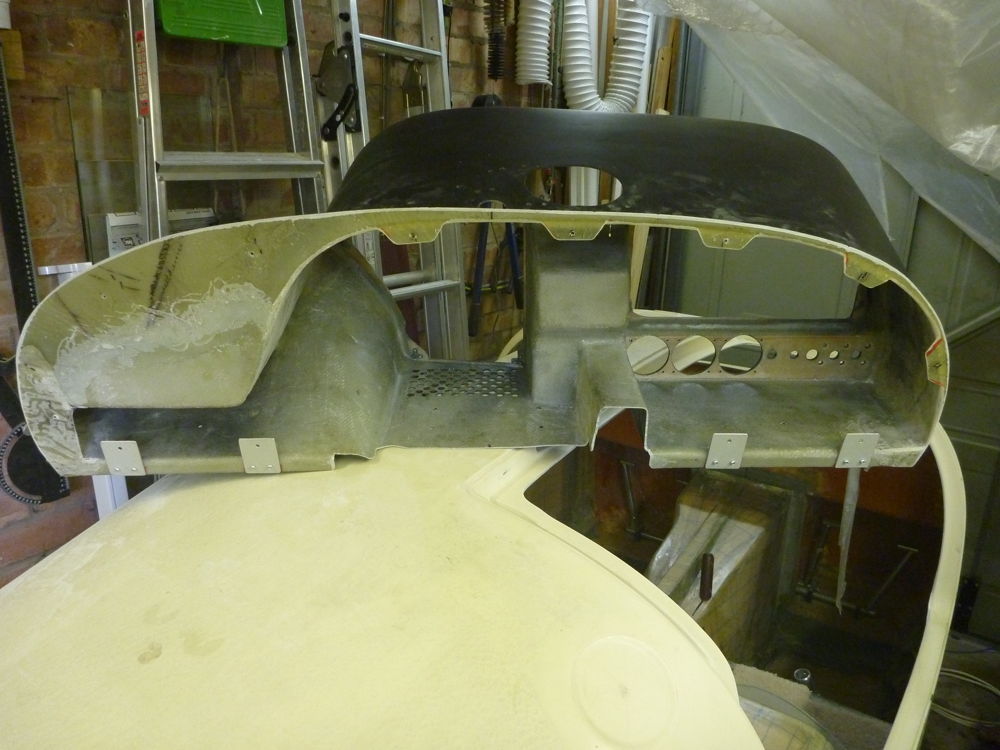

Four aluminium brackets riveted to the lower flange of the instrument module, to provide locations for the fixings to the firewall. Also visible here are the composite brackets along the underside of the top edge. These were needed because the top flange had to be trimmed down quite a lot to fit, and didn't leave enough room for fixings.
