trial setting of wing incidence 2

2 pictures on this page - scroll down to see the rest


checking wing incidence

checking wing incidence: 2014-11-20

Lumix DMC-FT1

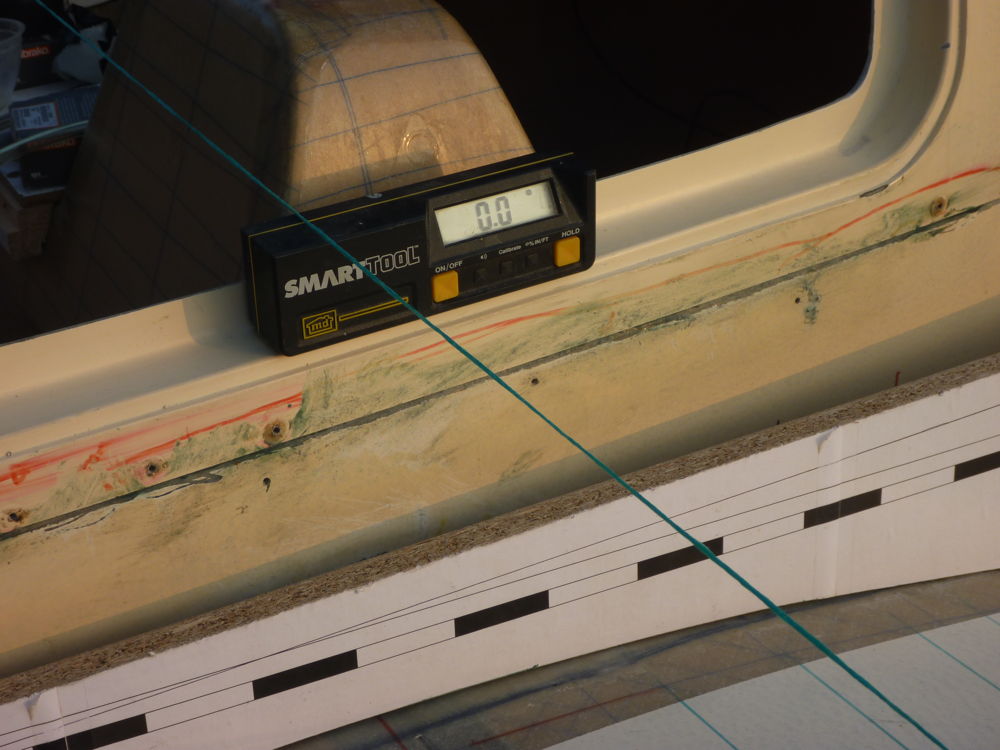

Digital inclinometer on the port door sill, showing level. This is the second check, after adding SRBF spar guides to the bottom of the spar holes in the fuselage sides, to keep the spars close to the seatback while rigging.


checking wing incidence

checking wing incidence: 2014-11-20

Lumix DMC-FT1

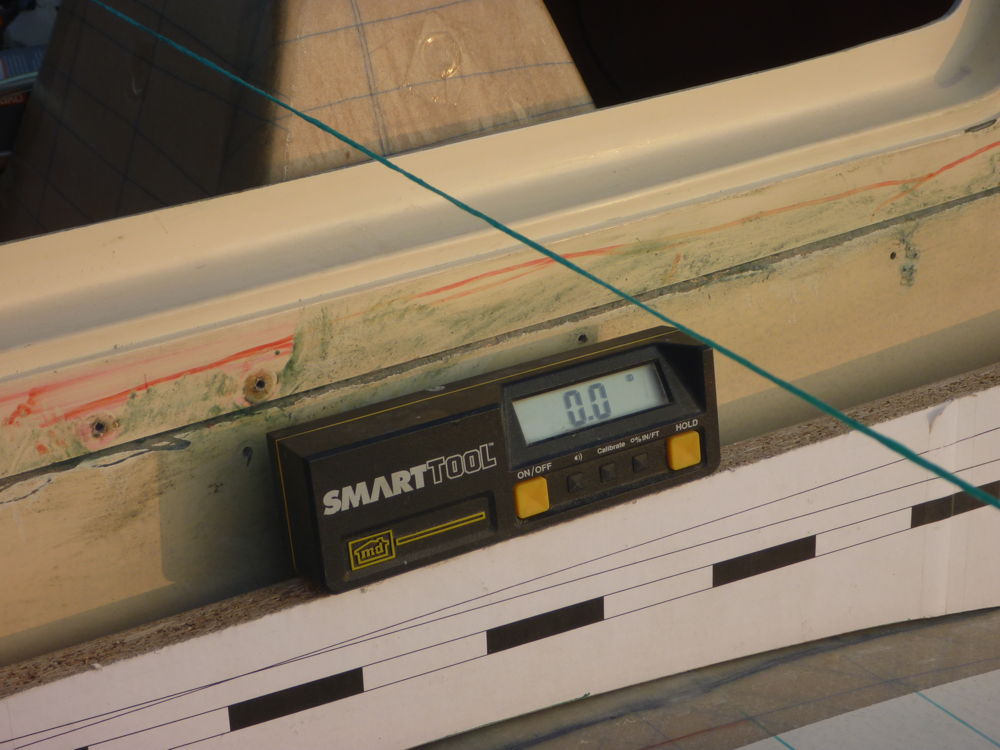

Digital inclinometer on the flap setting template, showing level. This is the second check, after adding SRBF spar guides to the bottom of the spar holes in the fuselage sides, to keep the spars close to the seatback while rigging.
