Aft wing pin socket pads

2 pictures on this page - scroll down to see the rest

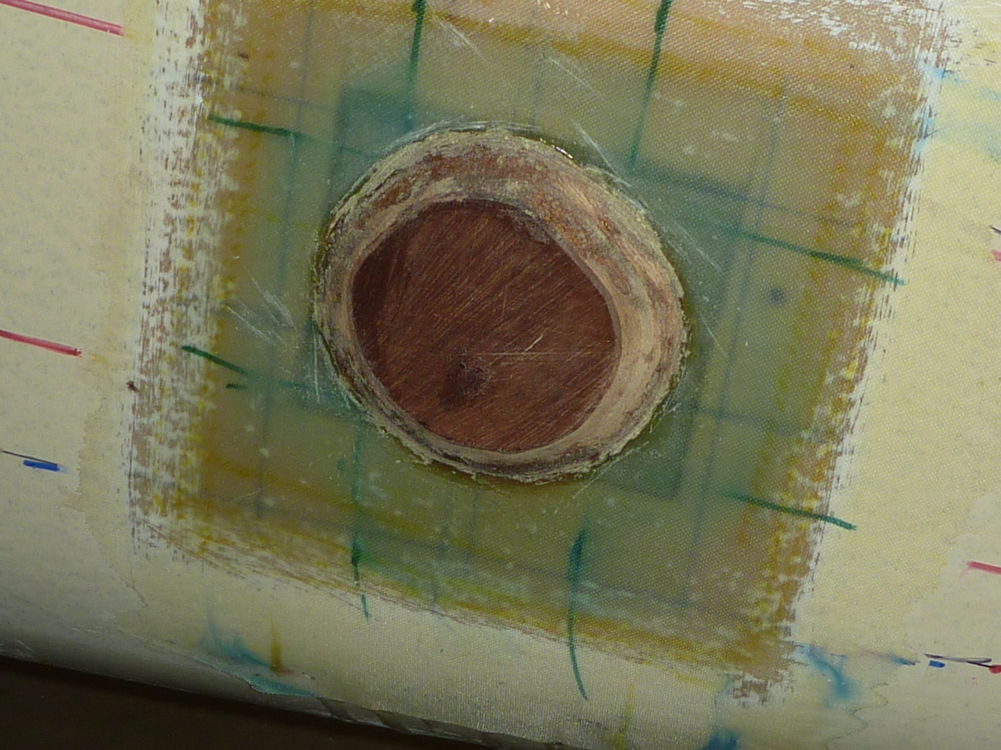

Socket mounting pad starboard

Socket mounting pad starboard: 2014-12-03

Lumix DMC-FT1

Starboard pad for mounting aft wing socket. Made from a piece of marine ply contoured and chamfered to shape. The inner face is tapered to roughly match the angle of the fuselage so that the outer surface is vertical and parallel to the aircraft longitudinal axis.

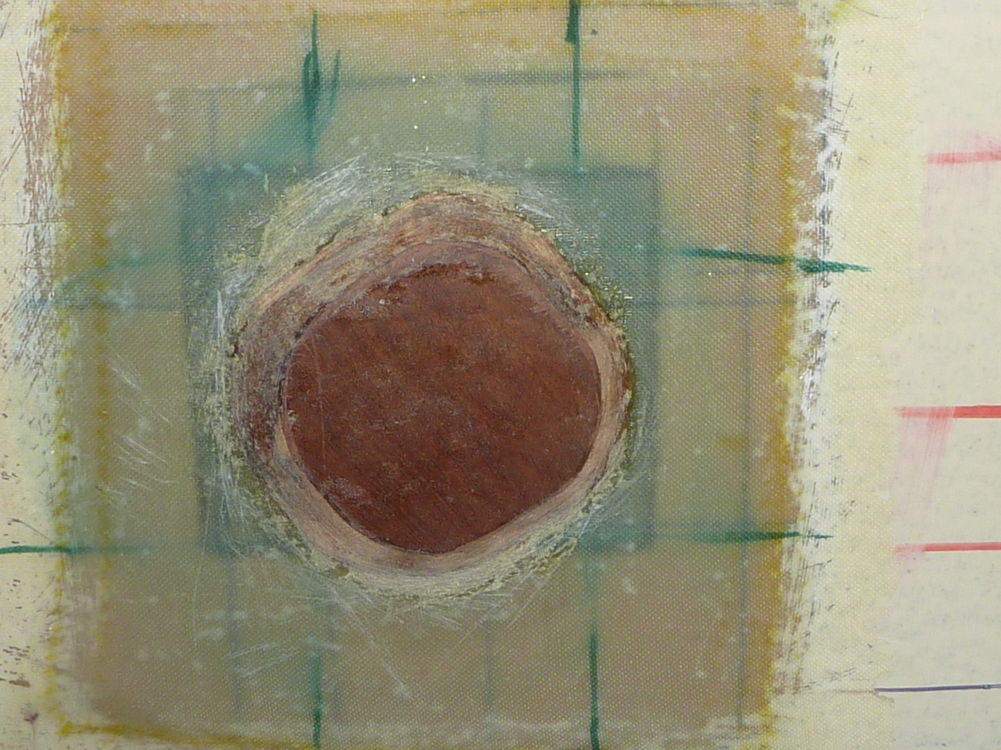

Socket mounting pad port

Socket mounting pad port: 2014-12-03

Lumix DMC-FT1

Port pad for mounting aft wing socket. Made from a piece of marine ply contoured and chamfered to shape. The inner face is tapered to roughly match the angle of the fuselage so that the outer surface is vertical and parallel to the aircraft longitudinal axis. However, after bonding it in place, I found the outer surface was not as true as intended.
