Aft port wing pin socket pad shimmed

taper ply shim

taper ply shim: 2014-12-05

Lumix DMC-FT1

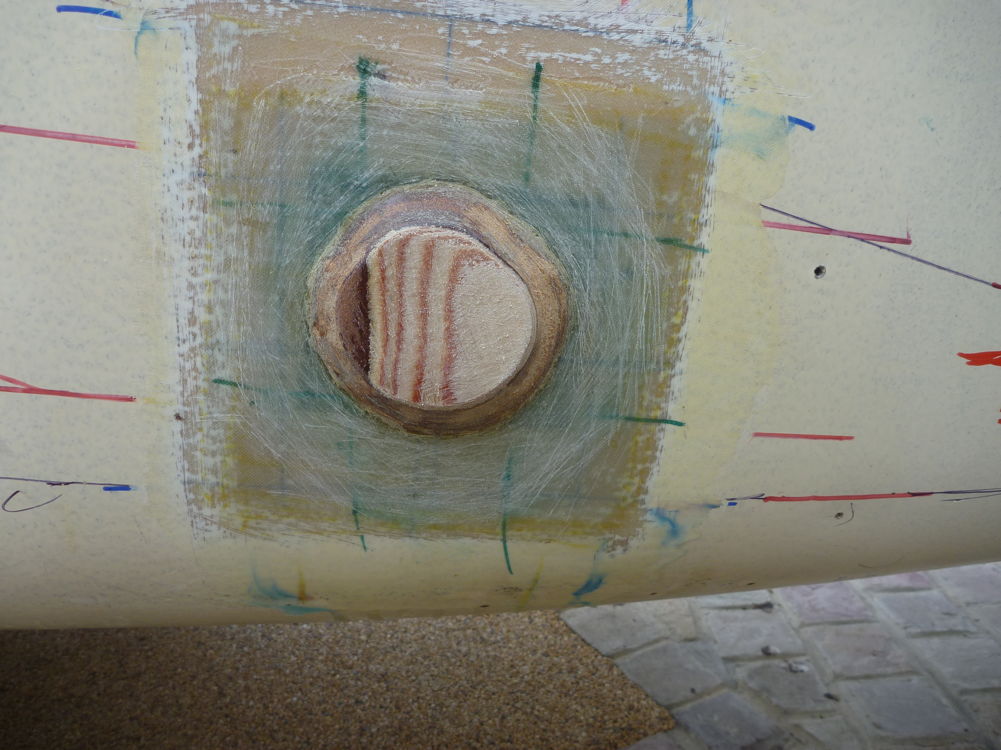

An extra tapered shim bonded to the port mounting pad for the aft wing socket to bring it more parallel to the aircraft longitudinal axis. The taper is demonstrated by the exposed layers of the birch plywood.
