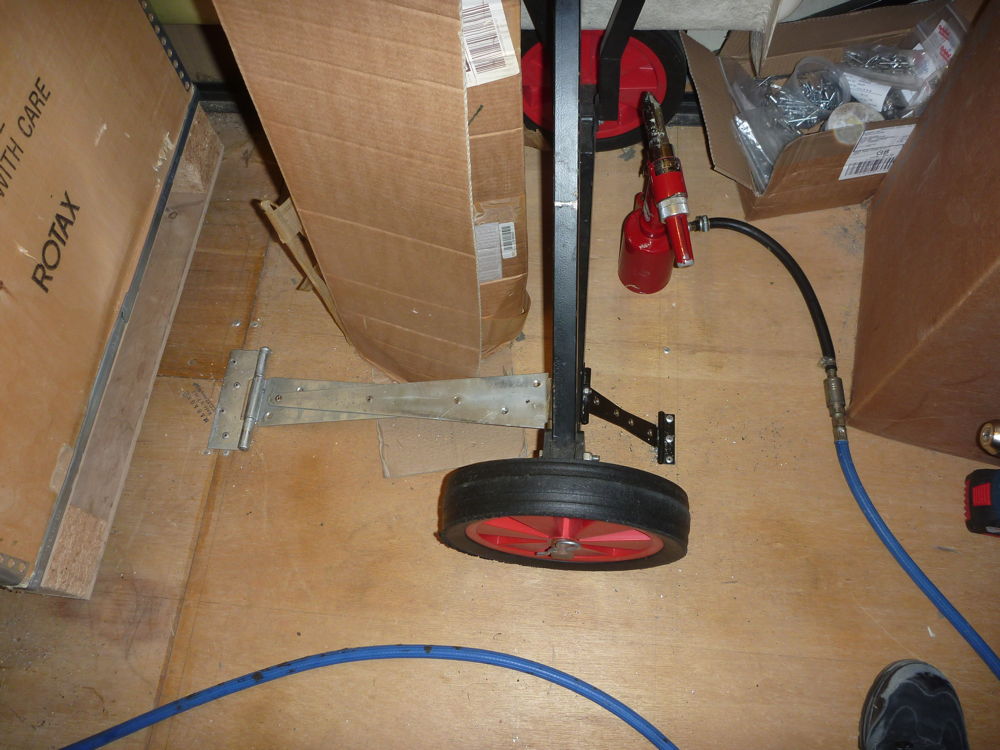

wing dolly restraint: 2017-04-07 Panasonic DMC-FT1
To keep the wing dollies in place while travelling, I added these braces made from TEE-hinges. Each side is made from 2 TEE-hinges riveted together. The bottom end of each brace is riveted to the metal chassis under the wooden floor, and the top end has a hole for a clevis pin which passes through both braces and the dolly. This is the nearside wing dolly which carries the starboard wing.

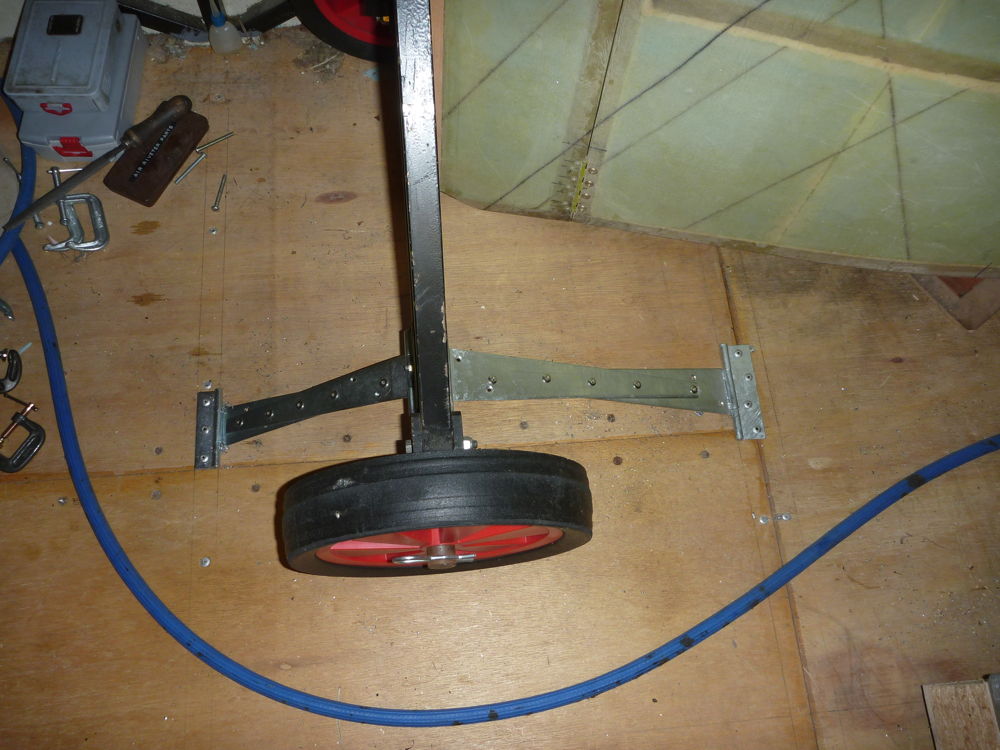

wing dolly restraint: 2017-04-07 Panasonic DMC-FT1
To keep the wing dollies in place while travelling, I added these braces made from TEE-hinges. Each side is made from 2 TEE-hinges riveted together. The bottom end of each brace is riveted to the metal chassis under the wooden floor, and the top end has a hole for a clevis pin which passes through both braces and the dolly. This is the offside wing dolly which carries the port wing.
