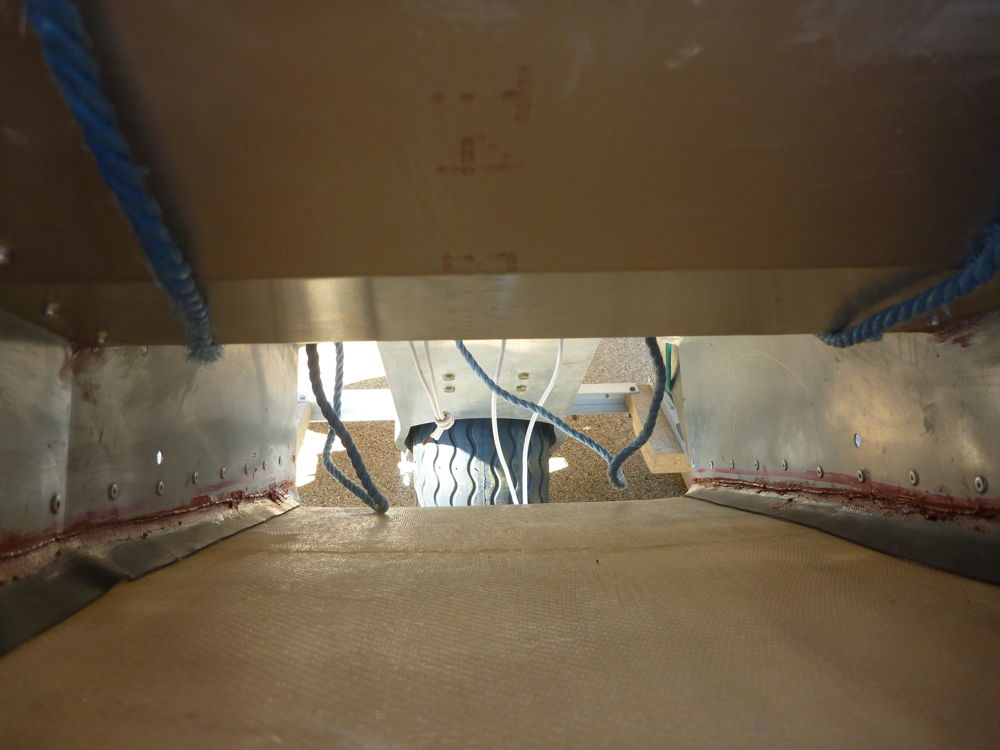

Looking down into the cooling duct from the cowl inlet. This is after the sides of the duct have been trimmed for a better fit - originally when the lower cowl was fitted it pushed the duct up against the silencer. The oil cooler had been positioned as low as possible for the original duct depth and now it will need to be placed higher up in the duct to stay clear of the cowl.
