Warning light holes

Warning light holes: 2013-09-06

Panasonic Lumix DMC-FT1

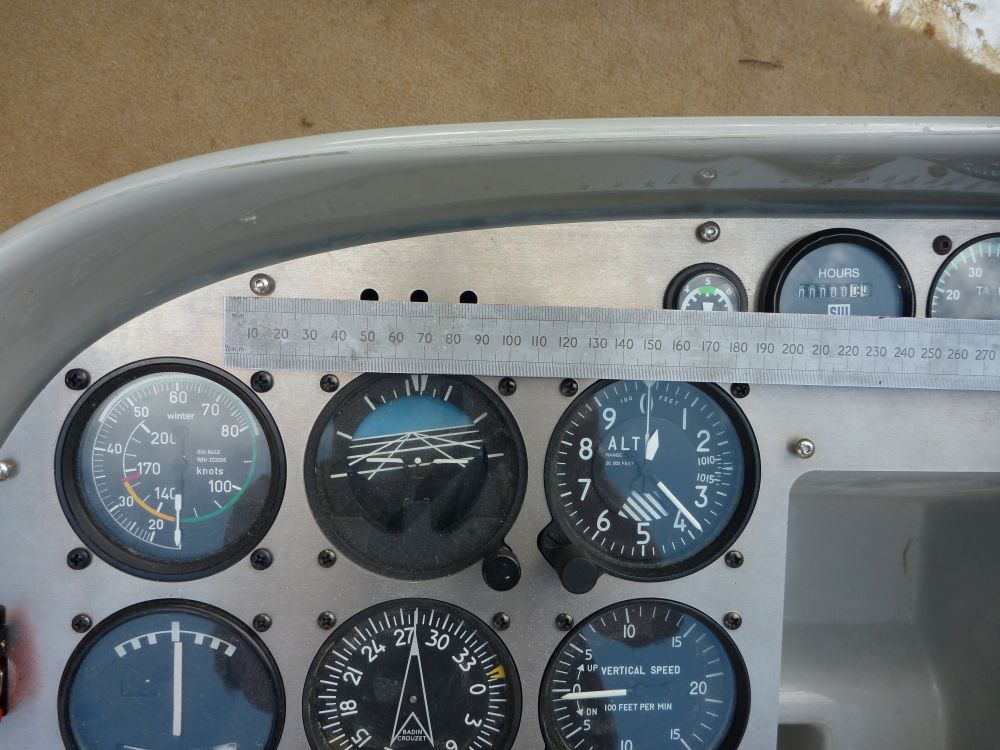

The Mod-63 instrument panel IM01M comes with 3 small holes above the main instruments. I intend to use them for warning lights, but need more than 3. This photo shows that the existing holes are on 17.5mm centres and that there's room for several more on the same line.

Starboard shelf size

Starboard shelf size: 2013-09-06

Panasonic Lumix DMC-FT1

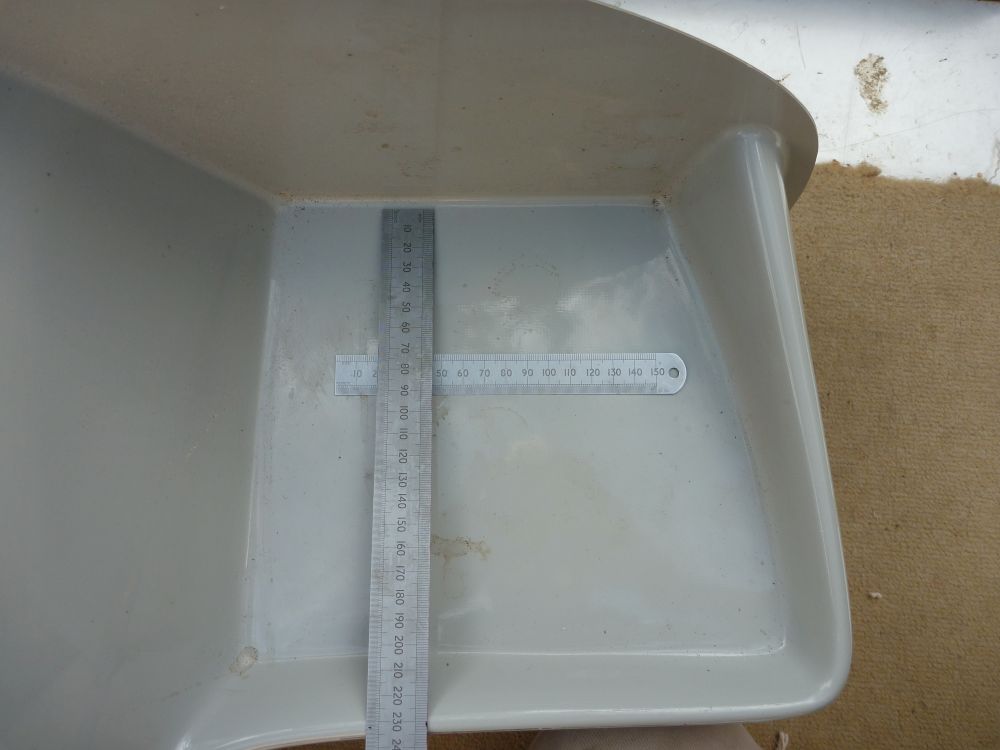

Checking the size of the shelf on the starboard side of the instrument module F14. I intend to cut out a large access hole in the top surface of the shelf to form a hinged flap, and fit the fuseholders on the bottom surface of the shelf.
