Tailwheel mount pad setup: 2013-09-05
Panasonic Lumix DMC-FT1

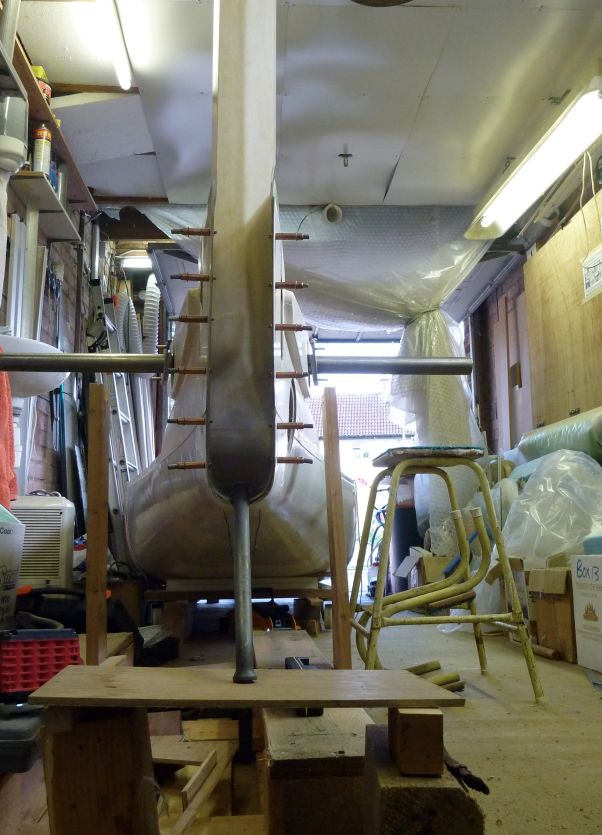

With the fuselage levelled on both axes, I made an arrangement of plywood and wooden blocks to support the XTW06 tailwheel arm at the correct height for bonding in the XTW15 mounting plate. It's difficult to see in this picture but I also checked the vertical alignment by sighting against the lines on the fuselage bottom.
Tailwheel mount pad setup: 2013-09-05
Panasonic Lumix DMC-FT1

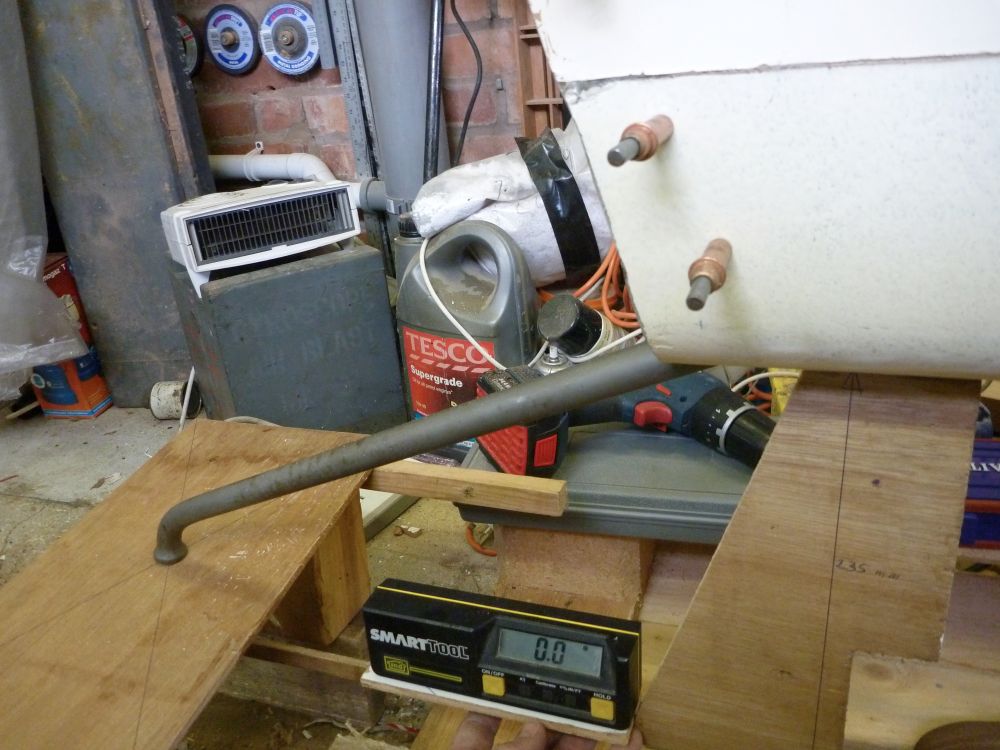

The template being used with the digital level to check that the end of the XTW06 tailwheel arm is at the correct height.
Tailwheel mount pad setup: 2013-09-05
Panasonic Lumix DMC-FT1

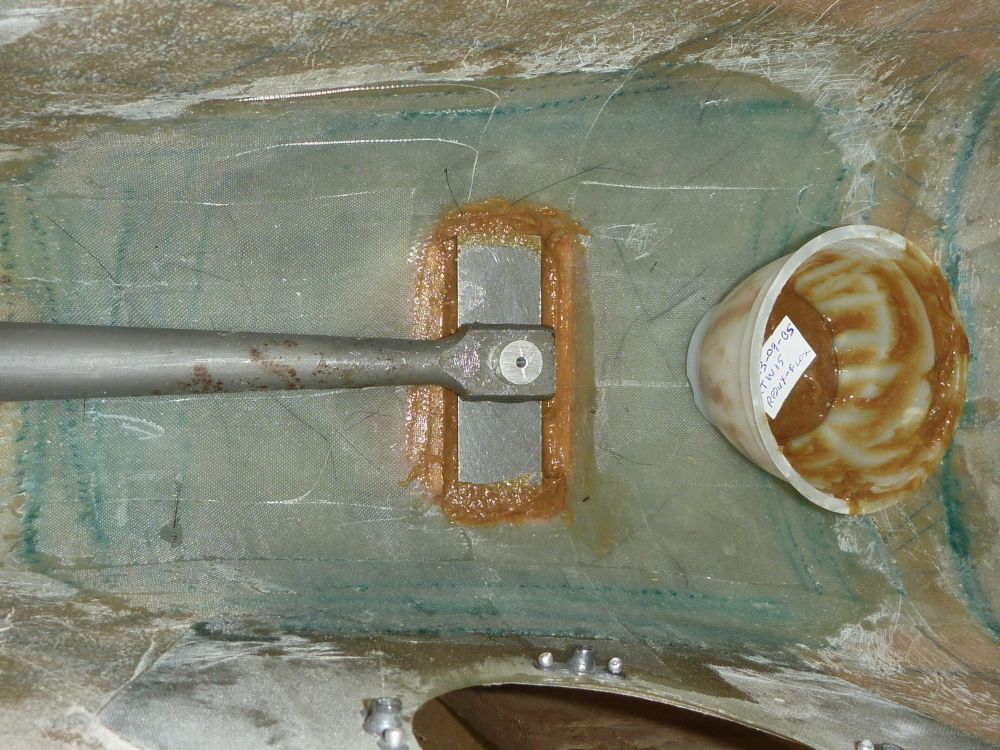

The XTW15 plate being bonded in, held in close contact with the XTW06 arm by the magnetic fixture.
