making stick-top switch mount (1)

making stick top switch mount

making stick top switch mount: 2013-09-07

Panasonic Lumix DMC-FT1

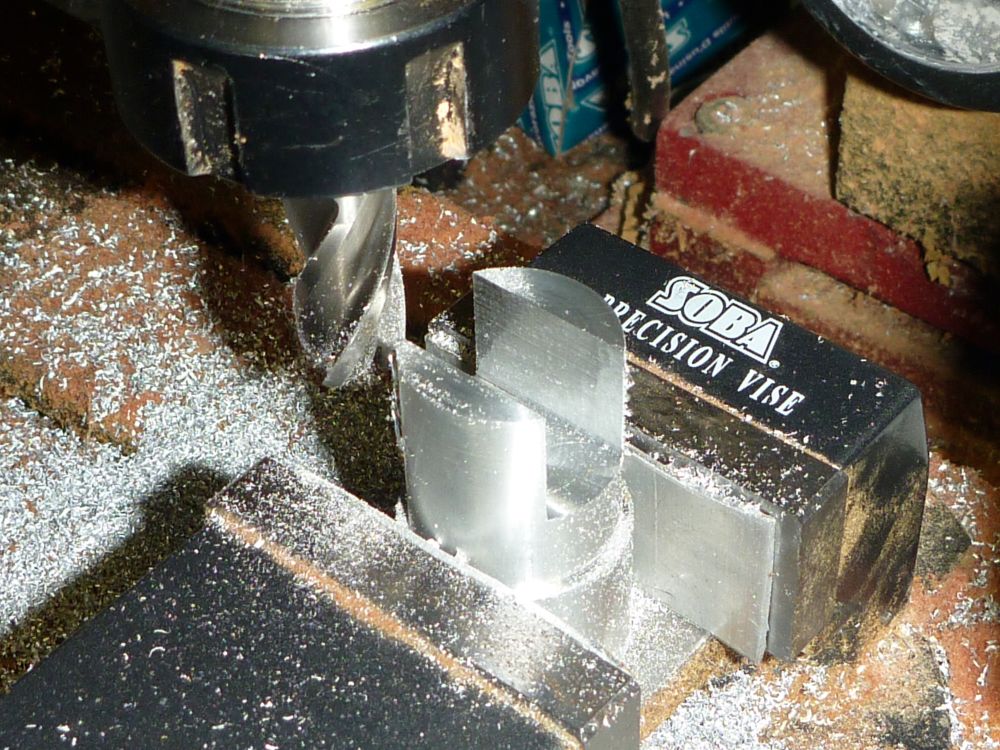

Part-way through the first milling cut in making a mounting for 2 switches (PTT & trim) on the top of the stick. This slot, when completed, will be wide and deep enough to hold the bodies of the 2 switches. The spigot that the slot is being milled out of was turned down to fit in the end of the steel tube that forms the stick. The main diameter that is clamped in the milling vise is the same as the outside diameter of the stick.
