making stick-top switch mount (2)

making stick top switch mount

making stick top switch mount: 2013-09-09

Panasonic Lumix DMC-FT1

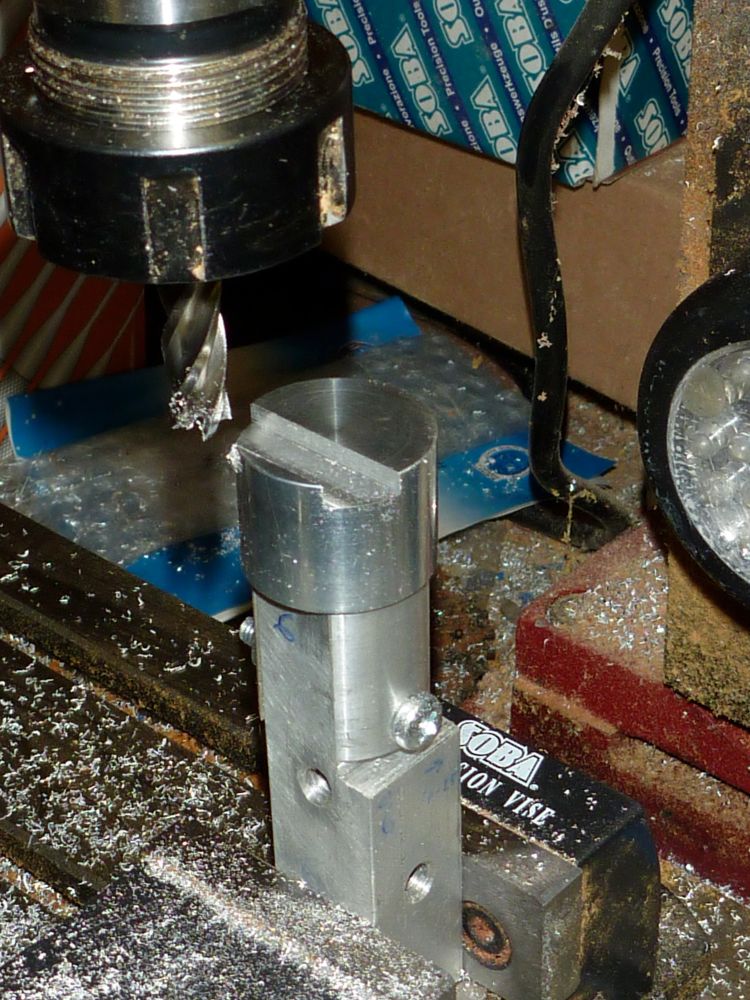

The slot in the bottom spigot for the switch bodies is complete, and a fixture has been made to fit it tightly. It's held in place with a machine screw through the flanges of the spigot. The milling of the slots for the switch actuators is just starting. I want the switches to be guarded from accidental actuation, hence the slots.
