Servo link rod fouling

2 pictures on this page - scroll down to see the rest


TS05 fouling

TS05 fouling: 2012-04-05

Lumix DMC-FT1

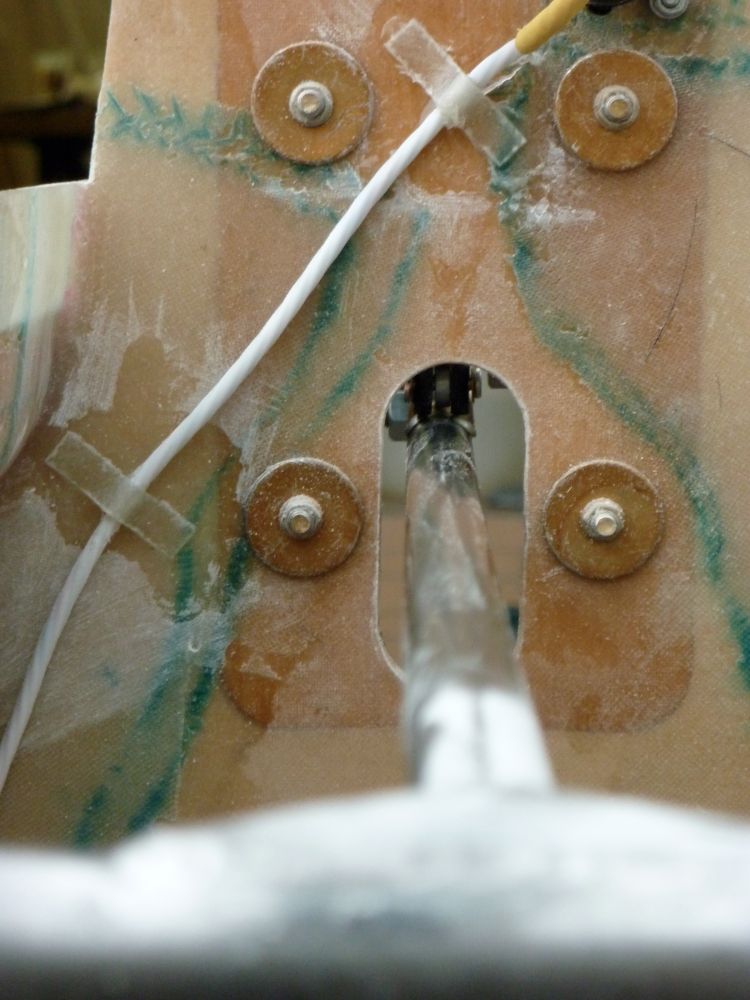

With full up trim (servo rod at the bottom of its travel) and the tailplane trailing edge at the top of its range, the fork end of the servo rod is contacting the TS05 link rod.


TS05 fouling

TS05 fouling: 2012-04-05

Lumix DMC-FT1

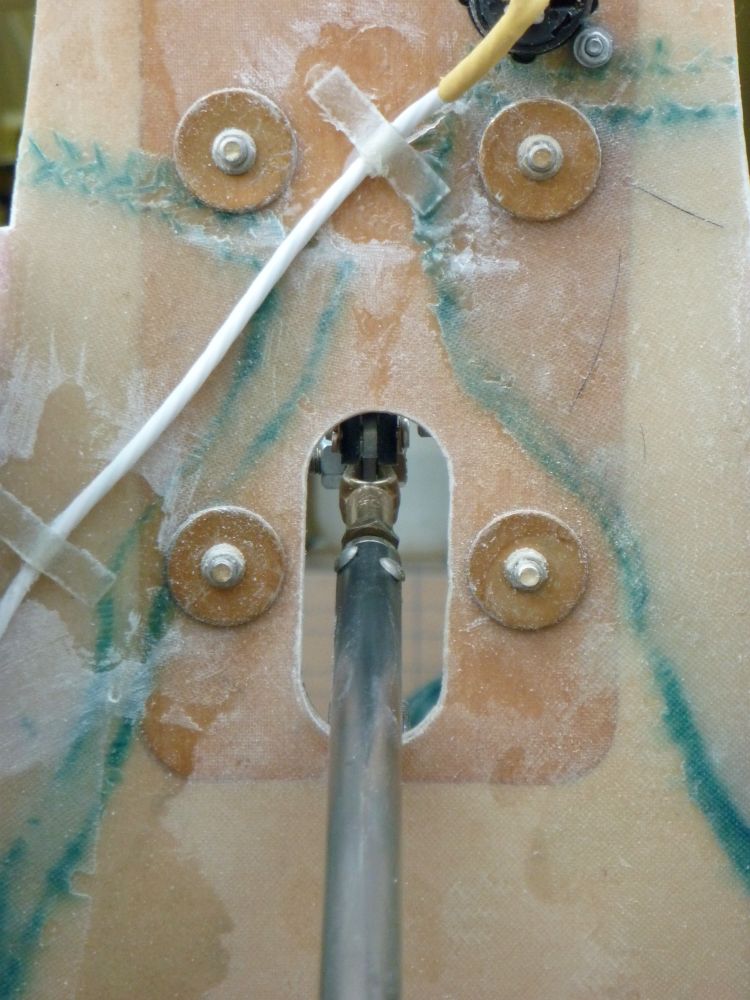

Same as previous picture, but with tailplane TE at the bottom of its range. The fork end of the servo rod is now well clear of the TS05 link rod.
