Trim bellcrank relieved: 2012-04-13
Lumix DMC-FT1

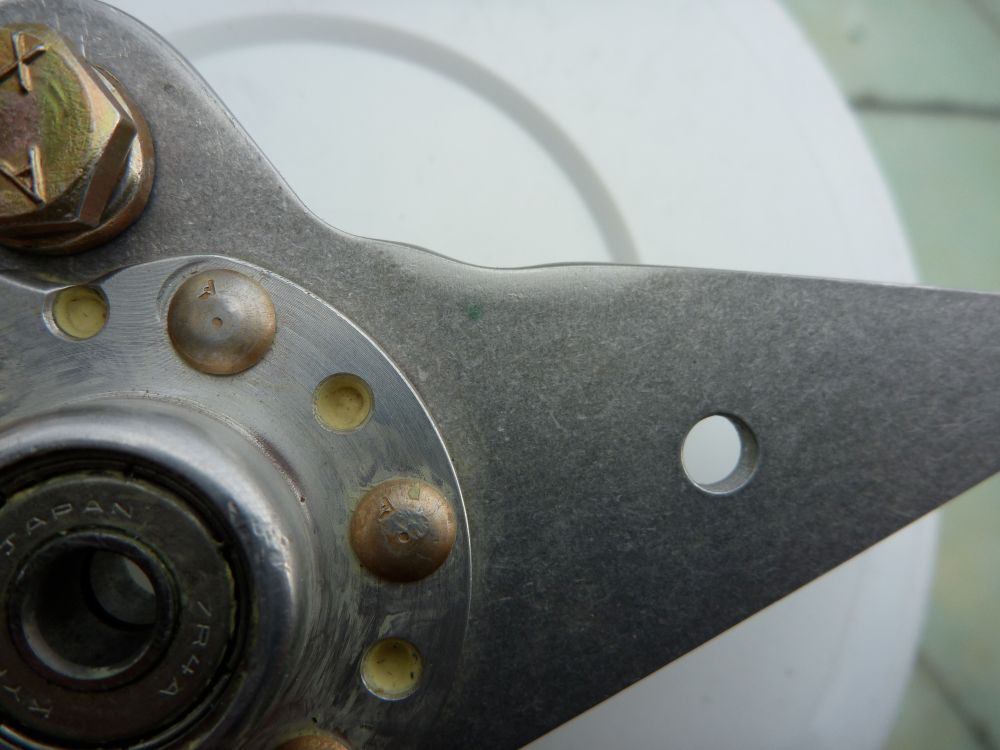

A small hollow filed into the trim bellcrank to keep the link rod fork from touching it.
Trim bellcrank relieved: 2012-04-13
Lumix DMC-FT1

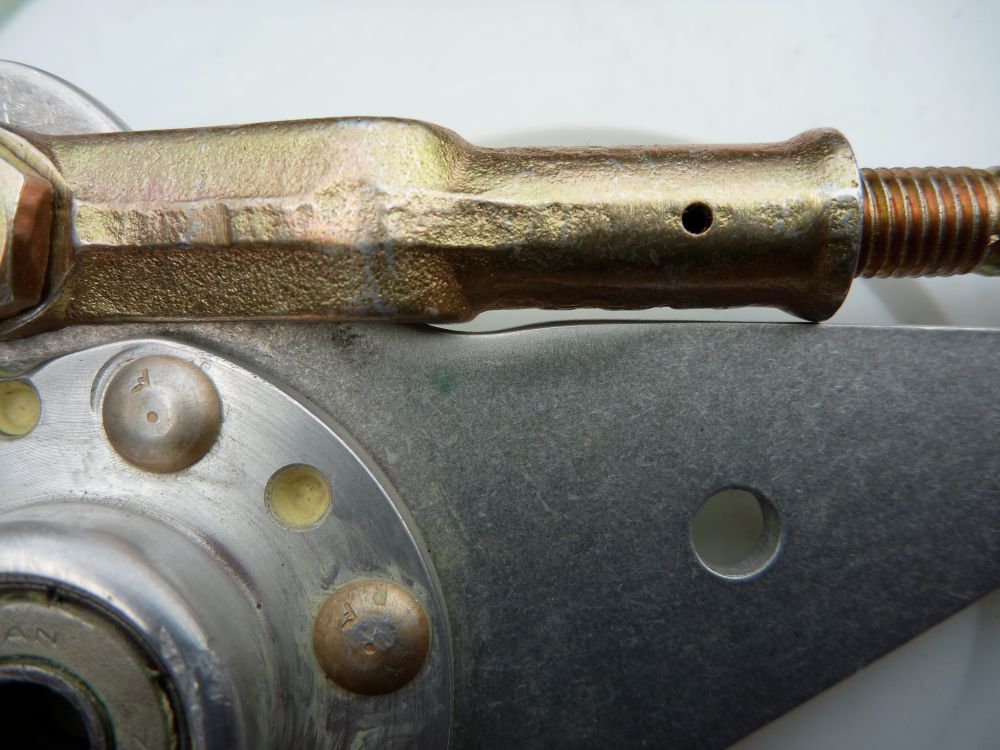

After relieving the bellcrank profile, the crotch of the trim link rod fork now does not touch the bellcrank; the first part to make contact is the butt end of the fork fitting. That area could have been relieved further if necessary, but the measurements on the tailplane show that the correct travel has now been achieved.
Trim bellcrank relieved: 2012-04-13
Lumix DMC-FT1

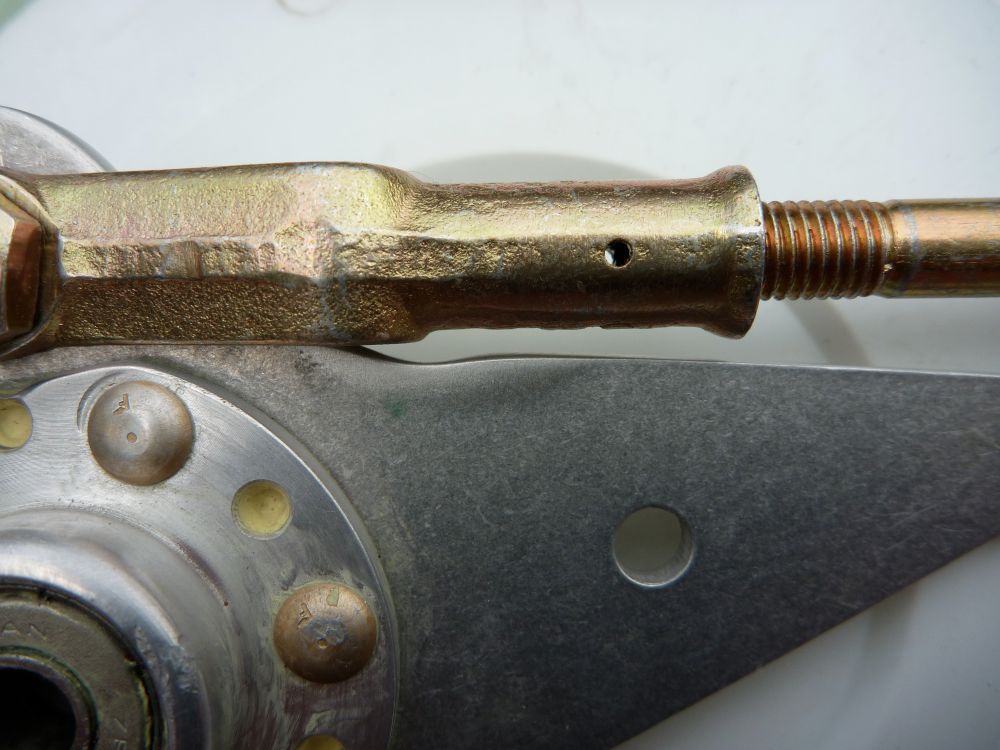

The trim bellcrank with the link rod swung away to show how small a relief in the bellcrank profile was required.
