Servo link rod length

Checking servo link rod length

Checking servo link rod length: 2012-03-31

Lumix DMC-FT1

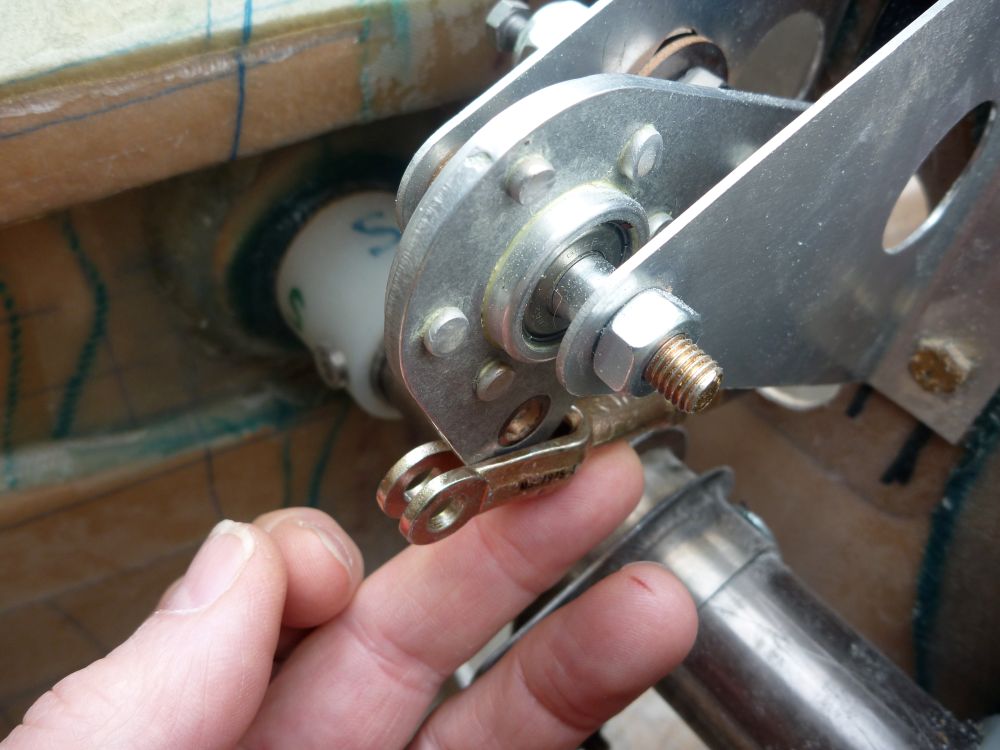

The link rod between the trim servo bellcrank and the trim tabs has to be shortened. Here I'm checking how much should be removed, based on the distance between the eye of the fork end and the bellcrank hole to which it will be fitted.
