Wing TE aileron closeout trimming
|
|
Wing TE aileron closeout trimming |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest
TE closeout relief: .
Nikon Coolpix 8400

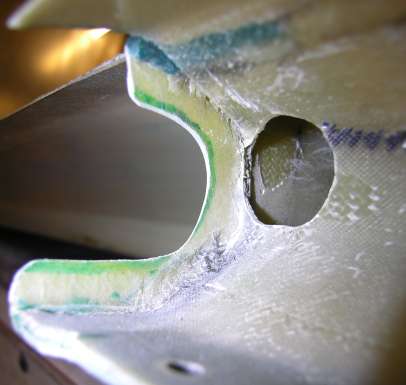

Neville Eyre recommended that the end of the TE closeout should be trimmed away, leaving a flange of about 8mm as marked here in green. There are 2 reasons for this: it allows the upper TE to flex more to conform to the aileron LE shape; and it allows better access to the end of the aileron pushrod for fitting and adjustment.
TE closeout relief: .
Nikon Coolpix 8400
End of TE closeout trimmed to leave a flange. Note that there is no flange left at the top, so that the upper part of the TE can flex to conform to the aileron shape.
TE closeout relief: 2007-12-03.
Nikon Coolpix 8400

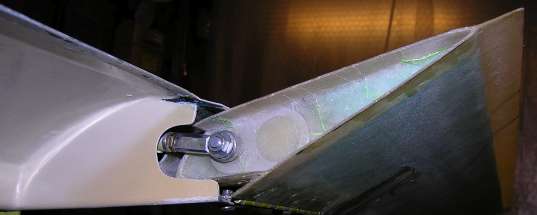

Looking outboard with aileron fitted; this shows the improved access to the aileron pushrod adjustment.
