Flap attachment bolt almost threadbound

Flap attachment bolt almost threadbound

Flap attachment bolt almost threadbound: 2008-02-27.

Nikon Coolpix 8400

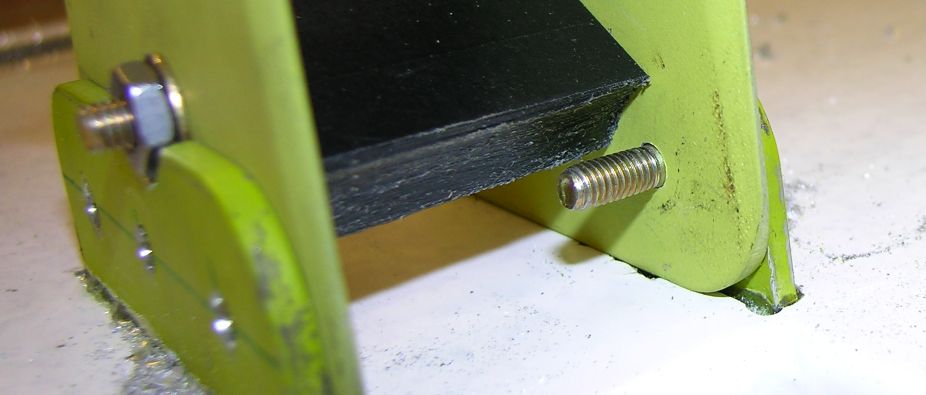

The AN3-5A bolts as supplied in the kit for attaching the flaps seem almost too long. Inserted into W18/W21, the unthreaded portion of the shank is visible here, and only the AN960-10L washer prevents the fastener from being threadbound. At present, I plan to replace all the AN3-5A flap attachment bolts by AN3-4A which still have 2 threads visible beyond the nut when assembled. Also visible here is the slight relief I had to file on OR6 (the black part) to make room for the washer because this bolt hole turned out to be a bit close to OR6.
