TE support for sanding

TE support rebate

TE support for sanding: 2004 05 18.

Canon AV-1, Fujichrome Velvia 100F.

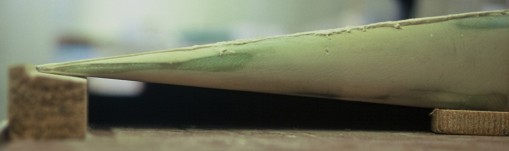

The tip of the rudder, with the port side uppermost ready for sanding. Note the slight angle of the rebate on the TE support, to approximately match the shape of the control surface, and the wedge at the LE, required because of the root-to-tip taper in the rudder.
