Fuel tank adaptors

3 pictures on this page - scroll down to see the rest

AN842-4D won't fit

AN842-4D won't fit: 2009-03-11

Nikon Coolpix 8400

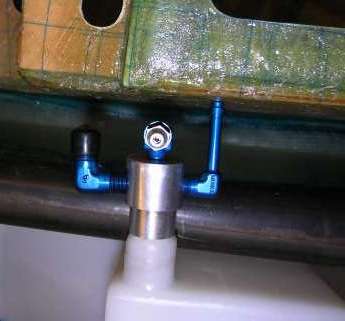

The AN842-4D elbow I intended to use for the fuel sight gauge connexion is much too long to fit - it's just touching the seat-back - and I don't want to angle it upwards because the tube might have to curve down again before passing through the seat-back, and that might cause air-locks.

fuel tank adaptors

fuel tank adaptors: 2009-03-11

Nikon Coolpix 8400

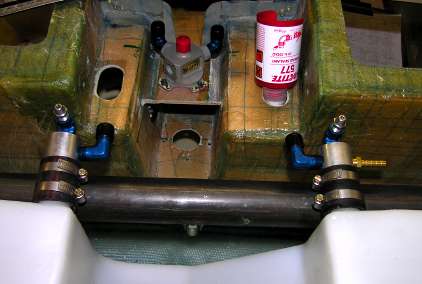

The fuel tank adaptors fitted, with the straight brass adaptor (as supplied in the kit) fitted for the sight gauge tubing instead of the AN842-4D elbow I planned to use.

fuel tank adaptor clearance

fuel tank adaptor clearance: 2009-03-11

Nikon Coolpix 8400

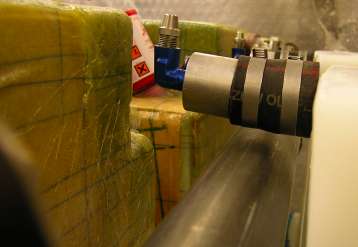

There is not much clearance between the fuel tank outlet and the transverse pitch torque tube CS10, but at least they are not rubbing!
