Spraying CS05 torque tubes

2 pictures on this page - scroll down to see the rest

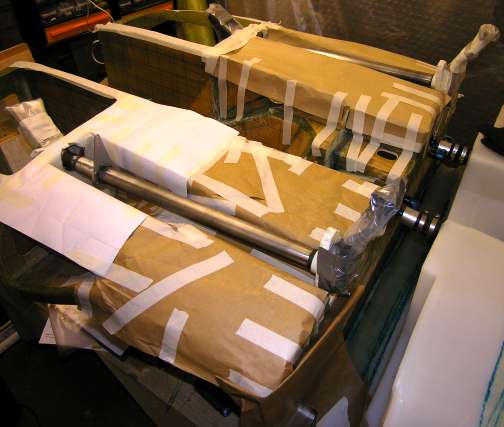

masking to spray CS05

masking to spray CS05: 2009-03-20

Nikon Coolpix 8400

The complex masking I needed to use while spraying the CS05 aileron torque tubes with etch-primer. If I'd thought of spraying them before they were assembled into the cockpit module, it would have saved a bit of work.

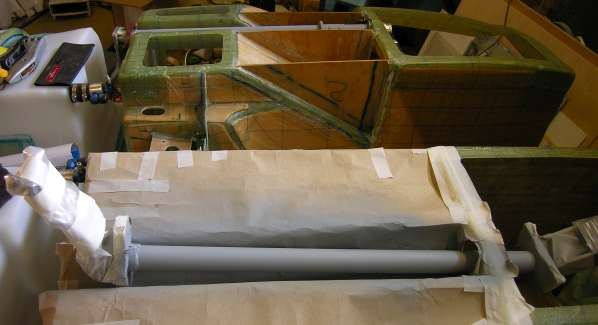

CS05 sprayed

CS05 sprayed: 2009-03-21

Nikon Coolpix 8400

The CS05 torque tubes after spraying with etch-primer. The starboard masking has been removed and the CS04 & CS06 phenolic bearings re-fitted to the cockpit module.
