Starter wiring in baffle location

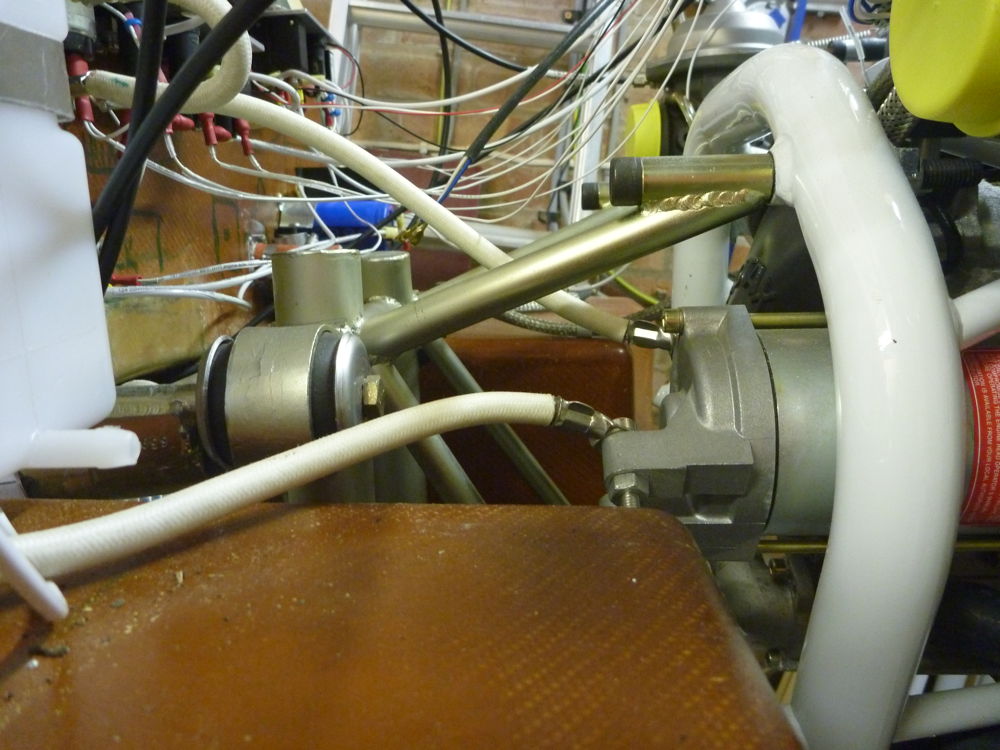

starter motor wiring

starter motor wiring: 2016-07-20 Panasonic DMC-FT1

The aft baffle for Neville Eyre's cowl is to be a top-hat shape mounted between the footwells. I hadn't realised this before I started doing the starter-motor wiring; the 2 fat wires visible in this picture will have to be re-routed to clear the baffle.
