firesleeve on firewall feed-through

3 pictures on this page - scroll down to see the rest

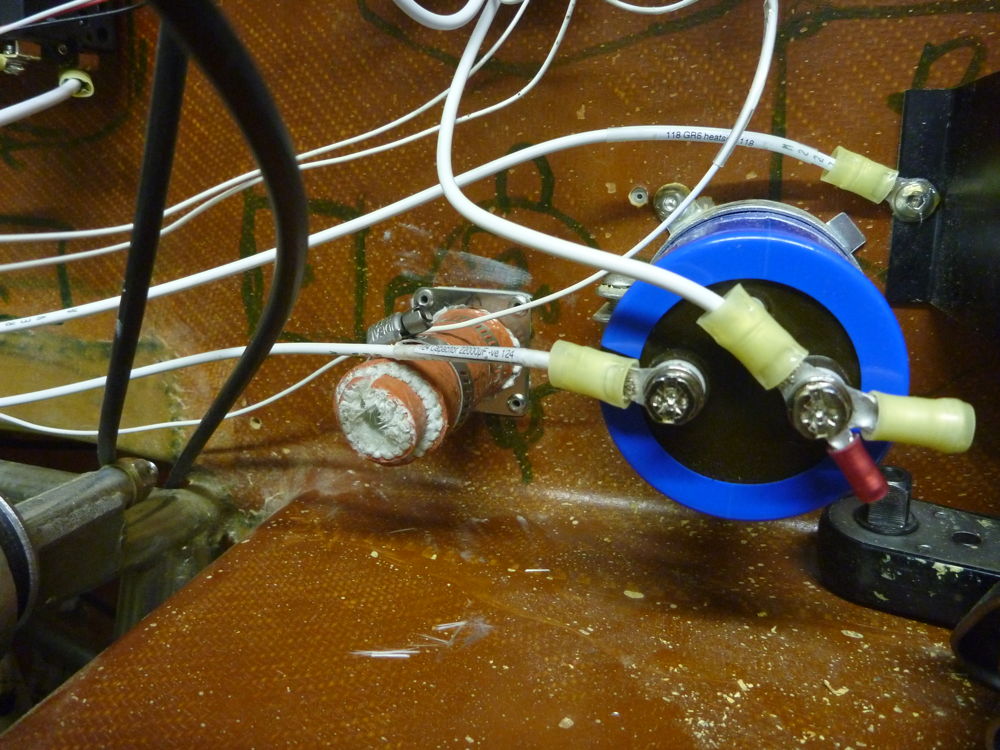

firesleeve on firewall pass-through

firesleeve on firewall pass-through: 2016-06-30 Panasonic DMC-FT1

The stainless steel firewall pass-through fitting with layers of firesleeve added outside and inside the tube. The inner sleeve was slit axially to reduce its diameter.

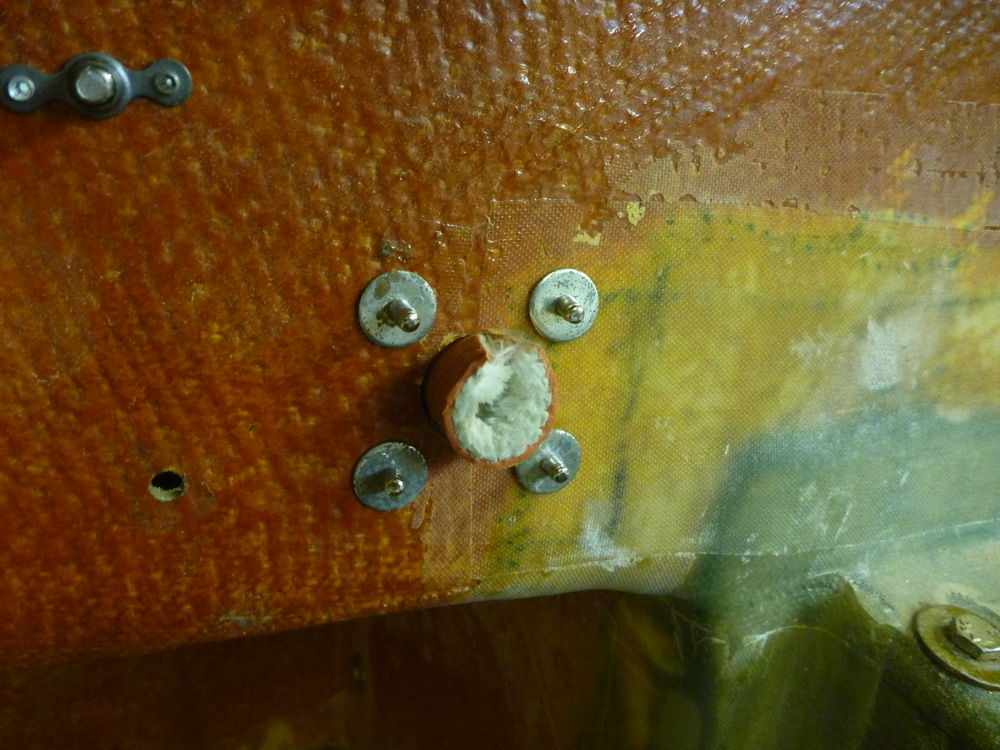

firesleeve in firewall pass-through

firesleeve in firewall pass-through: 2016-07-01 Panasonic DMC-FT1

Aft (cockpit) side of the firewall pass-through with firesleeve inserted.

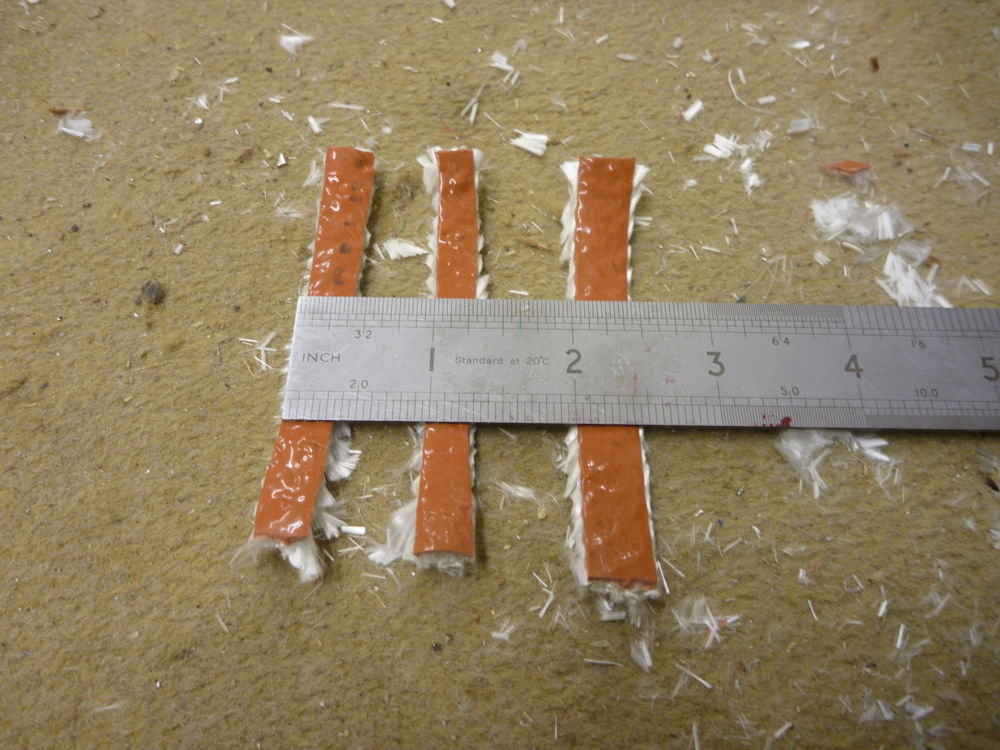

strips cut from firesleeve

strips cut from firesleeve: 2016-06-30 Panasonic DMC-FT1

The successive strips cut from the inner firesleeve to reduce its diameter enough to fit inside the tube. The instructions called for a strip about 1/4" to be cut off, but obviously that was not enough!
