Installing carb heat piping
|
|
Installing carb heat piping |
|
|
 |
Navigation & Acknowledgements |
5 pictures on this page - scroll down to see the rest

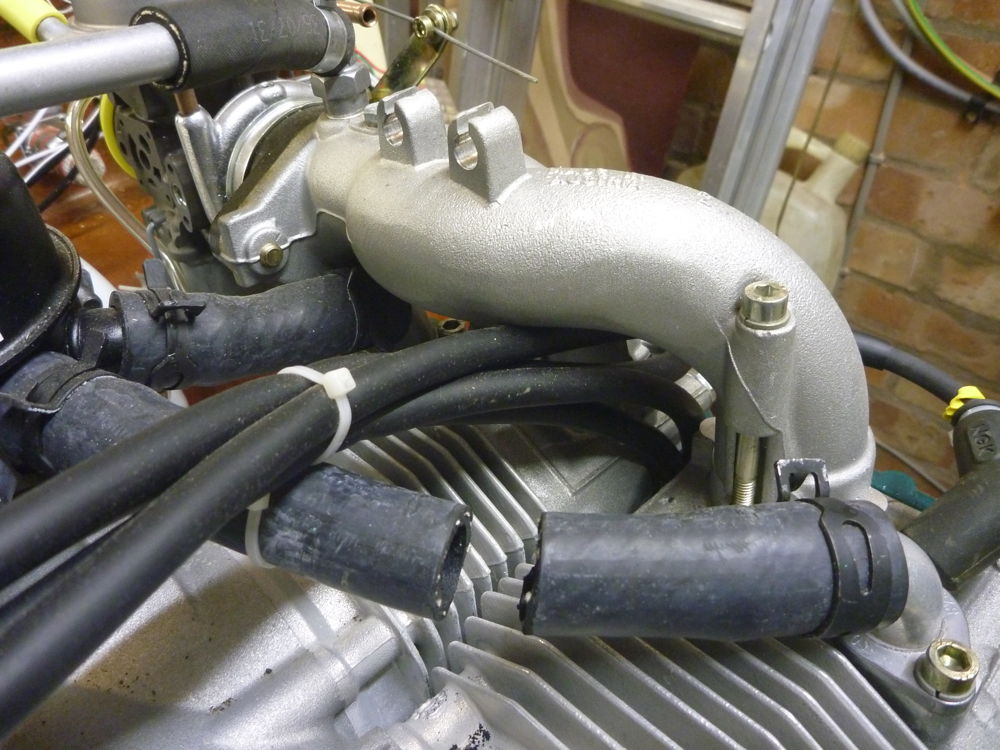

cooling hose cut for carb heat takeoff: 2016-07-05 Panasonic DMC-FT1
The coolant hose connexion to number 2 cylinder head cut and a short section removed to allow insertion of the tee-piece for the Skydrive carb heat system.

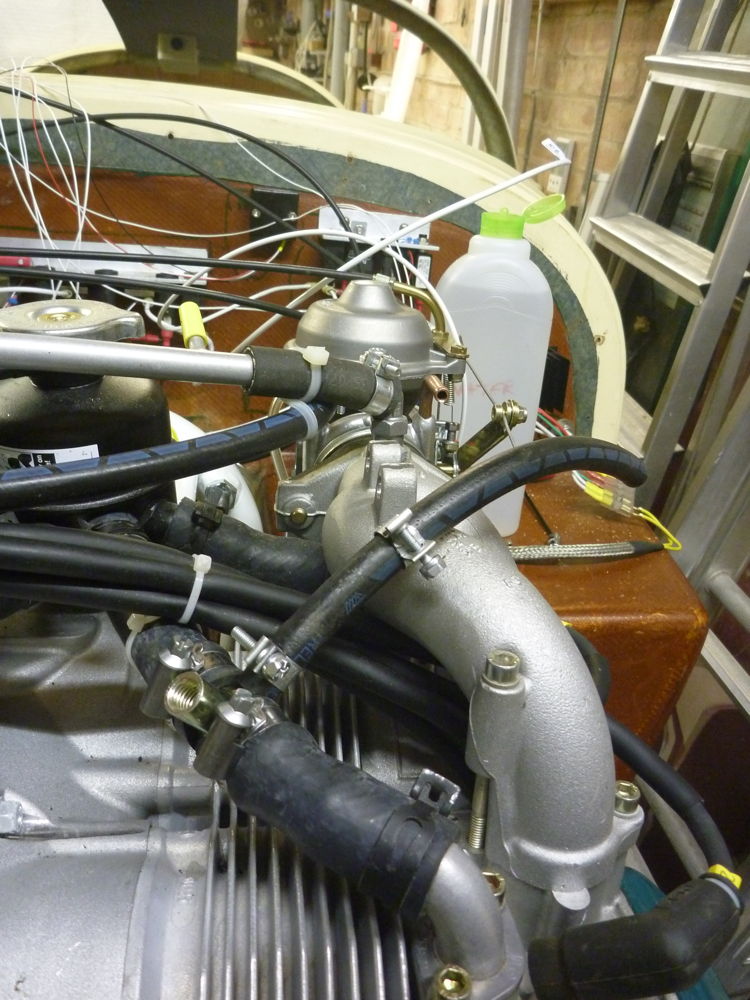

carb heat tee-piece fitted to coolant hose: 2016-07-05 Panasonic DMC-FT1
The tee-piece for the carb heat fitted to the coolant hose. It's actually a double tee as it also has a tapped socket for fitting a coolant temperature sensor. The smaller-diameter hose has been checked for length to fit on the carb heat nipple but left disconnected as this is the last connexion to be closed when filling the system.

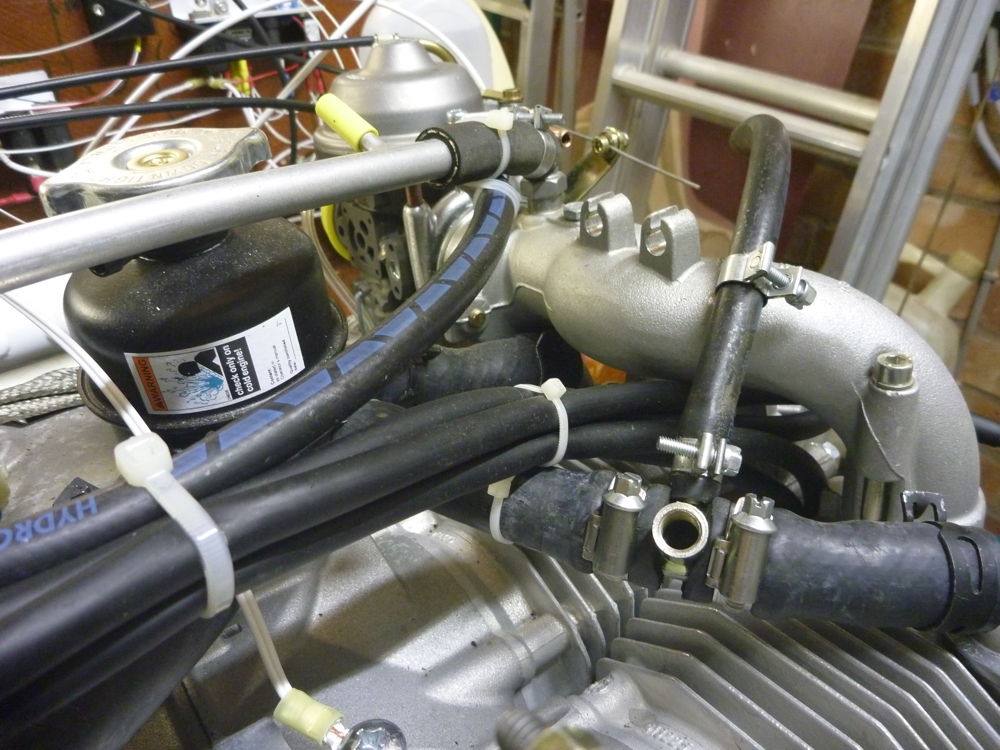

carb heat tee-piece fitted to coolant hose: 2016-07-05 Panasonic DMC-FT1
The tee-piece for the carb heat fitted to the coolant hose. It is actually a double tee as it also has a tapped socket for fitting a coolant temperature sensor. The smaller-diameter hose has been checked for length to fit on the carb heat nipple but left disconnected as this is the last connexion to be closed when filling the system. Also visible here is the hose connexion (with blue writing) between the carb heaters. It is secured to the carb balance pipe and to the ignition cables.

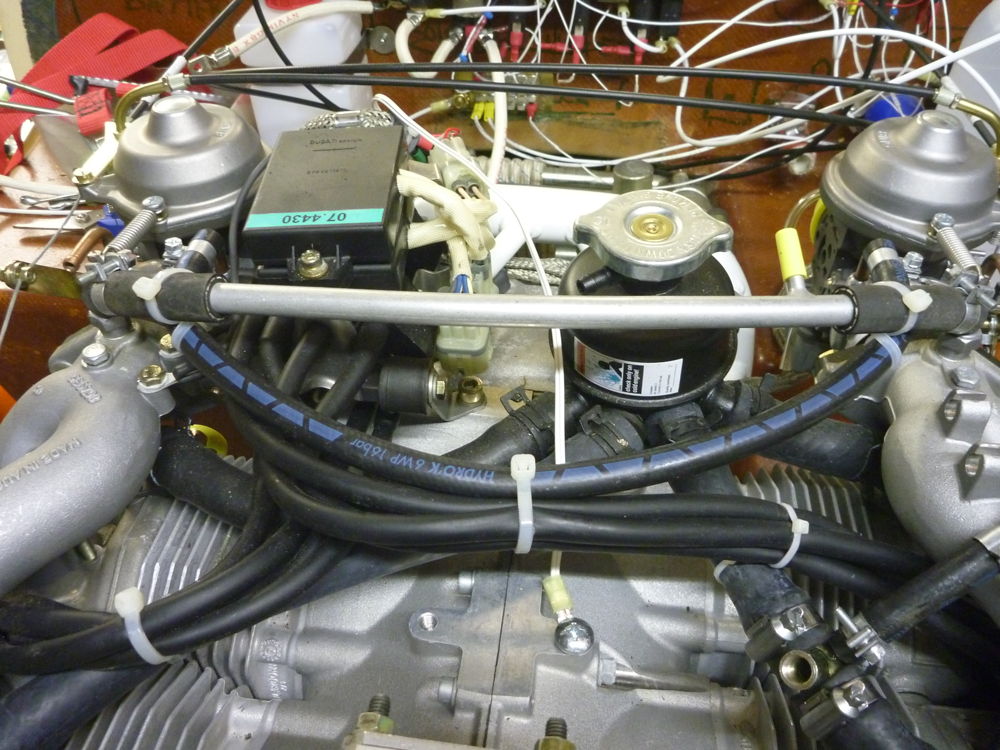

hose between carb heaters: 2016-07-05 Panasonic DMC-FT1
The hose connexion (with blue writing) between the carb heaters, secured to the carb balance pipe near each end and to the ignition cables in the middle.

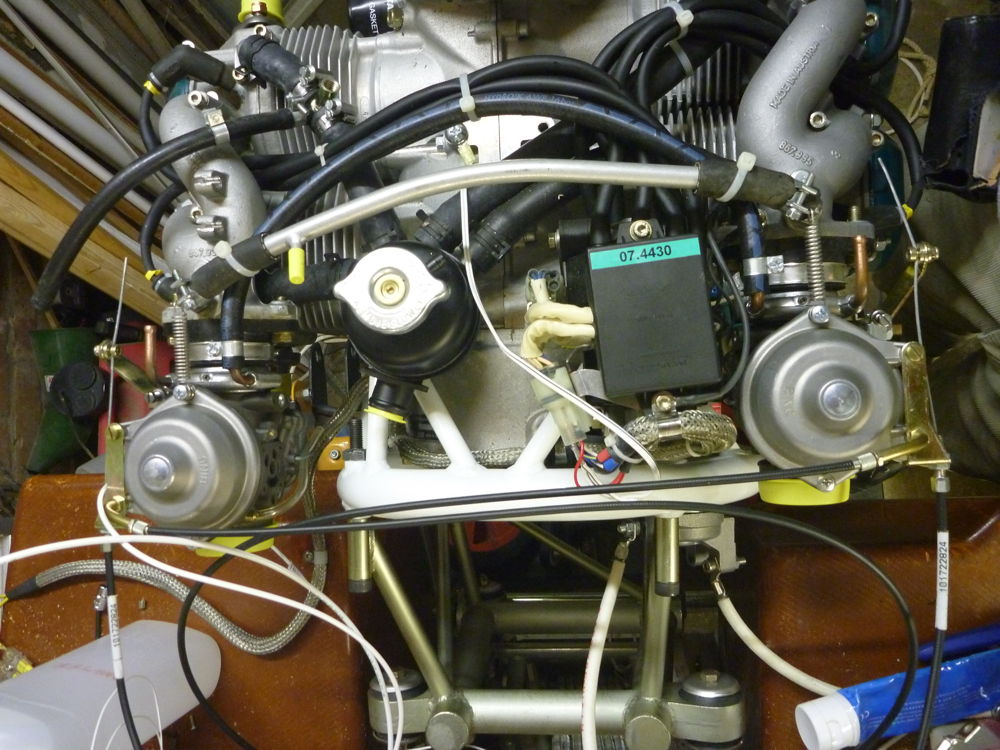

hose between carb heaters: 2016-07-05 Panasonic DMC-FT1
The hose connexion (with blue writing) between the carb heaters, secured to the carb balance pipe near each end and to the ignition cables in the middle.
