Cowl first assembly
|
|
Cowl first assembly |
|
|
 |
Navigation & Acknowledgements |
5 pictures on this page - scroll down to see the rest
checking engine cowl fit: 2016-07-14 Panasonic DMC-FT1

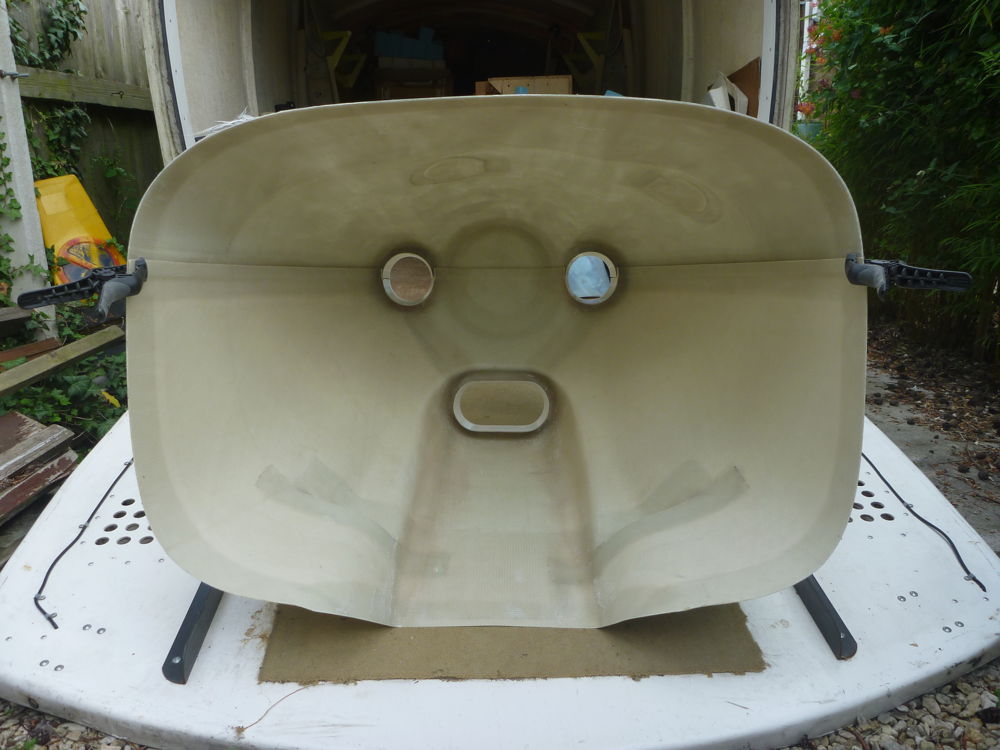

The upper and lower parts of the cowl manufactured by Neville Eyre clamped together temporarily to check the fit
checking engine cowl fit: 2016-07-14 Panasonic DMC-FT1

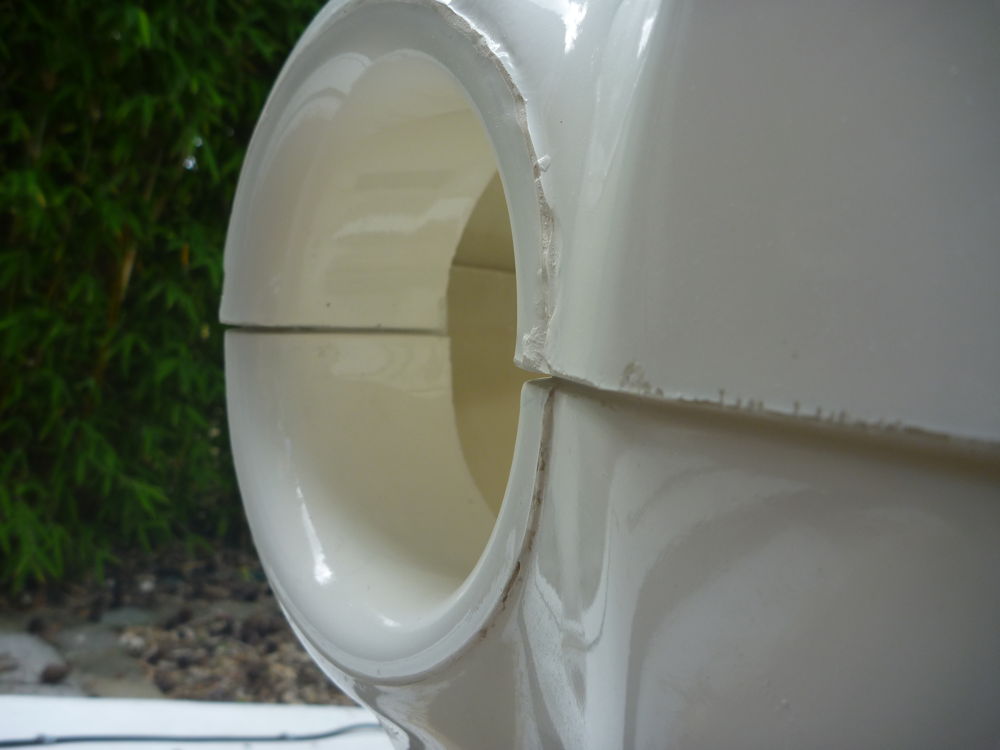

Initial test fit of engine cowl showing need for adjustment around port inlet.
checking engine cowl fit: 2016-07-14 Panasonic DMC-FT1

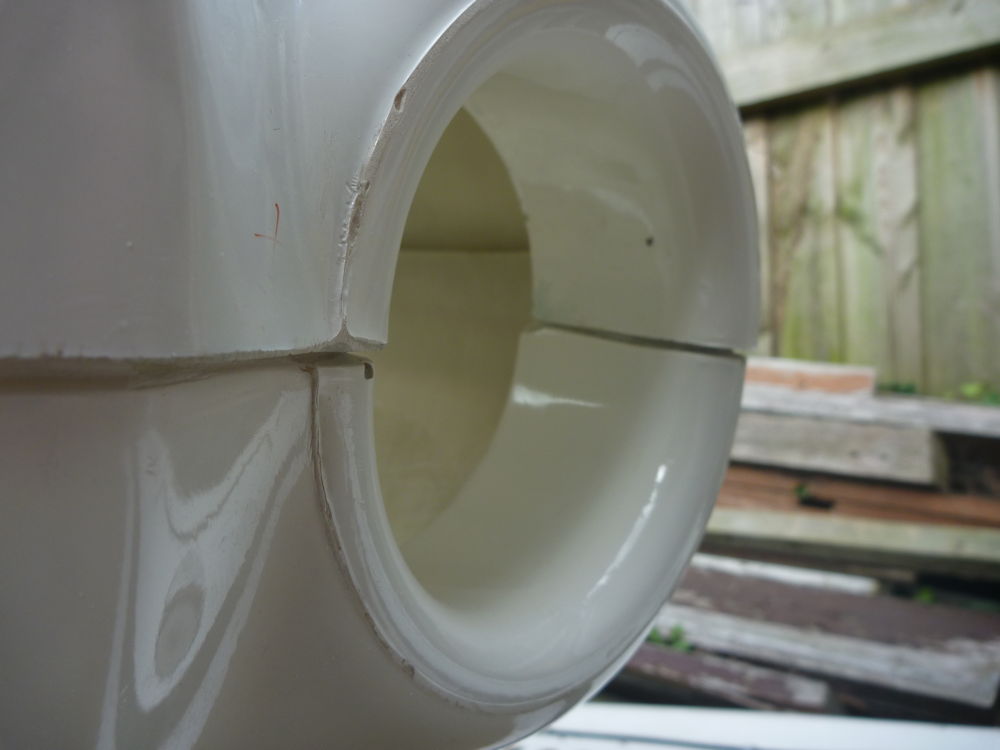

Initial test fit of engine cowl showing need for adjustment around starboard inlet.
engine cowl flange fettling: 2016-07-14 Panasonic DMC-FT1

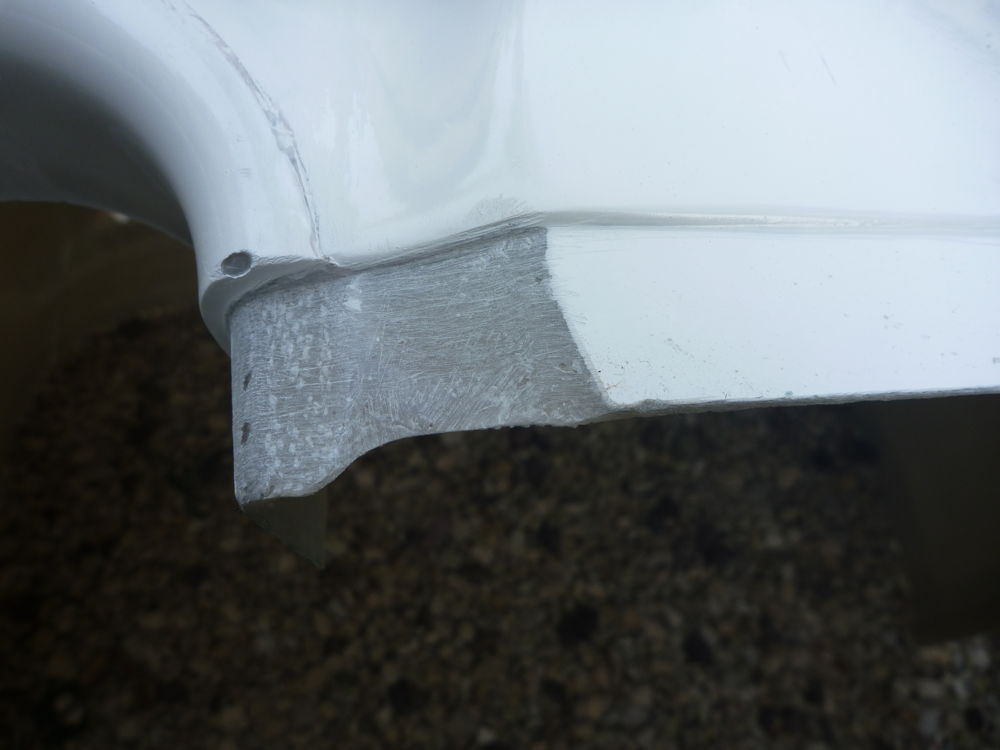

The flange adjacent to the port air inlet on the lower part of the cowl filed to improve the fit to the upper part of the cowl.
engine cowl flange fettling: 2016-07-14 Panasonic DMC-FT1

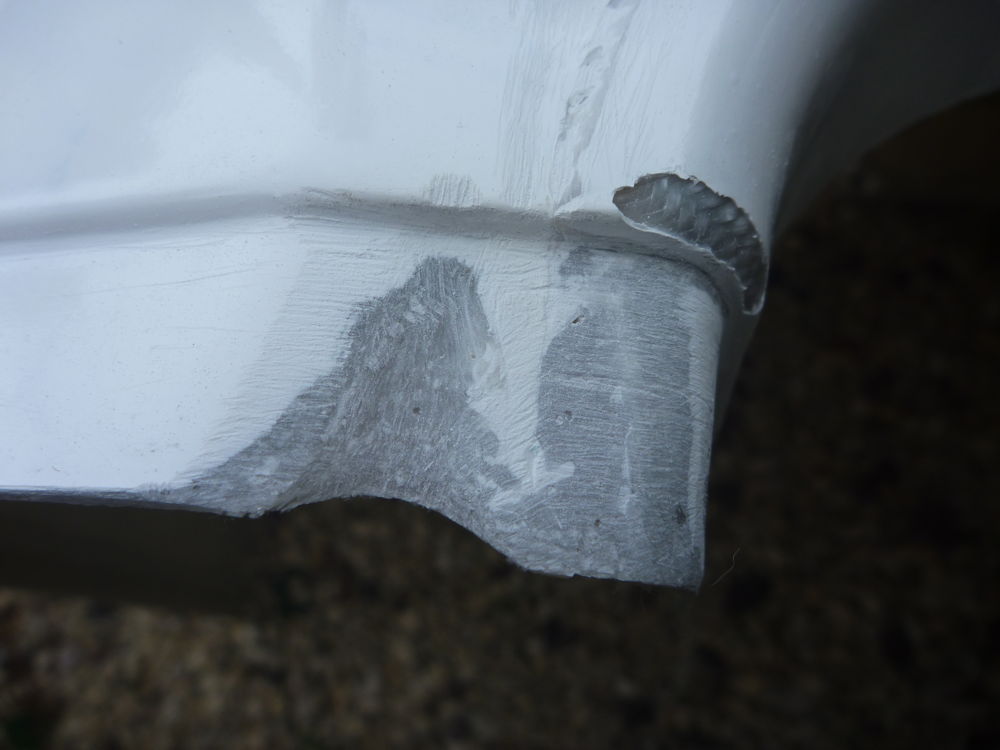

The flange adjacent to the starboard air inlet on the lower part of the cowl filed to improve the fit to the upper part of the cowl.
