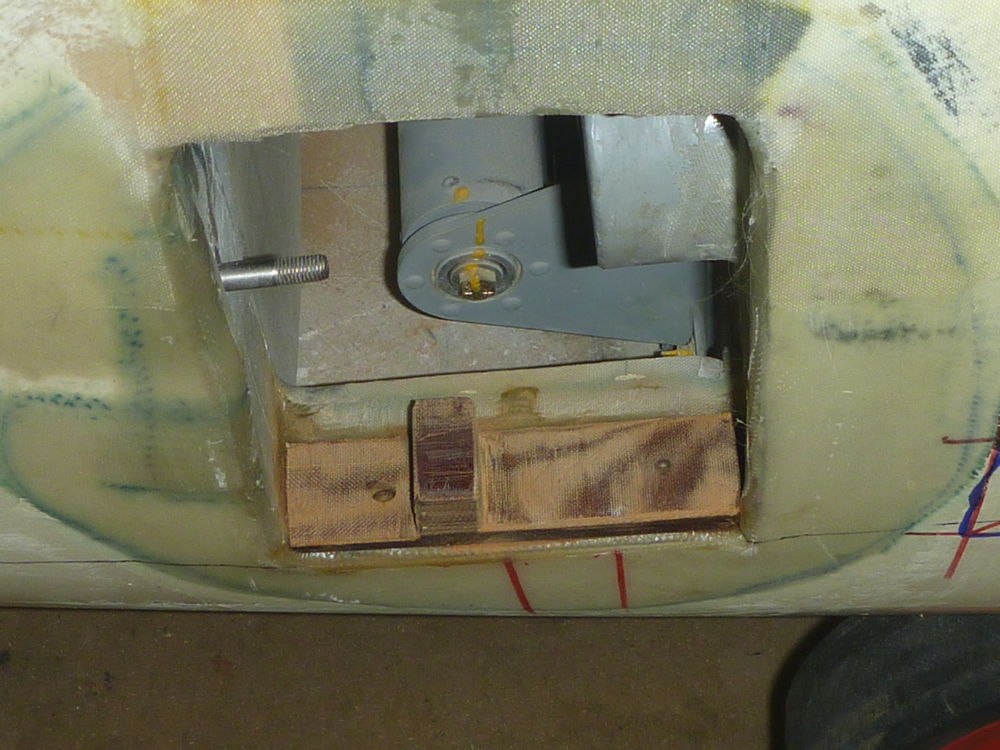

port spar guide: 2014-12-02
Lumix DMC-FT1
A piece of SRBF cut and filed to act as a guide for the port spar during rigging. The spar sits in the cutaway section at the forward (left) end. The aft (right) end is cut away to clear the aileron quick-connect bellcranks.

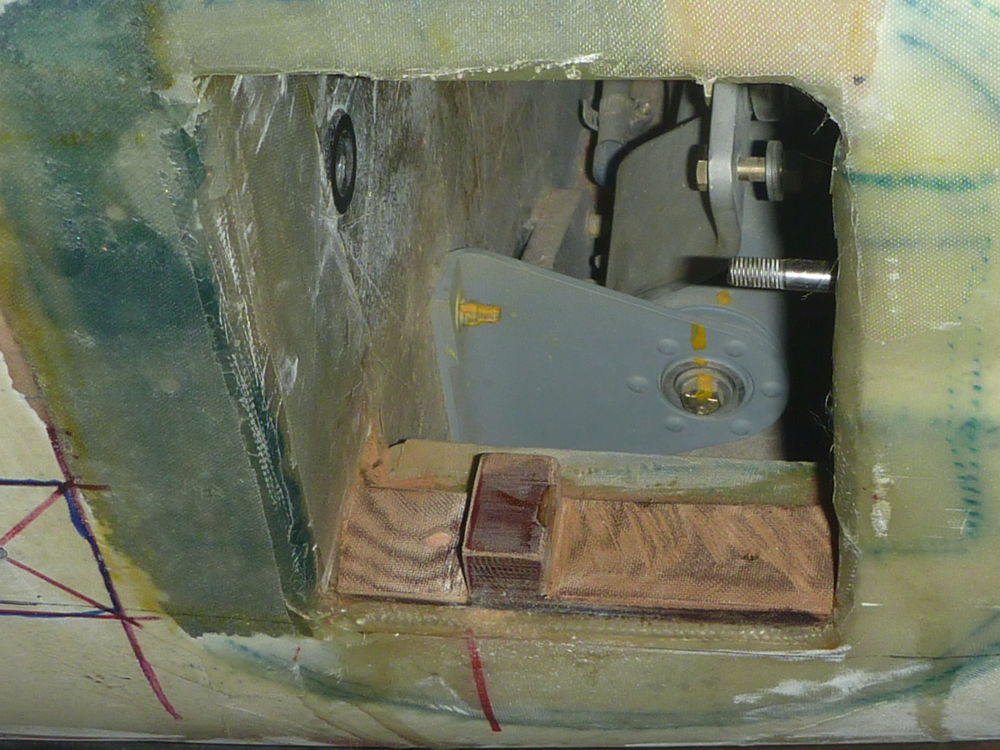

starboard spar guide: 2014-12-02
Lumix DMC-FT1
A piece of SRBF cut and filed to act as a guide for the starboard spar during rigging. The spar sits in the cutaway section at the forward (right) end. The aft (left) end is cut away to clear the aileron quick-connect bellcranks.
