rudder shaft seal fixings

starboard rudder shaft seal fixings

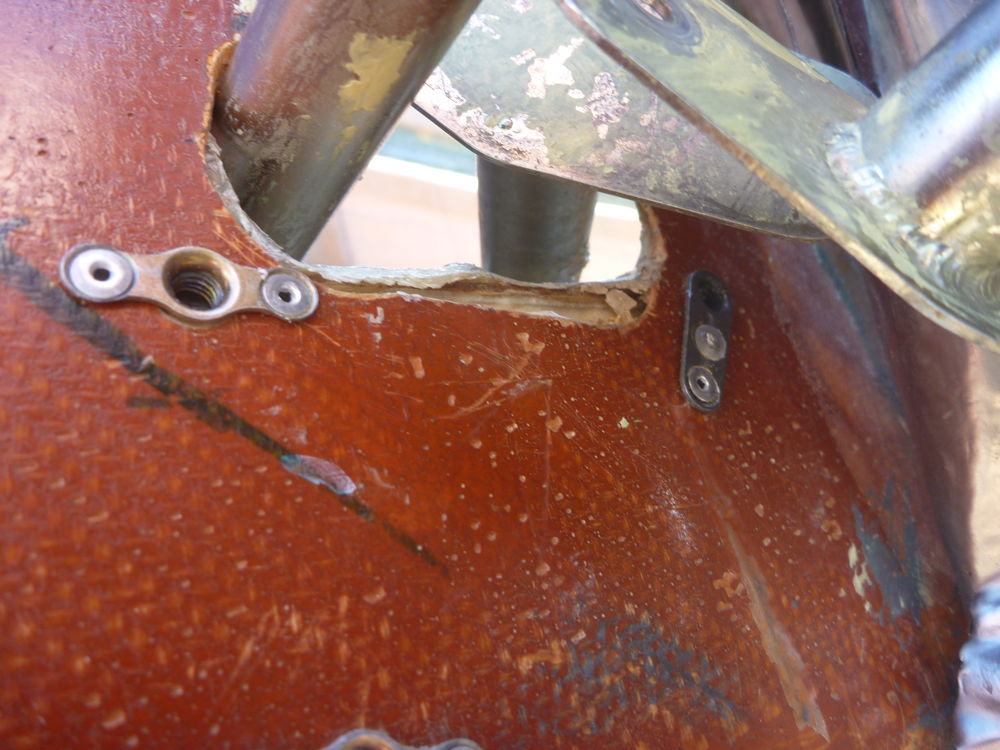

starboard rudder shaft seal fixings: 2019-08-26 Panasonic DMC-FT1

The inboard (tunnel) face of the starboard footwell, showing the lower fixings for the rudder shaft seal. The lower anchor nuts are fixed to the tunnel face of the footwell because those screws go into blind holes, below the level of the footrest. The aft nut is a single-lug type, needed because rivet gun access is restricted by the landing gear frame.
