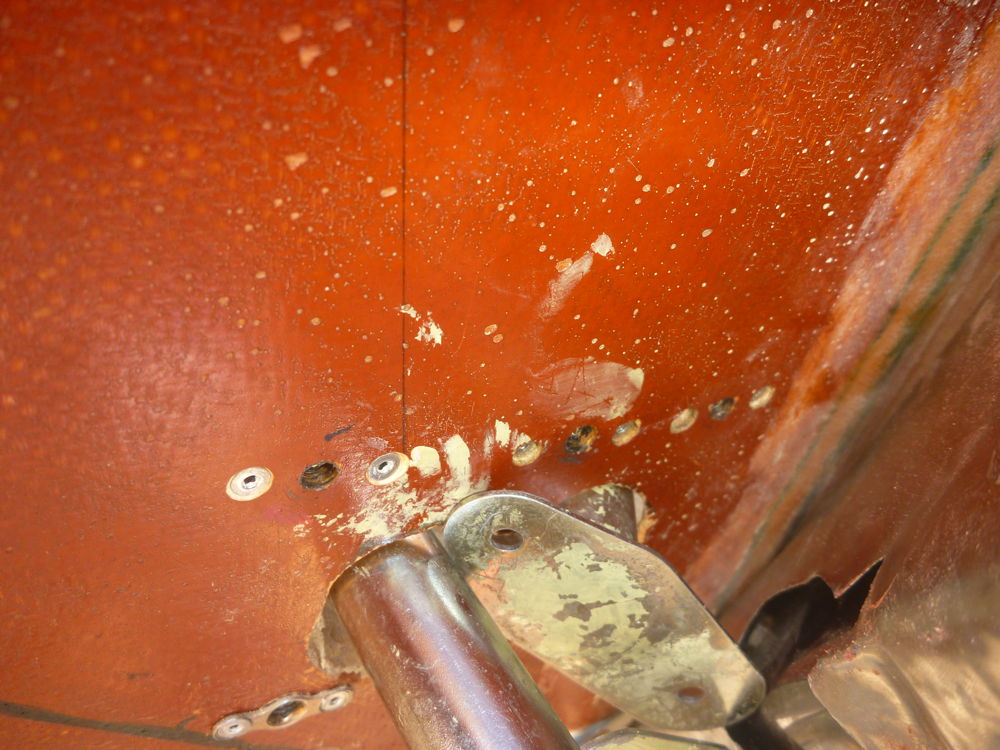

starboard rudder shaft seal fixings: 2019-08-26 Panasonic DMC-FT1
The inboard (tunnel) face of the starboard footwell, showing the fixings for the rudder shaft seal. The forward upper anchor nut is fixed ith rivets as usual, but the other two upper ones are fixed with stainless-steel CSK socket screws (M2.5 x 10). The lower anchor nuts (only one visible here) are fixed to the tunnel face of the footwell because those screws go into blind holes, below the level of the footrest.
|
