trial fit of rudder shaft seals
|
|
trial fit of rudder shaft seals |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest

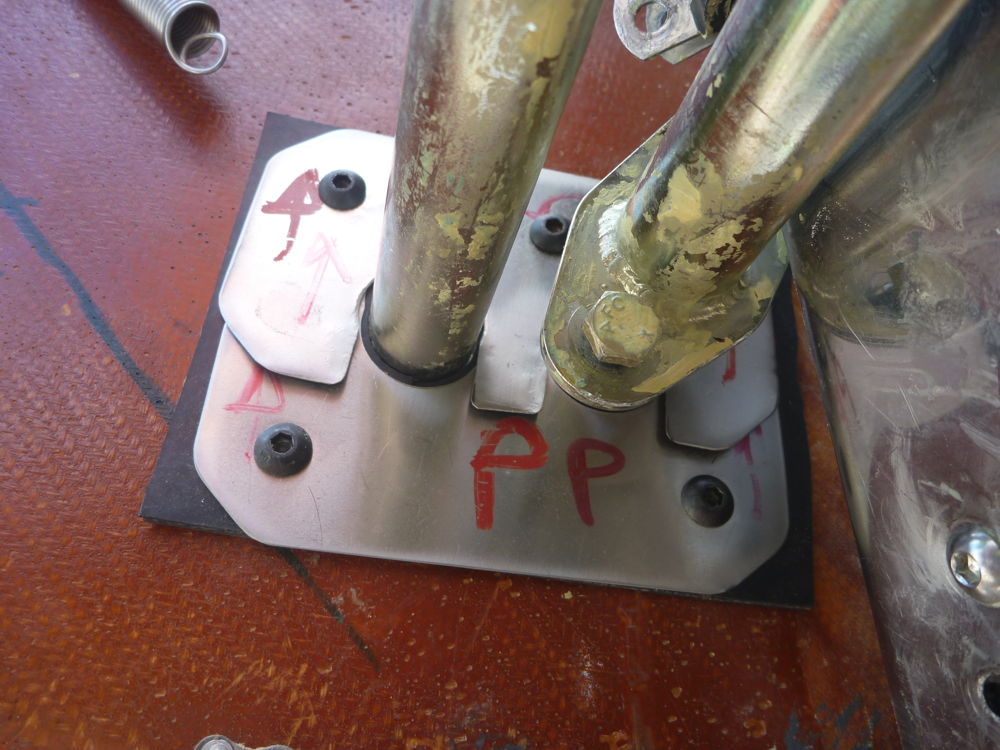

starboard rudder shaft seal: 2019-06-22 Panasonic DMC-FT1
Despite my careful labelling of the parts for the rudder shaft seals, I managed to fit them the wrong way round! So although the parts are labelled P, this is the inner face of the starboard footwell. The differences in dimension were only 0.3mm or less, which explains the slight amount of fettling I had to do on the stainless parts. The seals are held in place with temporary screws here.

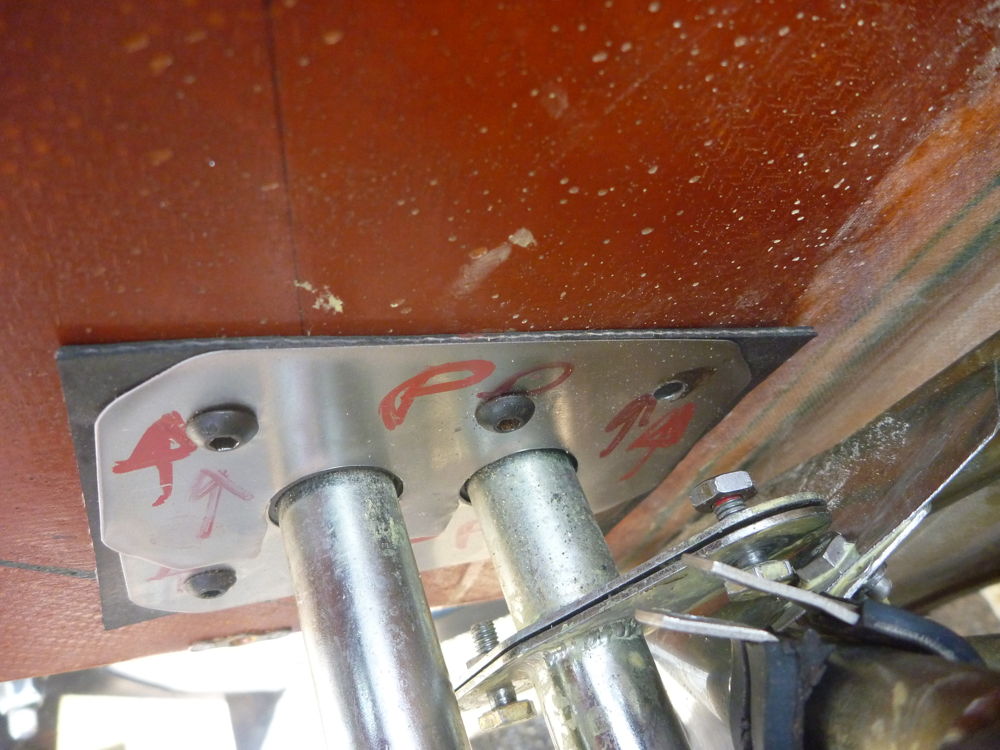

starboard rudder shaft seal: 2019-06-22 Panasonic DMC-FT1
Although the parts are labelled P, this is the inner face of the starboard footwell. The seals are held in place with temporary screws here.

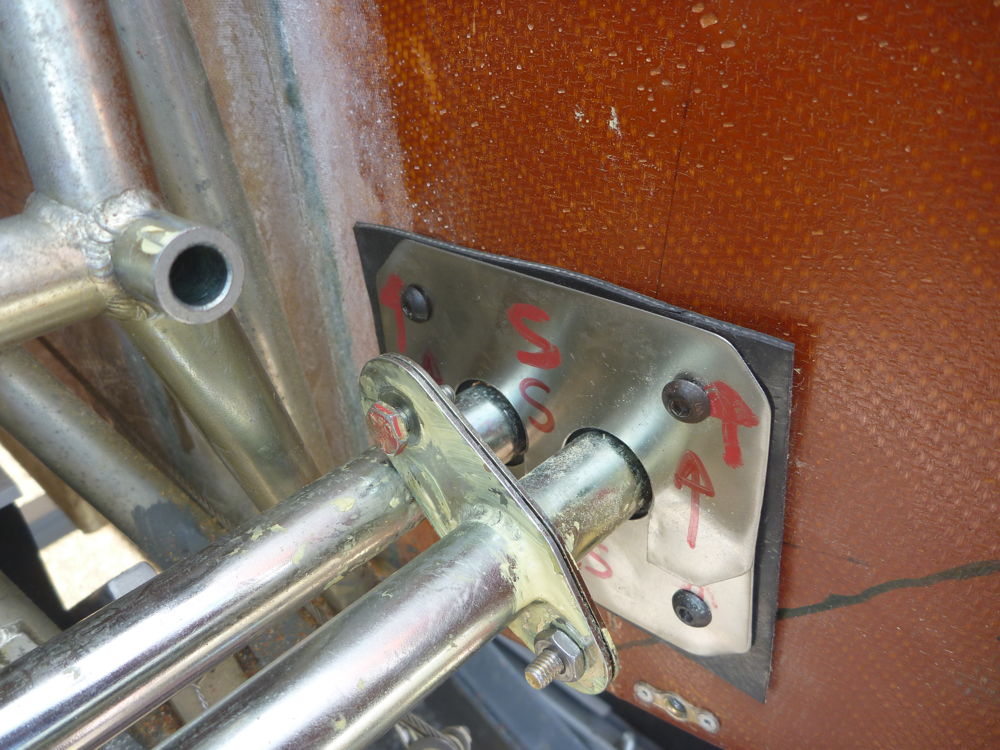

port rudder shaft seal: 2019-06-22 Panasonic DMC-FT1
Although the parts are labelled S, this is the inner face of the port footwell. The seals are held in place with temporary screws here.

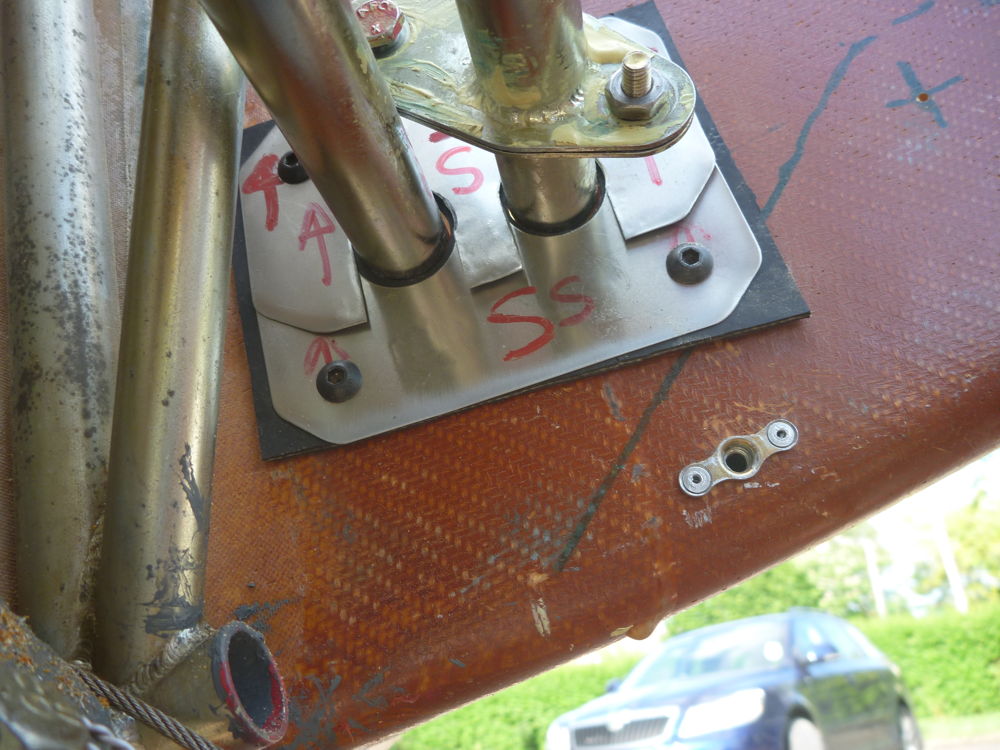

port rudder shaft seal: 2019-06-22 Panasonic DMC-FT1
Although the parts are labelled S, this is the inner face of the port footwell. The seals are held in place with temporary screws here.
