arbour press ram extension: 2008-09-06
Nikon Coolpix 8400

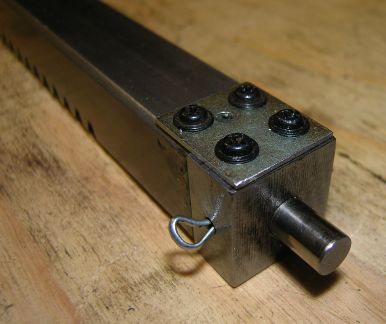

The extended nose for the ram of the arbour press. The circular steel bar is fitted to a hole in the piece of square-section steel attached to the end of the ram, and is prevented from dropping out by a loose-fitting split-pin in a cross-hole.
arbour press ram extension: 2008-09-06
Nikon Coolpix 8400

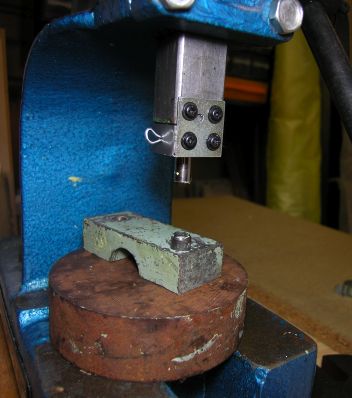

The extended nose in position on the arbour press. The circular billet of steel replaces the standard anvil and provides more flexibility in positioning the workpiece. The rivet set is fitted near the corner of another steel offcut.
