2 pictures on this page - scroll down to see the rest

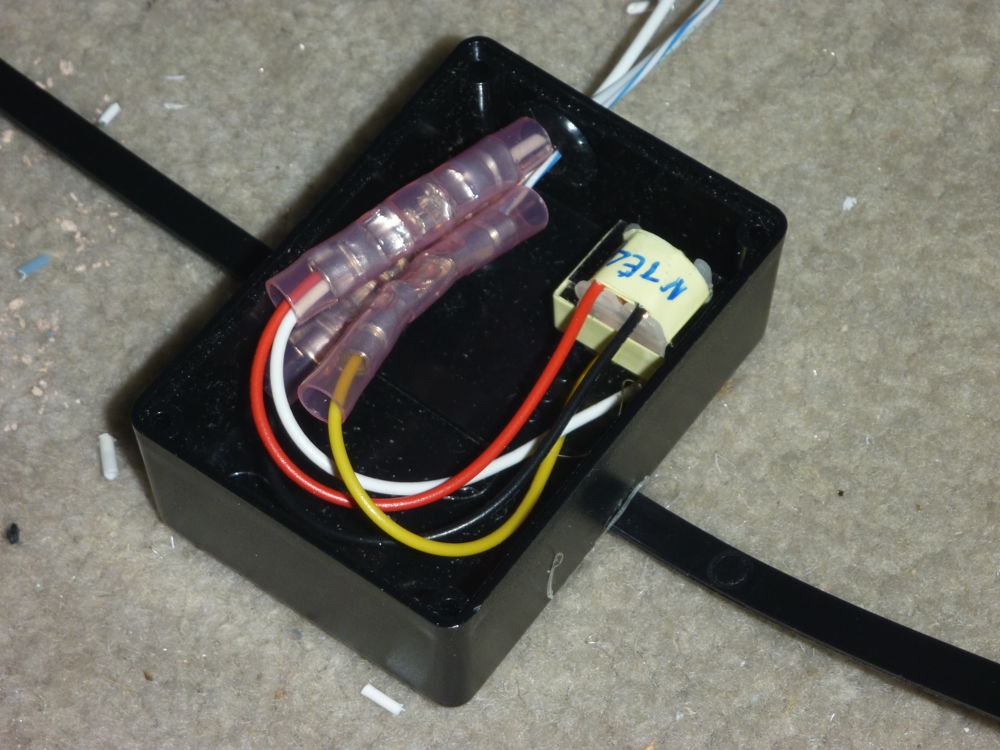

NTE4 transformer in box: 2021-02-24 Panasonic DMC-FT1
The audio transformer NTE4 installed in a small plastic project box and wired up. The transformer is recommended for the connexion of the Garrecht TRX2000 traffic monitor to the Funkwerk ATR833 comm radio auxiliary input. The output of the SmartASS airspeed speaker goes direct to the ATR833 aux input.

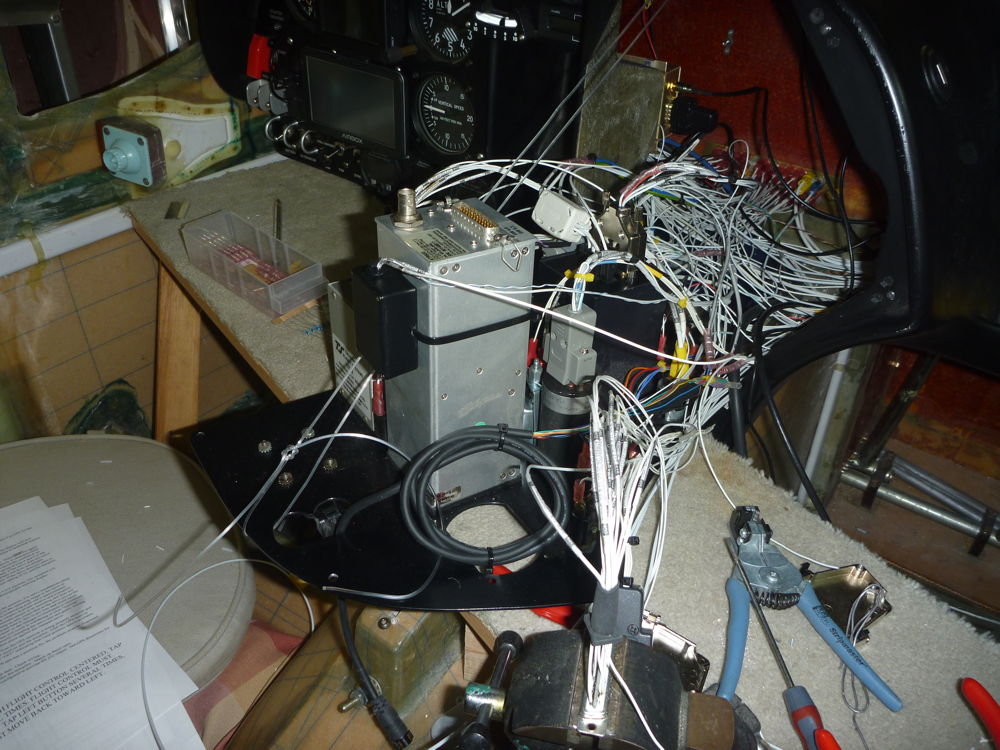

NTE4 transformer box attached to radio case: 2021-02-24 Panasonic DMC-FT1
The NTE4 audio transformer box attached to the ATR833 com radio case with a cable-tie. In the foreground is the D-sub connector for the ATR833 in process of wiring.
