vise for ATR833 connector wiring

wiring comm radio connector

wiring comm radio connector: 2021-02-22 Panasonic DMC-FT1

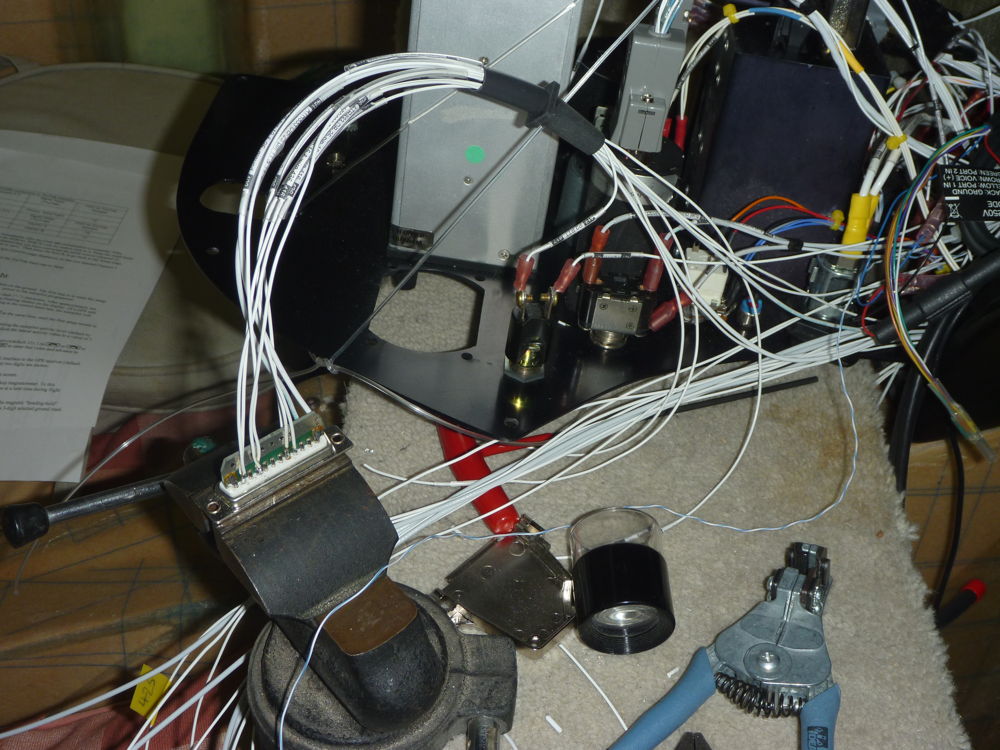

Soldering wires to the D-sub connector for the ATR833 comm radio. Gripping the connector lightly in the little vise makes postioning the wires and soldering quite easy. Note the magnifier for checking pin numbers!
