ATR833 connector wiring
|
|
ATR833 connector wiring |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

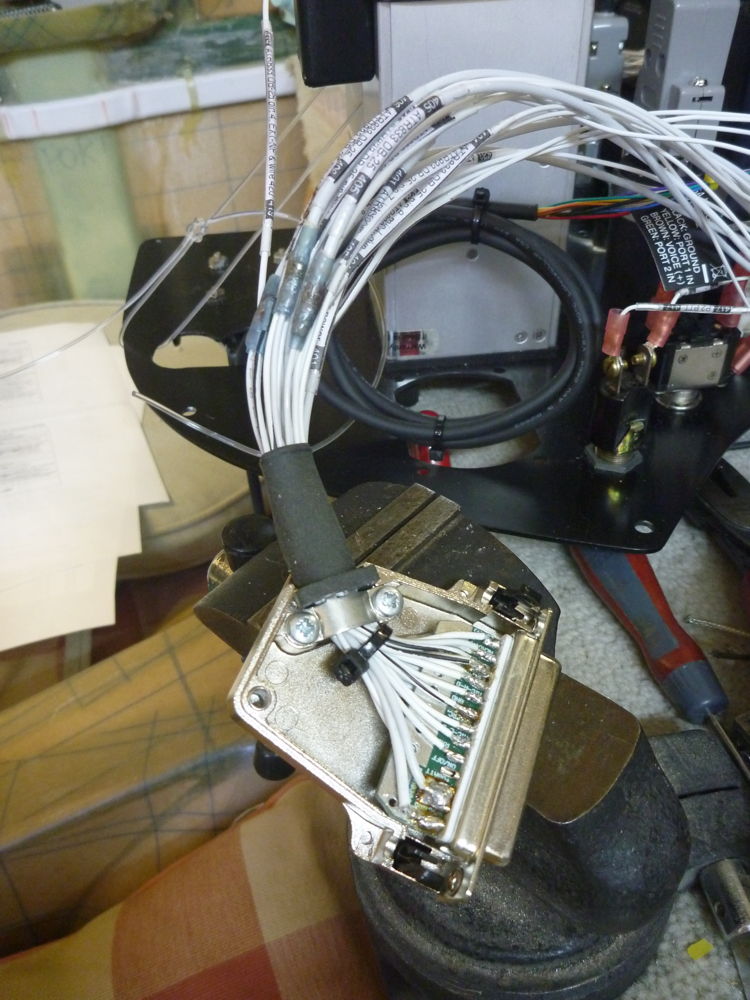

wiring comm radio connector: 2021-02-25 Panasonic DMC-FT1
Preparing to close the hood on the 25-way D-sub connector for the Funkwerk ATR833 comm radio. Note the cable-tie inside the hood, to help prevent any relative movement of wires that could cause fatigue at the solder joints.

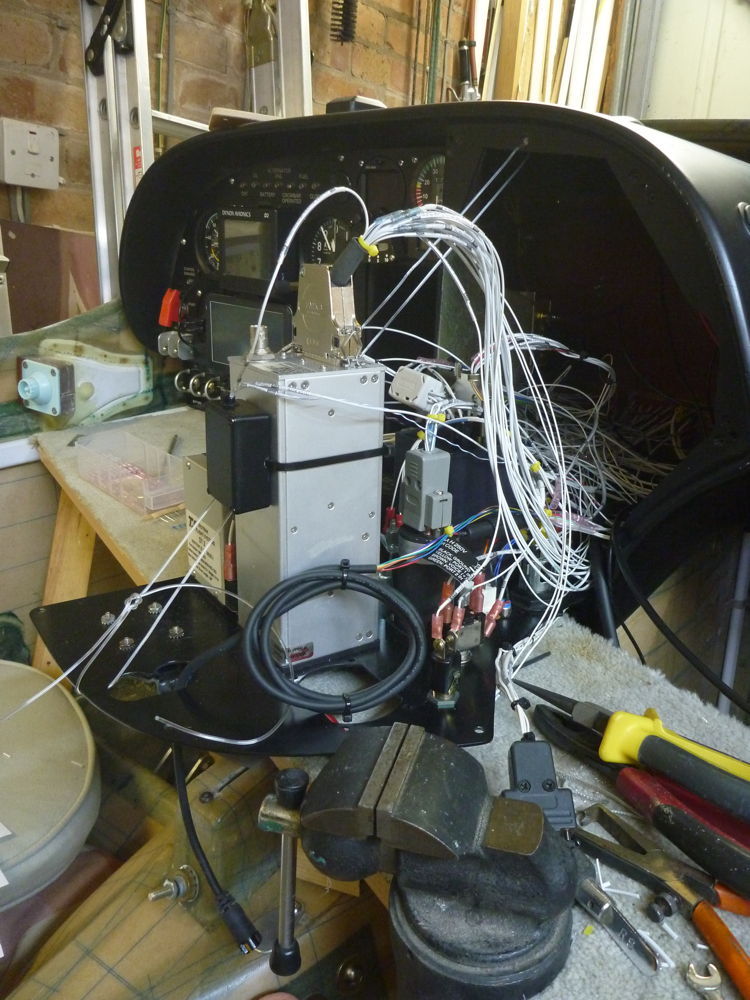

comm radio connected: 2021-02-25 Panasonic DMC-FT1
The 25-way D-sub connector fitted to the Funkwerk ATR833 comm radio. In the foreground is the connector for the Trig TC20 transponder control head. It is absent while having a software update so it can work with the Trig TN72 GPS position source.
