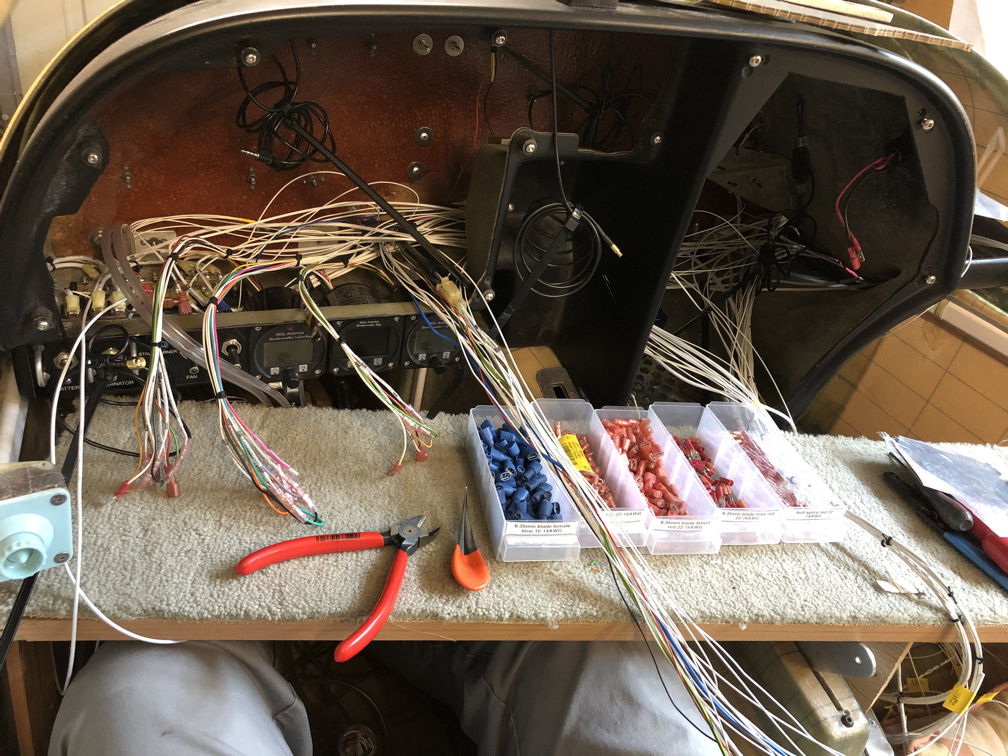

sub-panel instruments wired: 2020-12-31 Apple iPhone 8
Connexions made to all the flying leads from the 3 MGL instruments on the sub-panel (E-3 CHT; TP-3 oil T&P, water T; BAT-1 Volts and Amps).
