Magneto switch terminations
|
 |
Magneto switch terminations
mag switch terminations: 2021-01-14 Panasonic DMC-FT1

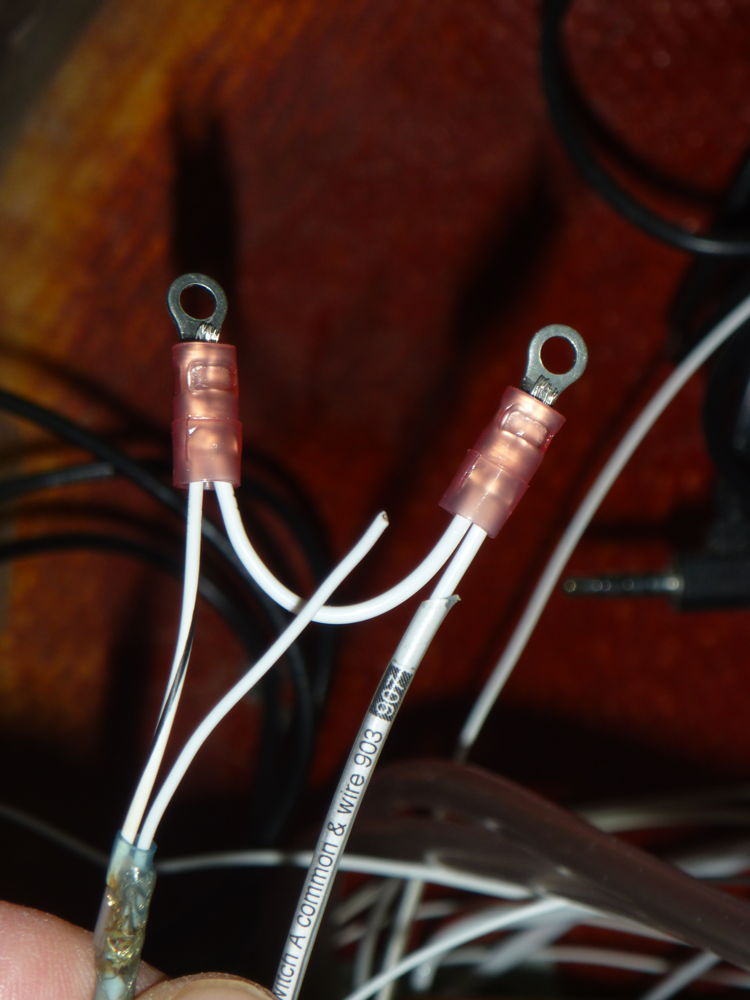

Preparing the terminations on the wiring to the "A" magneto switch. The mag switch is double-pole and I am using both poles in parallel. So wire 907 (on the right) from the common earth point has a short jumper joining its ring terminal to the one for the other switch pole. That is also connected to the pigtail of a solder sleeve on the outer screen of the cable from the magneto (bottom left). The centre core of the screened cable awaits its termination, which will also have a ring terminal and a short jumper to another ring.
|
This page last updated 2021-02-08.
