making replica of LG frame for fitting firewall
|
|
making replica of LG frame for fitting firewall |
|
|
 |
Navigation & Acknowledgements |
5 pictures on this page - scroll down to see the rest
making LG frame replica: 2016-02-27 Panasonic DMC-FT1

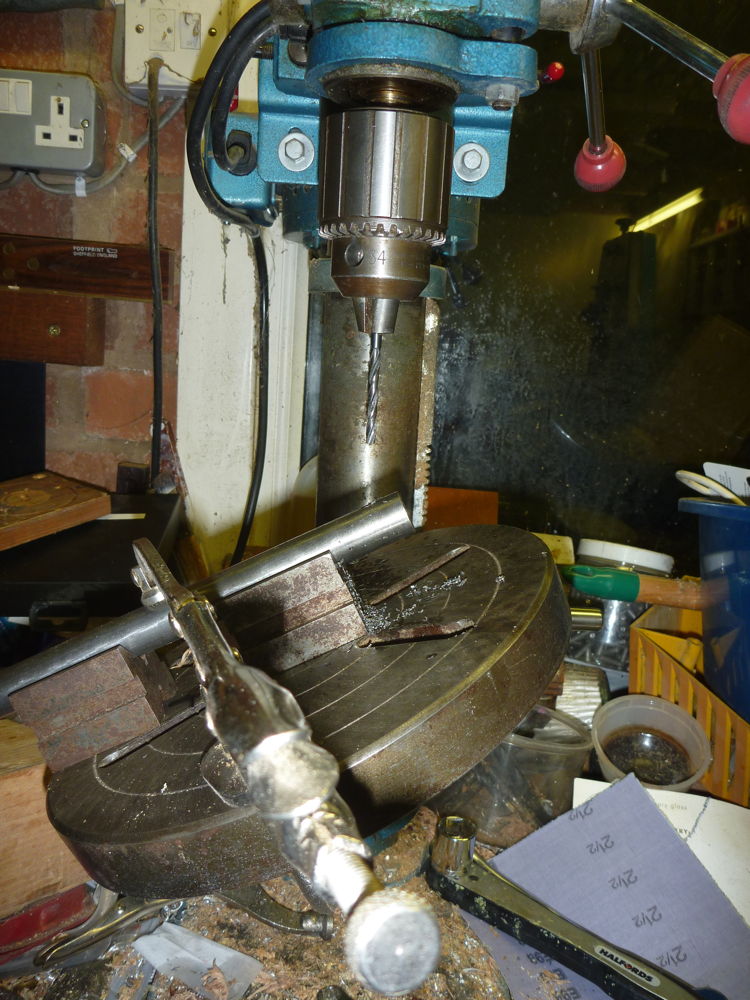

Preparing to drill the 19mm mild steel round bar which will form part of the replica of the starboard lower section of the landing gear frame.
making LG frame replica: 2016-02-27 Panasonic DMC-FT1

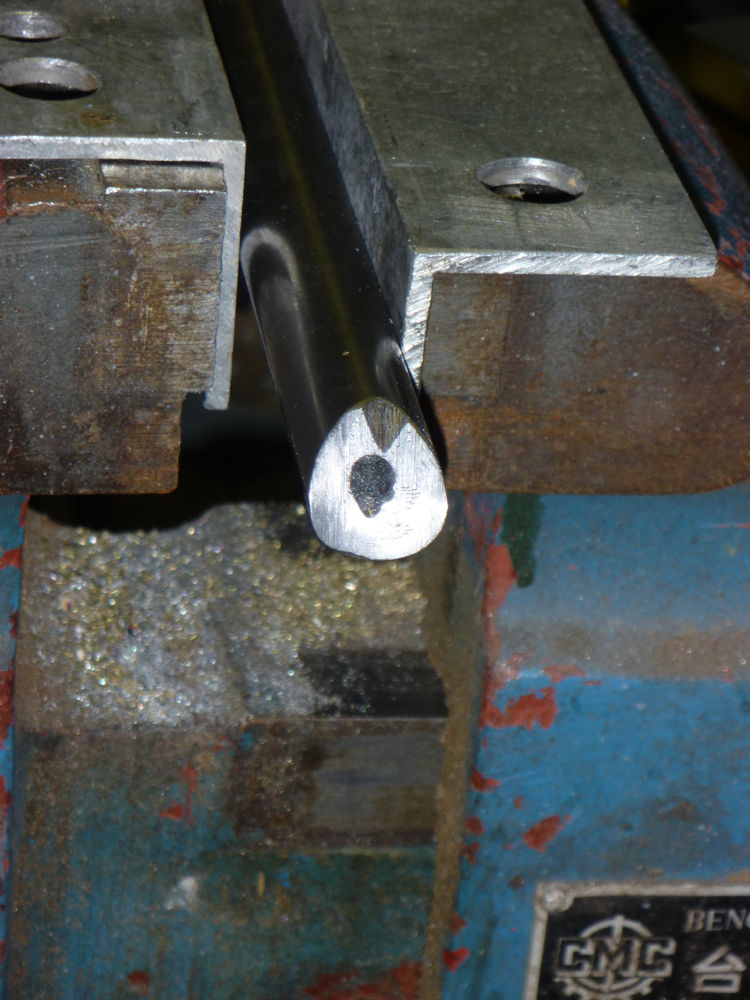

Starting to drill a hole in the centre of the angled fishmouth ground on the 16mm mild steel round bar.
making LG frame replica: 2016-02-27 Panasonic DMC-FT1

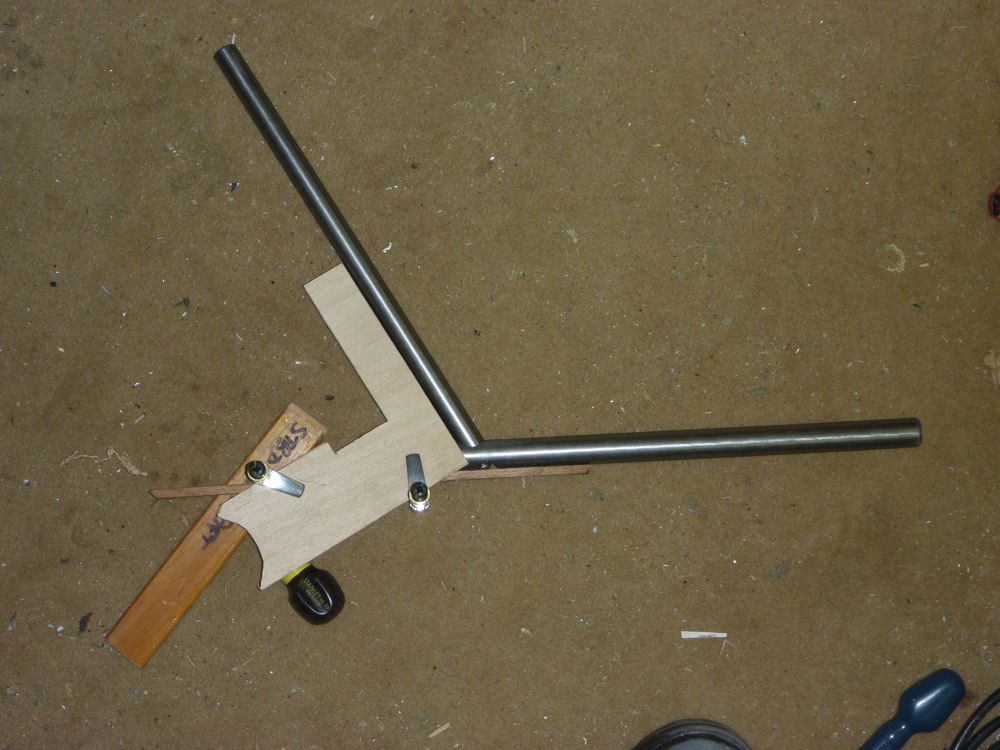

The 16mm and 19mm round steel bars joined with a M6 screw. The wooden template shows that the angle of the bars matches that between the bottom tube and the diagonal tube at the starboard bottom corner of the landing gear frame.
LG frame replica: 2016-03-01 Panasonic DMC-FT1

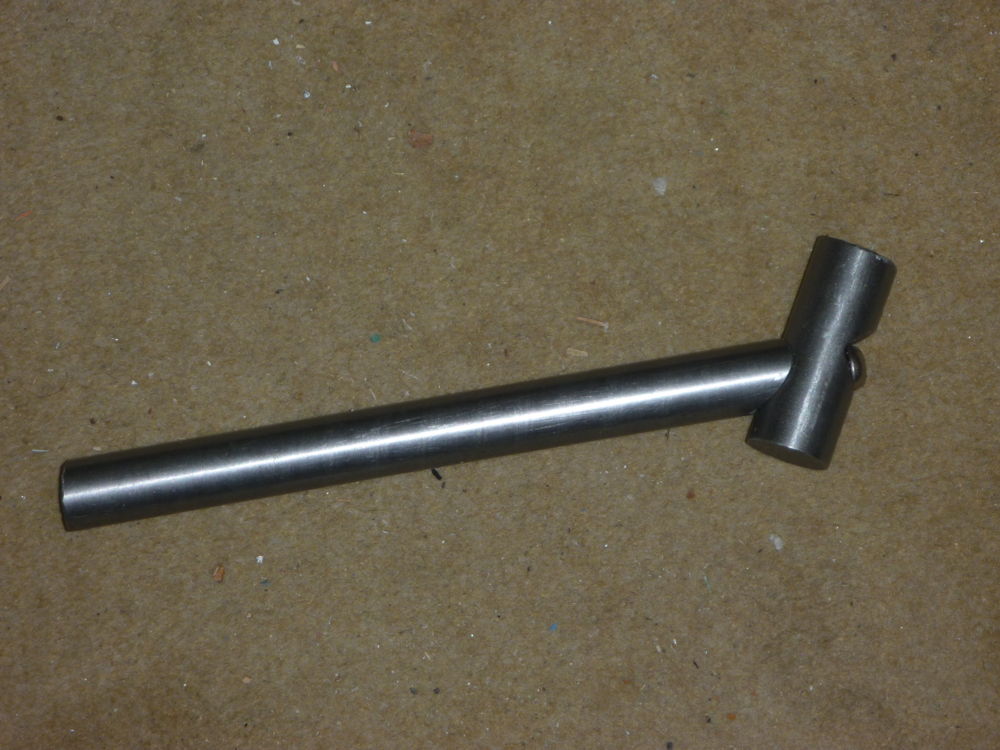

The completed replica of the starboard bottom corner of the landing gear frame.
LG frame replica: 2016-03-01 Panasonic DMC-FT1

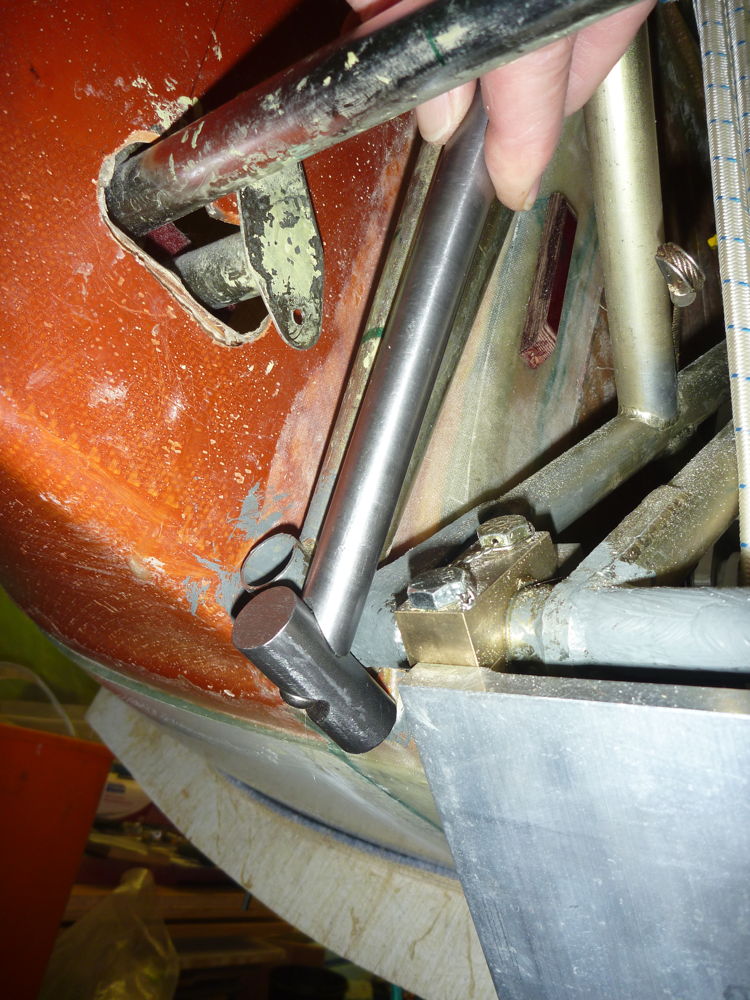

The completed replica in mild steel bar, compared with the starboard bottom corner of the landing gear frame.
