fuel hose routing in tunnel
|
|
fuel hose routing in tunnel |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest
fuel hose in tunnel: 2016-02-27 Panasonic DMC-FT1

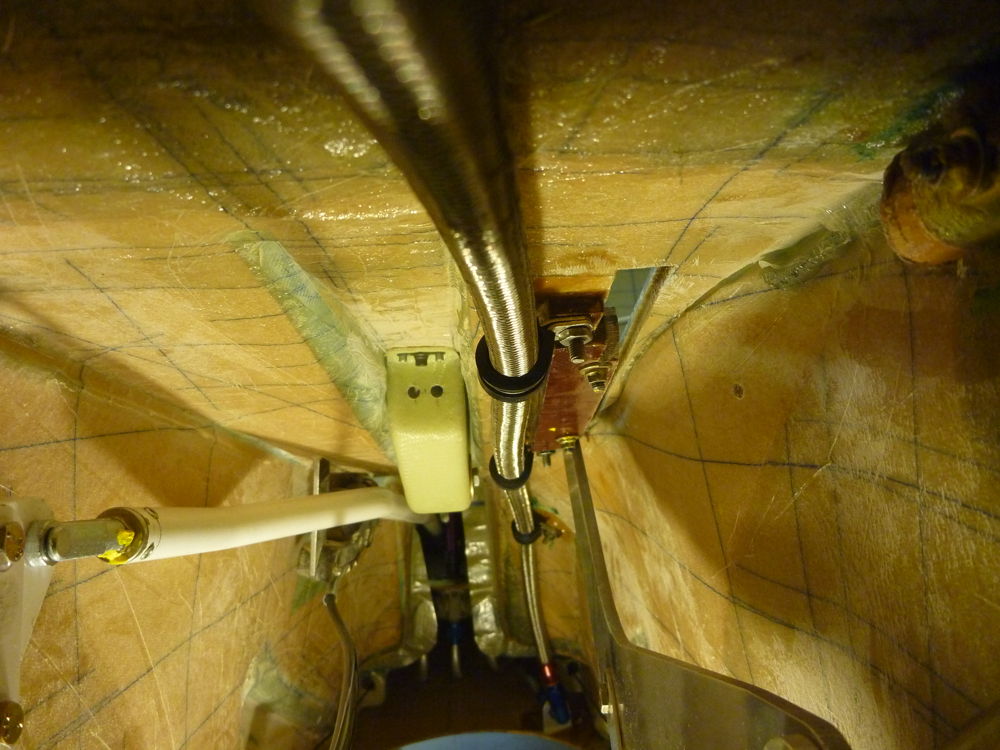

Looking aft through the landing gear mounting frame, showing the stainless-steel braided fuel hose secured to the underside of the tunnel with clips on studs.
fuel hose in tunnel: 2016-02-27 Panasonic DMC-FT1

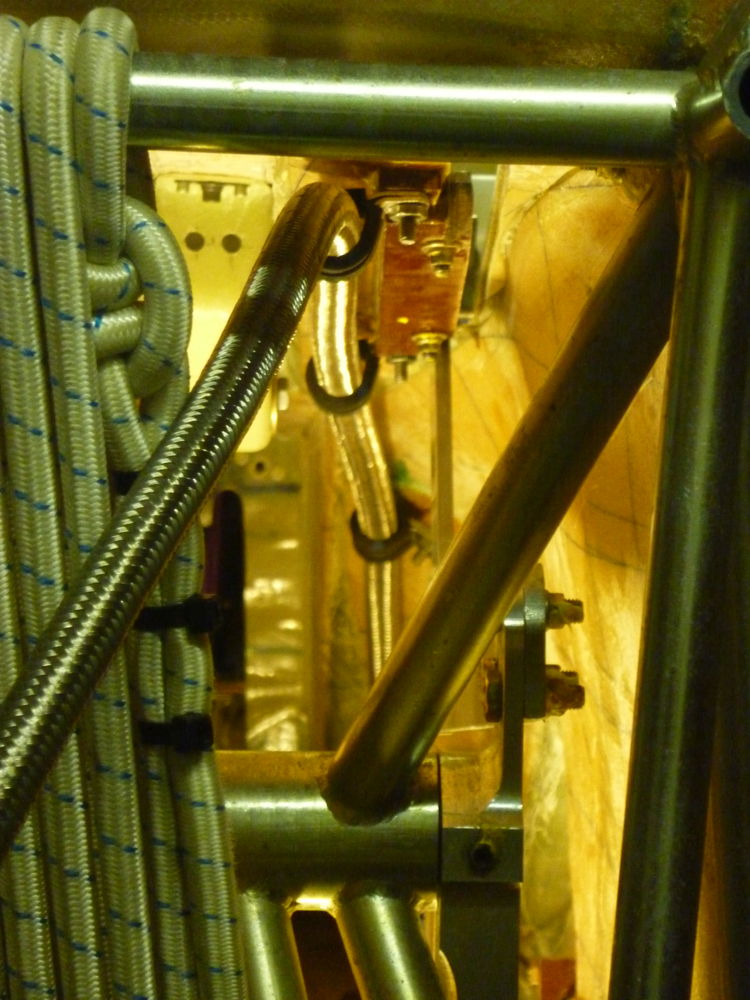

Looking aft through the landing gear mounting frame, showing the stainless-steel braided fuel hose secured to the underside of the tunnel with clips on studs, and the elbow, at the rear of the wheel well, joining the flexible hose to the rigid aluminium pipe
fuel hose in tunnel: 2016-02-27 Panasonic DMC-FT1

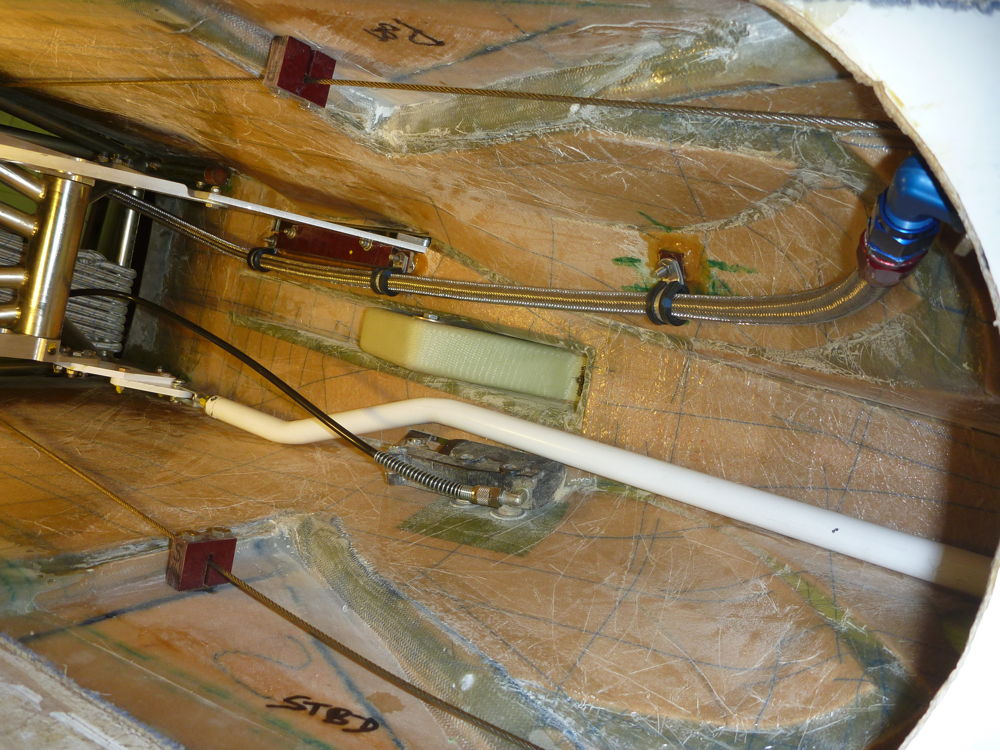

looking up into the wheel well, showing the stainless-steel braided fuel hose secured to the underside of the tunnel with clips on studs, and the elbow, at the rear of the wheel well, joining the flexible hose to the rigid aluminium pipe
