Marking holes for LG01 top tube drilling

3 pictures on this page - scroll down to see the rest

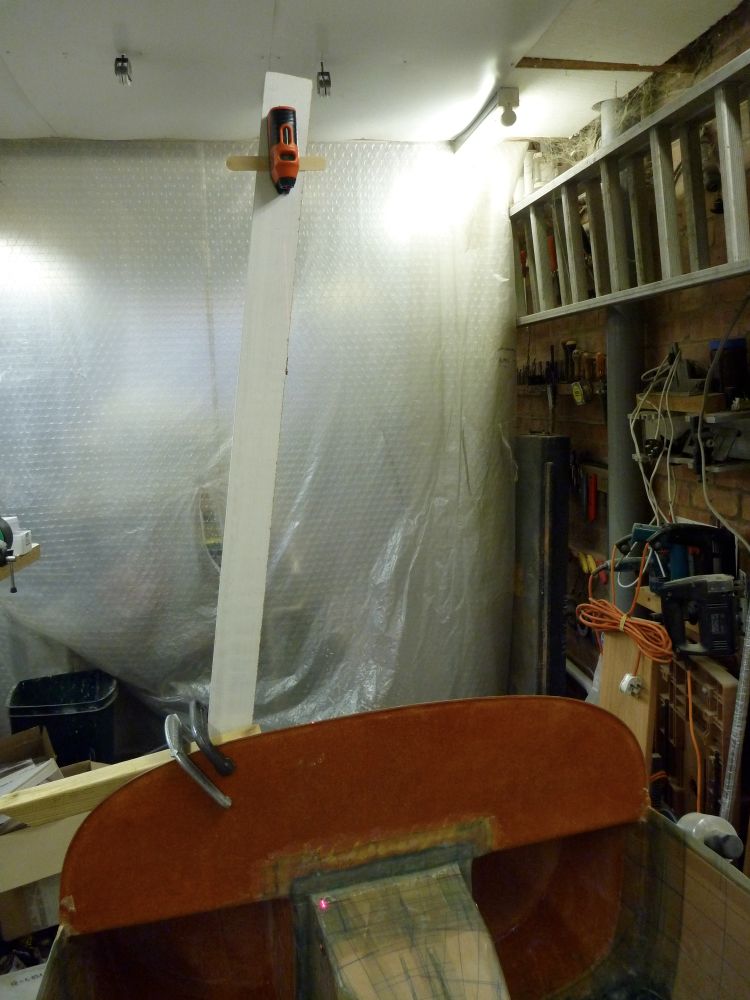

Laser level support

Laser level support: 2013-04-17

Panasonic Lumix DMC-FT1

A spare length of chipboard clamped to the firewall to support a laser level above the LG01 port frame tube. The fuselage was first levelled thwartwise. Then I used a plumb bob to find the correct position of the laser unit vertically above the port top tube of LG01, and a mixing stick to adjust the angle of the laser so that both the intended hole position and the tube forward of the firewall were illuminated by the projected line. This is not quite how the laser level was intended to be used!

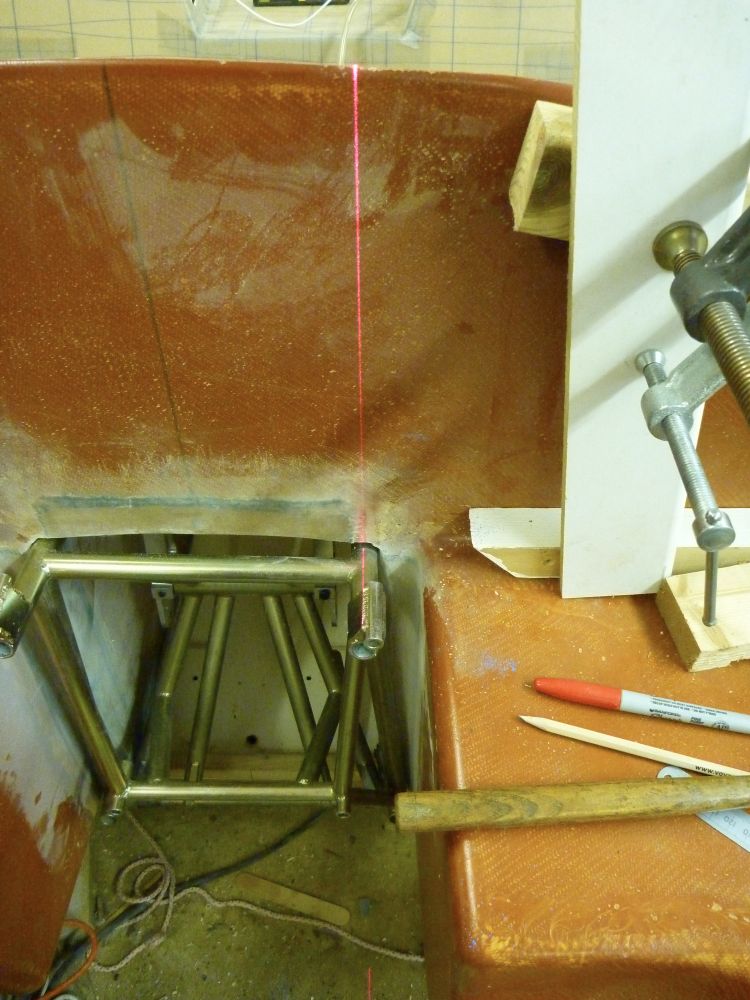

laser line on LG01 tube

laser line on LG01 tube: 2013-04-17

Panasonic Lumix DMC-FT1

Here's the front of the firewall, with the laser line well-aligned along the port top tube of LG01. Also visible are the wood block spacers used to get the angle of the support correct.

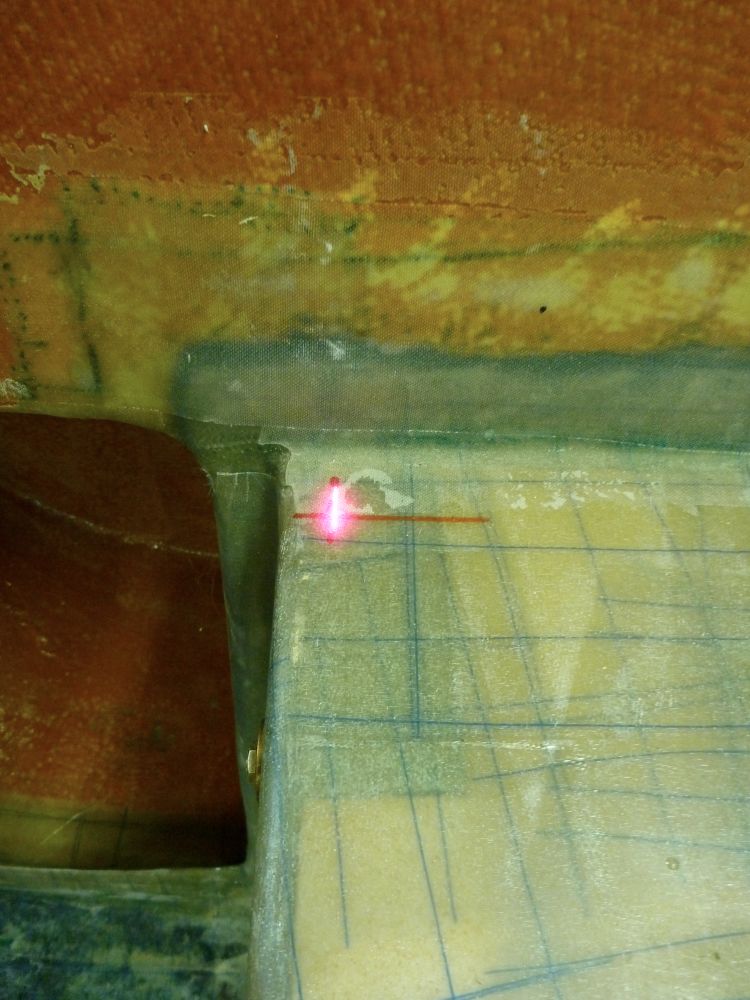

laser line marking

laser line marking: 2013-04-17

Panasonic Lumix DMC-FT1

The line projected on the top of the tunnel by the laser level, providing a clear and accurate guide to marking-out for drilling the bolt-hole into the top tube of LG01.
