Headrest wiring for fuel gauge
|
|
Headrest wiring for fuel gauge |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

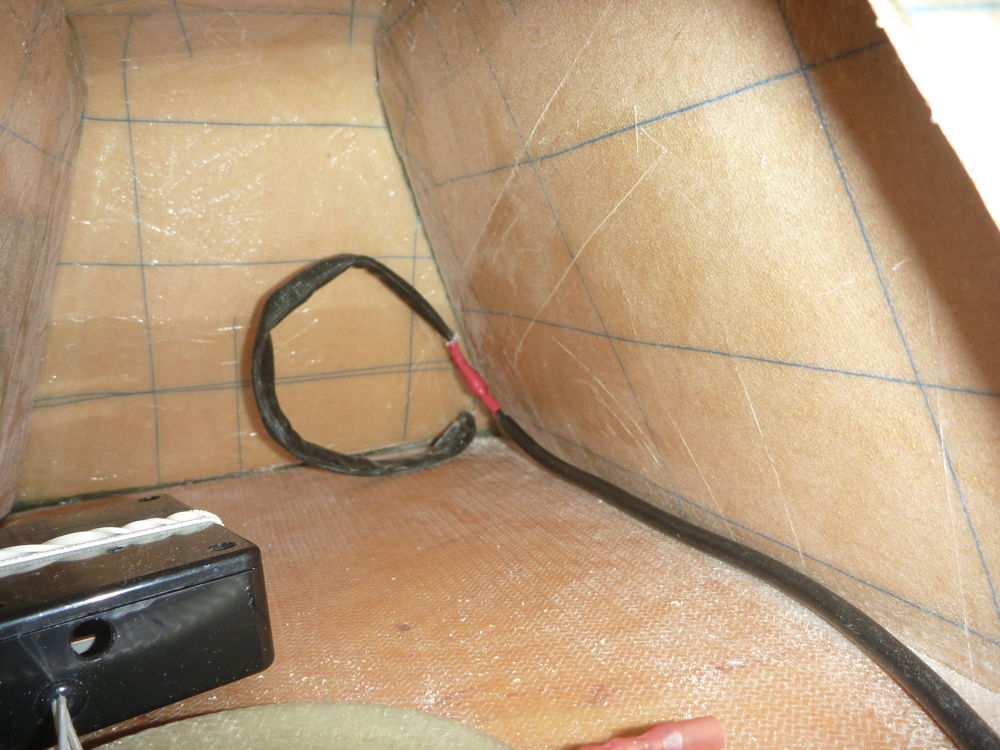

fuel sensor wiring in headrest: 2020-10-27 Panasonic DMC-FT1
The wiring connexion in the port headrest for the analogue fuel level sensor. The black cable in the right foreground is captive to the sensor. The wires which pass out of the headrest and forward through the cockpit side conduit are protected in braided sleeving at this point, and a small service loop is left inside the headrest. The black box at bottom left is the other fuel level sensor (which effectively weighs the fuel) stored here temporarily awaiting installation in the port seatpan.

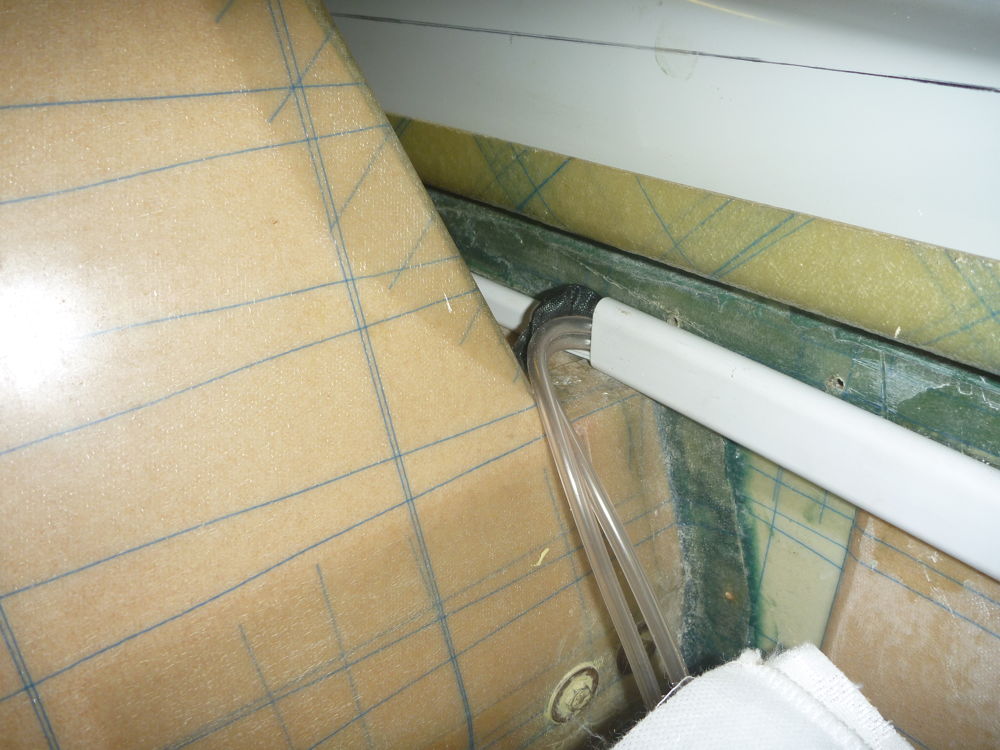

headrest to conduit wiring: 2020-10-27 Panasonic DMC-FT1
The aft end of the port cockpit conduit, showing the black-sleeved fuel level sensor wires coming from the headrest, and the pitot/static tubing coming up from a hole in the port fuselage side.
