Fuel pump and flow sensor wiring
|
 |
Fuel pump and flow sensor wiring
fuel pump and flow sensor wiring: 2020-11-02 Panasonic DMC-FT1

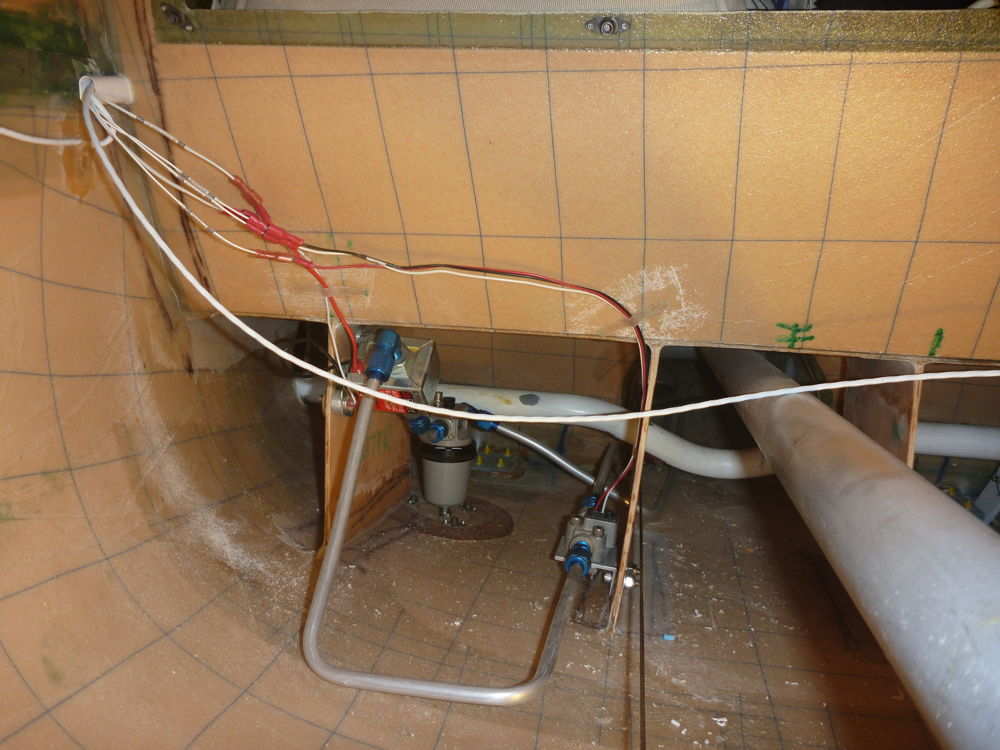

The wiring of the fuel pump and the fuel flow sensor. Later, the wires dangling from the port baggage bay conduit (at top left) will be secured to the back of the D-bulkhead with composite cable clips. The cable running right across the picture is for the port strobe. Here you can also see the fuel pipe running between the pump (at left, with the gascolator behind it) and the fuel flow sensor (centre). The pipe layout is attempting to provide the longest practical straight run into the fuel flow sensor, to avoid turbulence effects.
|
